2.2.1 SIP Loudspeaker Amplifier (AC-Powered) Components

Figure 2-5
Operations Guide
shows the components of the SIP Loudspeaker Amplifier (AC-Powered).

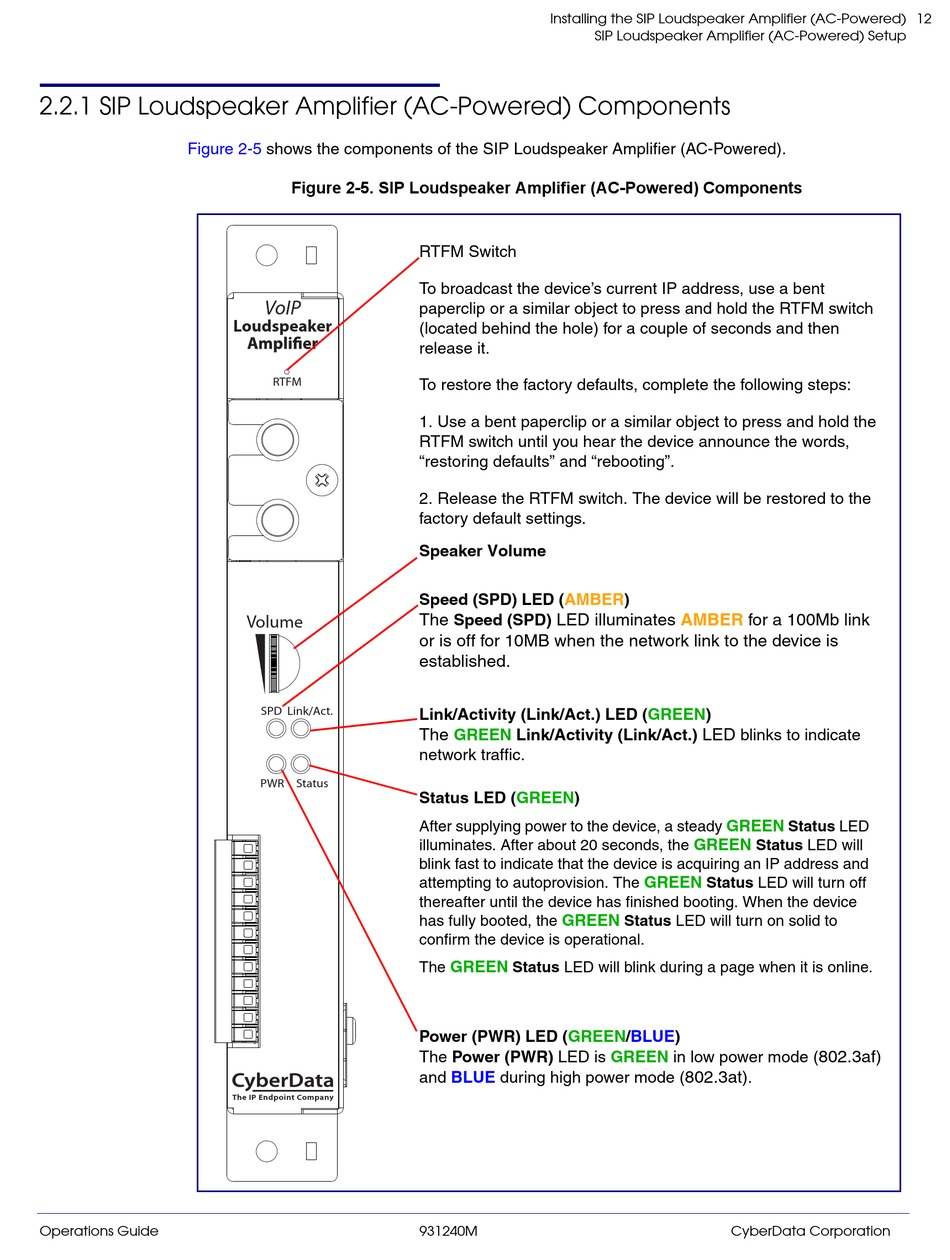

Figure 2-5. SIP Loudspeaker Amplifier (AC-Powered) Components
Loudspeaker
RTFM
Volume
SPD Link/Act.
PWR Status
The IP Endpoint Company
Installing the SIP Loudspeaker Amplifier (AC-Powered)
SIP Loudspeaker Amplifier (AC-Powered) Setup
RTFM Switch
To broadcast the device's current IP address, use a bent
paperclip or a similar object to press and hold the RTFM switch
(located behind the hole) for a couple of seconds and then
release it.
To restore the factory defaults, complete the following steps:
1. Use a bent paperclip or a similar object to press and hold the
RTFM switch until you hear the device announce the words,
"restoring defaults" and "rebooting".
2. Release the RTFM switch. The device will be restored to the
factory default settings.
Speaker Volume
Speed (SPD) LED (AMBER)
The Speed (SPD) LED illuminates
or is off for 10MB when the network link to the device is 
established.
Link/Activity (Link/Act.) LED (GREEN) 
The GREEN Link/Activity (Link/Act.)
network traffic.
Status LED (GREEN)
After supplying power to the device, a steady
illuminates. After about 20 seconds, the
blink fast to indicate that the device is acquiring an IP address and
attempting to autoprovision. The
thereafter until the device has finished booting. When the device
has fully booted, the GREEN
confirm the device is operational.
GREEN
The Status LED will blink during a page when it is online.
Power (PWR) LED (GREEN/BLUE)
The Power (PWR) LED is
and BLUE during high power mode (
931240M
for a 100Mb link 
AMBER
LED blinks to indicate
GREEN Status LED
GREEN Status LED will
GREEN Status LED will turn off
Status LED will turn on solid to
GREEN in low power mode (
802.3at) .
