2.2.2 Loudspeaker Amplifier NEMA Box Components

Figure 2-6
Operations Guide
shows all of the NEMA box components of the loudspeaker amplifier.

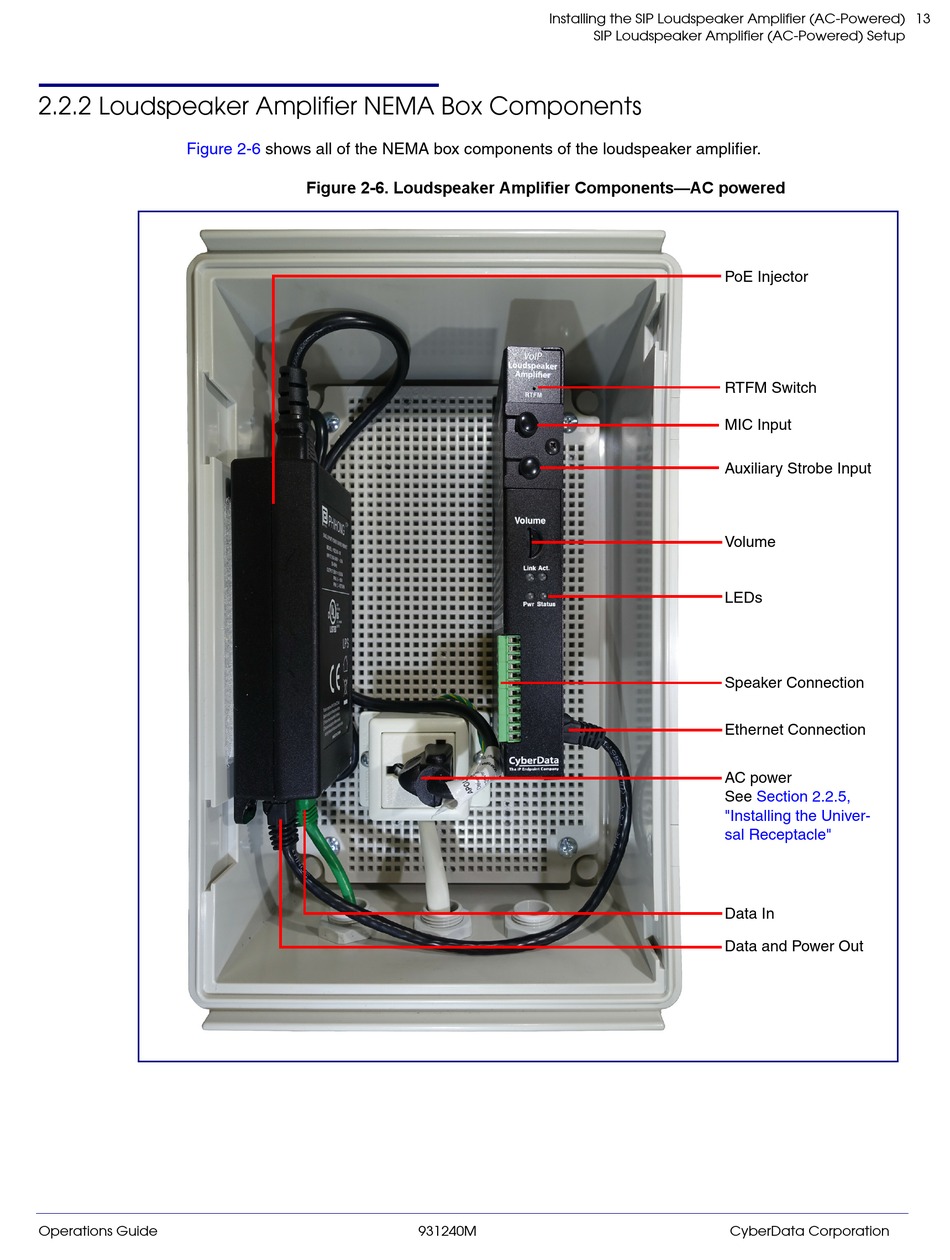

Figure 2-6. Loudspeaker Amplifier Components—AC powered
931240M
Installing the SIP Loudspeaker Amplifier (AC-Powered)
SIP Loudspeaker Amplifier (AC-Powered) Setup
PoE Injector
RTFM Switch
MIC Input
Auxiliary Strobe Input
Volume
LEDs
Speaker Connection
Ethernet Connection
AC power
See
"Installing the Univer-
sal Receptacle"
Data In
Data and Power Out
Section 2.2.5,
