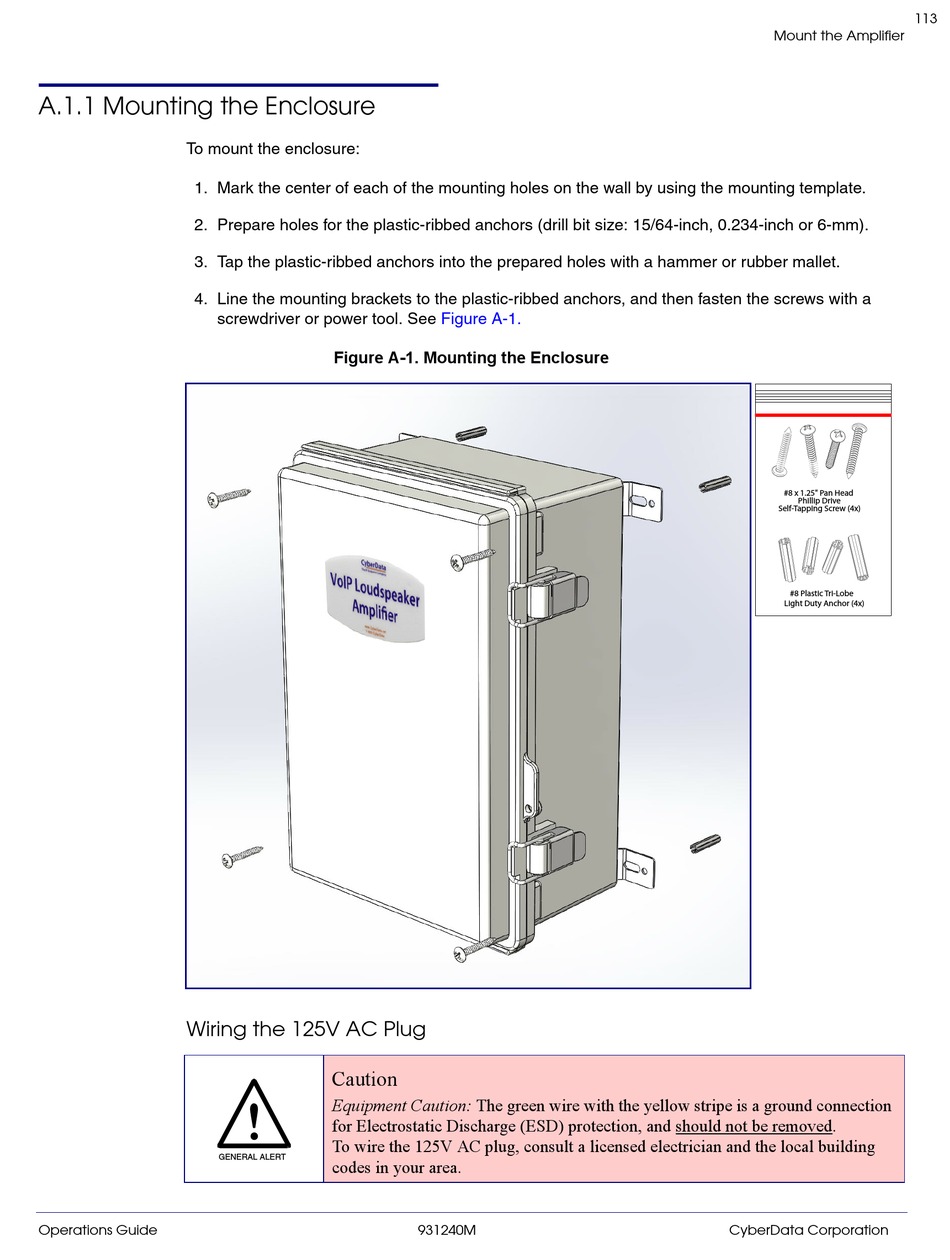

A.1.1 Mounting the Enclosure
To mount the enclosure:
1. Mark the center of each of the mounting holes on the wall by using the mounting template.
2. Prepare holes for the plastic-ribbed anchors (drill bit size: 15/64-inch, 0.234-inch or 6-mm).
3. Tap the plastic-ribbed anchors into the prepared holes with a hammer or rubber mallet.
4. Line the mounting brackets to the plastic-ribbed anchors, and then fasten the screws with a
Wiring the 125V AC Plug
Operations Guide
screwdriver or power tool. See
Figure A-1. Mounting the Enclosure
Caution
Equipment Caution: The green wire with the yellow stripe is a ground connection
for Electrostatic Discharge (ESD) protection, and should not be removed. 
To wire the 125V AC plug, consult a licensed electrician and the local building
GENERAL ALERT
codes in your area.
Figure A-1.
931240M
Mount the Amplifier
#8 x 1.25" Pan Head
Phillip Drive
Self-Tapping Screw (4x)
#8 Plastic Tri-Lobe
Light Duty Anchor (4x)
