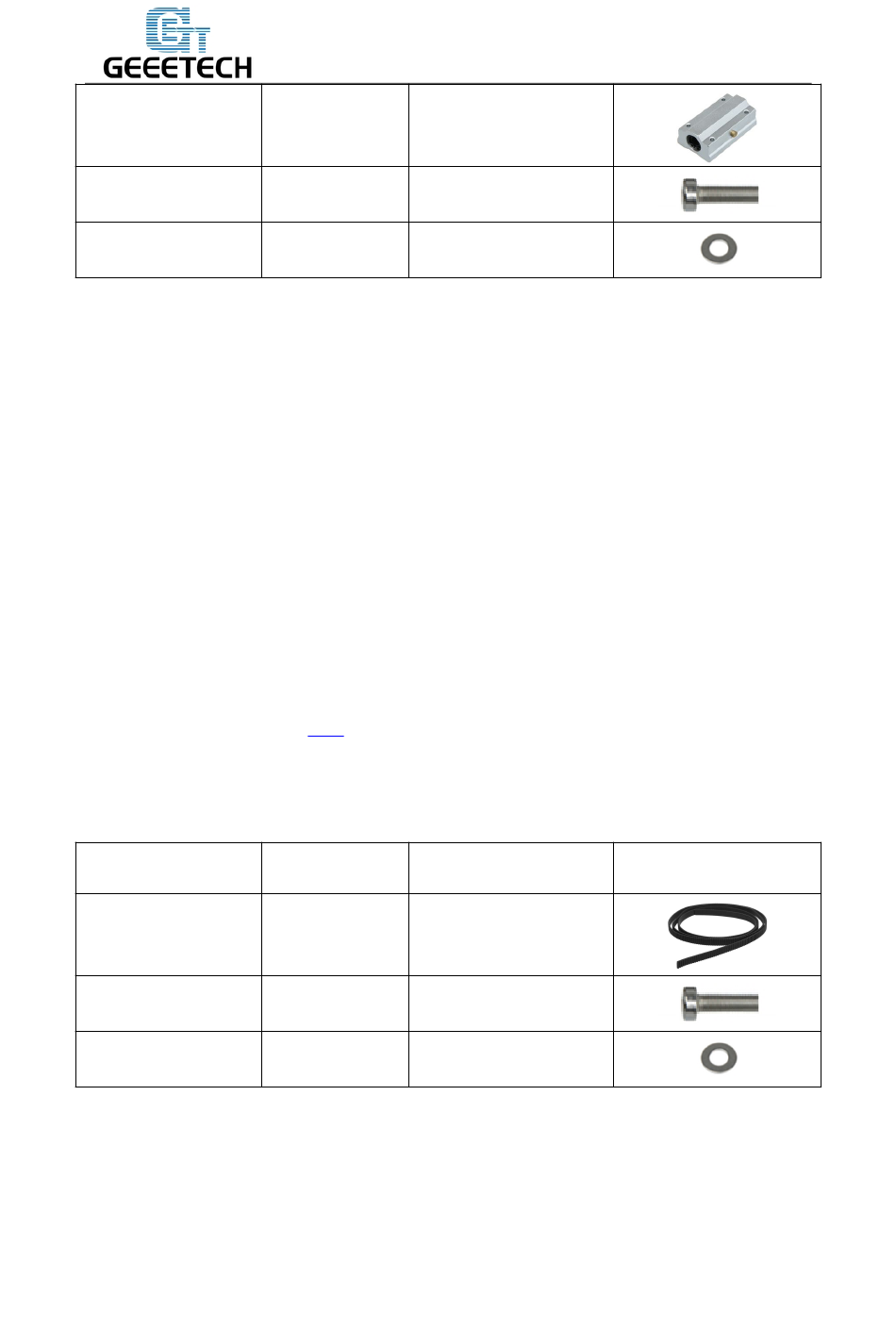

Mount The Y Belt - Geeetech Prusa I3 X Building Instructions

SCS8UU linear
bearing
M3 x12mm screw
M3 washer
Step1. Mount the belt mount at the middle of the building platform support with two
M3 x12mm screw and M3 washer.
Step2. Mount the 4 SCS8UU linear bearings on the building platform support with
two M4x16mm screw and M4 washer.
* Note the direction of the building platform support, you can judge from the
direction of the belt mount, whose direction is corresponding to the Y axis.
You can refer to the video here.

6. Mount the Y belt

Part name
Timing belt
M3 x8mm screw
M3 washer
Step1. Punch a M2.5 hole on one end of the belt（the hole can be as the diameter of
the M2.5 screw , leave enough margin ）
Step2. Fix the belt on one side of the belt -mount with a M3 x 8 screw and washer.
Shenzhen GETECH CO.,LTD
GEEETECH
No.36
No.22
No.7
Part ID Required number
No.39
No.21
No.7
4
2
2
1
2
2
pic
