Summary of Contents for Geeetech I3 Pro C

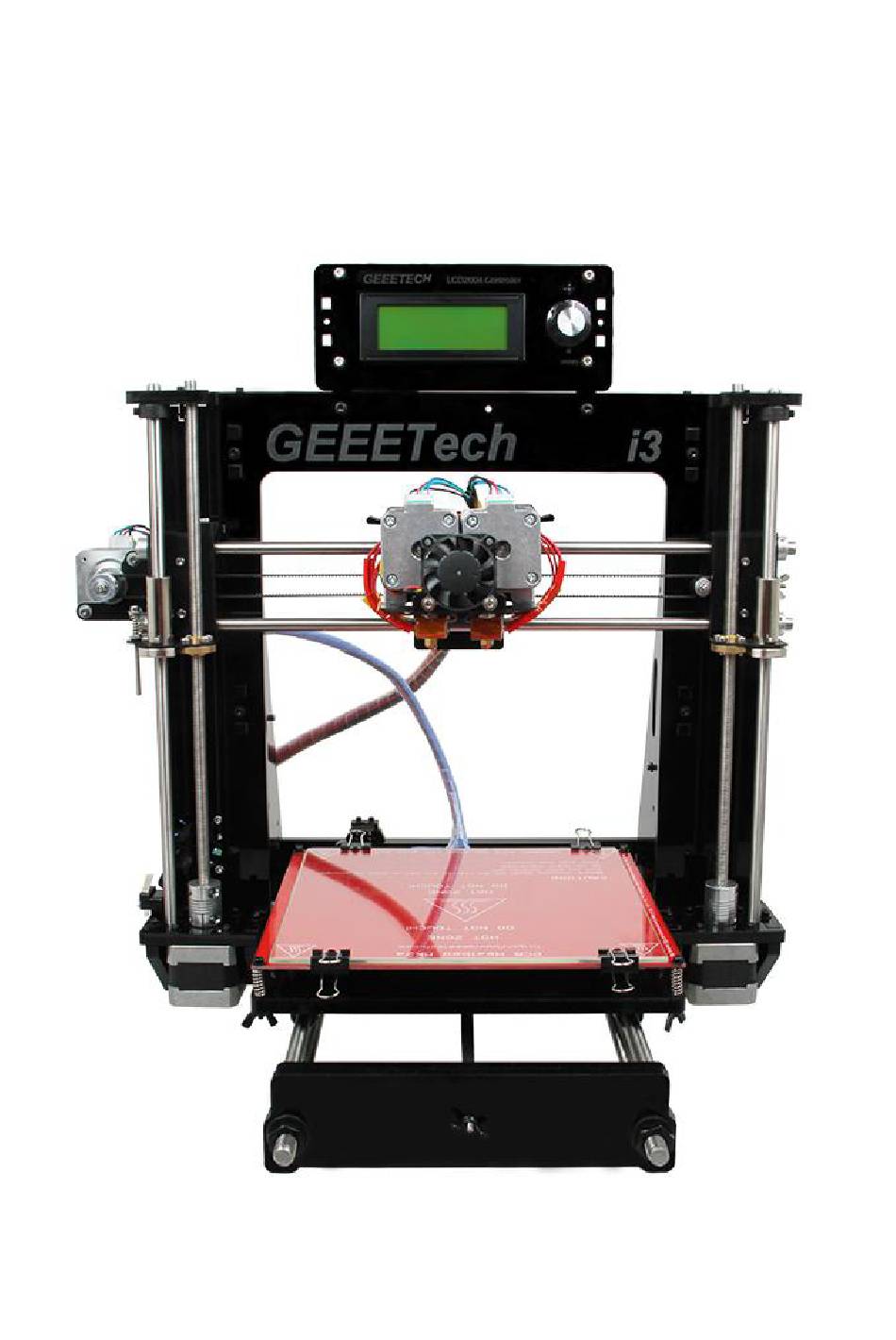

- Page 1 Acrylic Geeetech I3 Pro C 3D Printer...
-
Page 2: Copyright Declaration
Copyright Declaration The copyright of this manual belongs to the Shenzhen GETECH CO., LTD. (hereinafter referred to as the "Geeetech"), and all rights reserved. No part of this specification should be reproduced or extracted in any forms or means without the prior written consent of Geeetech by any company and individuals. -
Page 3: Safety Instructions
We have provided detailed instructions to help you assemble it easily, please download at geeetech.com. However ultimately we cannot be responsible for your health and safety whilst building or operating the printer, with that in mind be sure you are confident with what you are doing prior to commencing with building or buying. -
Page 4: Package List
INTRODUCTION: This Acrylic I3 Pro 3D printer is designed and manufactured by Shenzhen Getech Co., Ltd based on the Reprap Prusa I3, Geeetech I3 features simple assembly, easy debugging and more stable performance. The acrylic structure makes the printer much easier to operate. - Page 5 GEEETECH Frame Geeetech I3 Pro 3D Printer. After you received your package, please check if all the parts listed are included. Also make sure all the components are in good condition and not damaged during shipping. If anything is missing please contact with our customer service straight away, provide us the NO.
- Page 6 GEEETECH M2.5 M2.5 Washers M3 Washers M4 Washers Washers M2.5 Lock nut - 5 -...
- Page 7 GEEETECH Lock nut Wing nut Square nut Φ8 Z-axis nut （tin-bronze） Spring washer Screw locking ring Φ8 Screw M2.5x8 mm M2.5x16 mm Screw Screw M3x6mm Screw M3x8mm Screw M3x10mm - 6 -...
- Page 8 GEEETECH Screw M3x12mm Screw M3x16mm Screw M3x20mm Screw M3x30mm Screw M3x35mm Screw M3x40mm Screw M4x6mm M4x25mm Screw countersunk Bolts head bolt M3x16mm Spring - 7 -...
- Page 9 GEEETECH LM8UU Linear LM8UU Bearings LM8LUU Linear LM8LUU Bearings Linear LMH8LUU Bearing L1=775(Y axis) Timing Belts L1=860mm(X axis) Timing Belts - 8 -...
- Page 10 GEEETECH Bearing metal plate holder Aluminum Belt mount plate 5-8mm Couplings 20 tooth Pulleys d5mm Driving wheel Ball bearing MR84zz - 9 -...
- Page 11 GEEETECH With Aircraft Spacer type end Dovetail clamp 9*10*5mm Heat sink Sticker Belt bracket PI3F-B06-Car Endstop trigger - 10 -...
- Page 12 GEEETECH Knob For LCD 40x40x10mm DuPont 3-Pin cable Male-Female USB Cord blue / red / End stop black - 11 -...
- Page 13 GEEETECH 3*0.75 Square 3D Power mm Switch Cable Line Power Cable Control board power input With heating wire and Heat bed set Thermo- wire 216mmx216m Borosilicate mx3mm glass - 12 -...
- Page 14 GEEETECH Input: 115V/2.2A 230V/1.1A Power Output： supply DC12V/20A Stepper motor MK8 dual Extruder extruder 1set Control GT2560+5 board A4988 LCD 2004 LCD2004 - 13 -...
- Page 15 GEEETECH Nylon ties Coil Acrylic kits XZ frame I3-01 Left side I3-02 frame Right side I3-03 frame - 14 -...
- Page 16 GEEETECH Z motor I3-04 fixed plate Z motor I3-05 fixed plate Z motor I3-06 support plate Z motor I3-07 support plate Z top mount I3-08 - 15 -...
- Page 17 GEEETECH Front support plate A of screw I3-09 and smooth Front support plate B of screw I3-10 and smooth Rear Support plate A of I3-11 screw and smooth rod Rear support plate B of I3-12 screw and smooth rod - 16 -...
- Page 18 GEEETECH Y motor I3-13 fixed plate Y plate for connecting I3-14 plate Y platform I3-15 support plate Y bearing I3-16 limit block Fix the LCD Acrylic panel washer LCD2004 frame LCD2004 frame holder - 17 -...
- Page 19 GEEETECH Plastic Parts left X-axis left end right X-axis right end PI3-S07 carriage PI3-08 Bearing Bracket - 18 -...
- Page 20 GEEETECH Extruder PI3B-S02 bracket Free add-on Ejector File Universal Tool kit screwdriver Filament holder - 19 -...
-
Page 21: General Care And Maintenance
GEEETECH Starter About 3 meters filament *The color of the screws is different according to the color of your printer: *The acrylic plate for the spool holder and the LCD frame are 5mm. For detailed build instructions, please visit this page: http://www.geeetech.com/acrylic-geeetech-i3-pro-3d-printer-diy-... - Page 22 Don’t leave your printer in shady and moist places, which may exacerbate the problems associated with erosion. The three axes of the GEEETECH I3 Pro B are lubricated with grease for smooth operation and can last for a long time.
- Page 23 GEEETECH product. If so, you can contact us directly or post on our forum, our technique staff will help you resolve it. For more detailed information, you can also visit Geeetech wiki from our home page. (http://www.geeetech.com) - 22 -...
- Page 24 GEEETECH GEEETECH www.geeetech.com - 23 -...
