Connect The Other End Of The X Axis Belt - Geeetech Prusa I3 X Building Instructions

Shenzhen GETECH CO.,LTD
GEEETECH

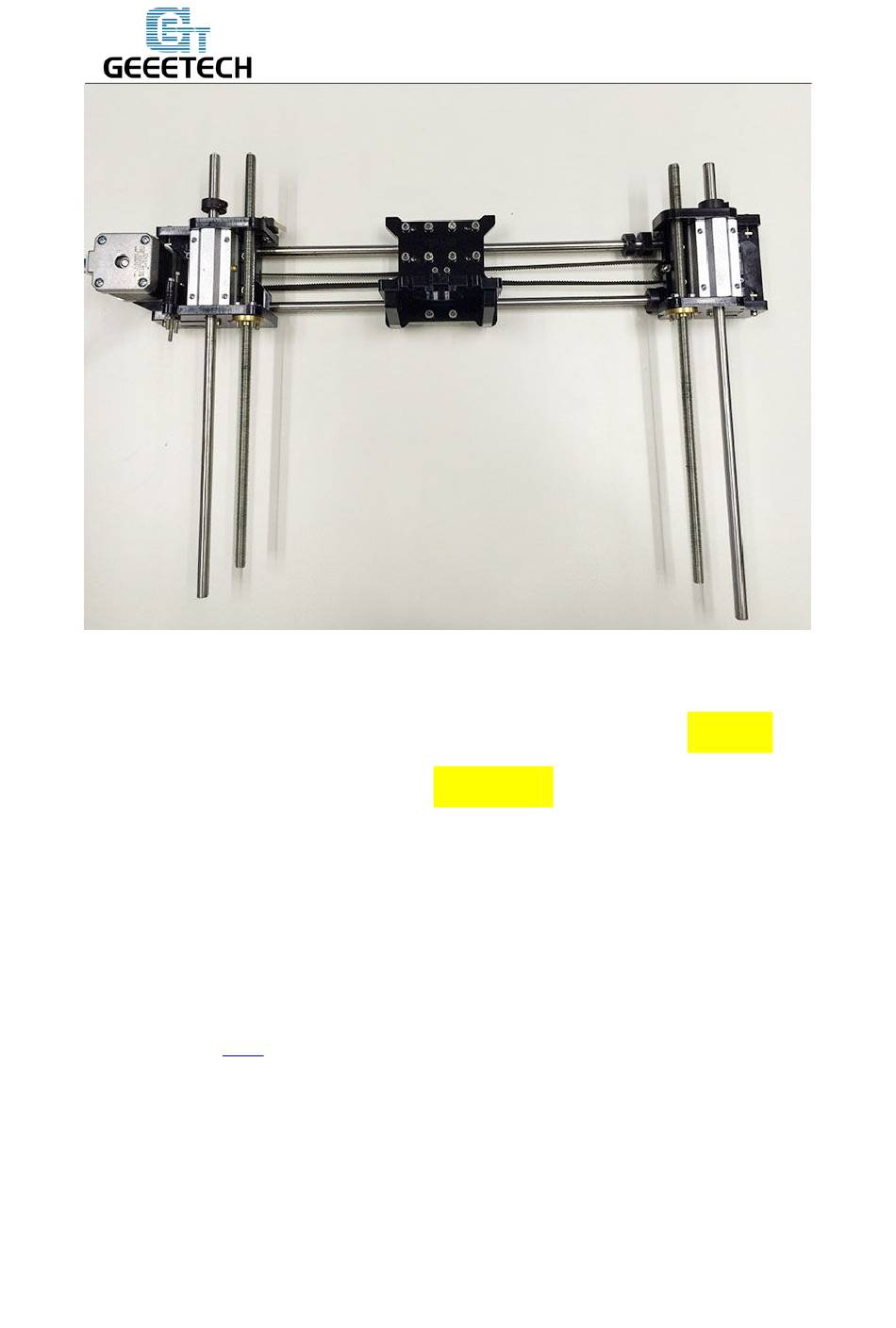

Step 4. Assemble the finished part on the printer. Adjust the two end of the X axis to
the smooth rods and the threaded rod of Z axis is vertical,
make sure
and the two end of the X axis are horizontal ,
which is very important, or it
will hinder the move of the Z axis.
Step 5, upon adjusting, you can screw up the locking ring on the rods of X axis.
Step 6. Thread the two locking rings to the smooth rod of the Z axis.
Step 7. Add the Z top mount to the Z axis. Screw it up with M3 x 16mm screw and
M3 Square nut.
Watch the video here.

20. Connect the other end of the X axis belt.

Now the X axis is ready, the distance between the two end is fixed now, we can fix
the other end of the belt.
