Step 3. Fix the motor tightly with 4xM3*12mm screws and 4 washers. (Fasten
the screws in a diagonal direction.)

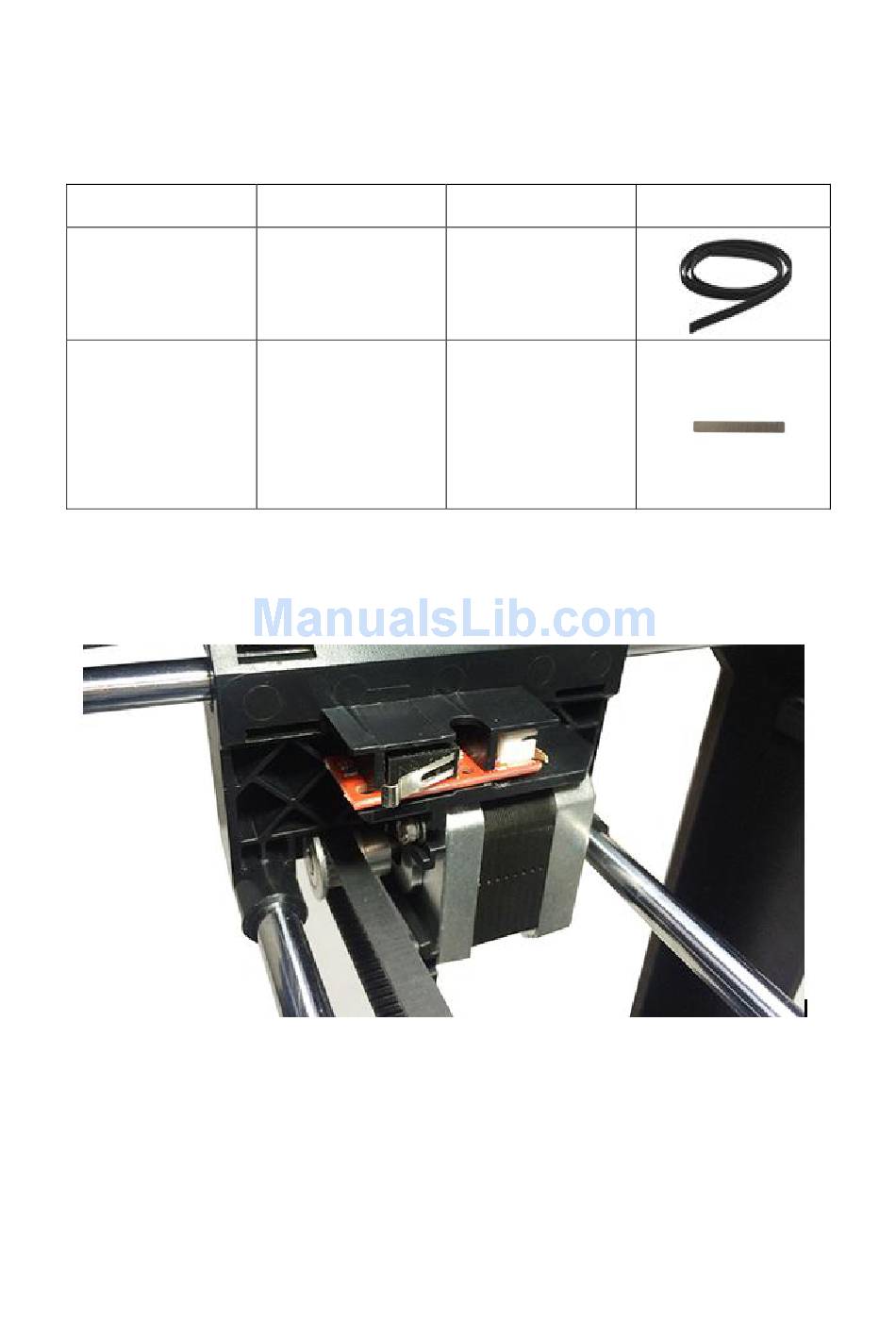

8. Mount X Axis Belt
Required parts
Belt
Timing belt plate
Step 1. Loosen the 4 screws on the X axis stepper motor slightly. Loop the belt
around the pulley on the driving wheel carriage from inside to outside.
Step 2. Pull the belt from bottom up across the pulleys on the driven wheel
carriage.
Required number
1
1
Part ID
NO. 33
NO. 39
47
