Step3. Thread the belt around the pulley on the motor and the ball bearing.
*Tips:
1. Before you drill your second hole, make sure to pull belt tightly to make sure to
proper placement of hole for a tight belt, if it is too loose, it will hinder the move of t
he print platform.
2. Loosen the Y idler wing nut when tightening belt onto the Y belt mount [No. 67] in
order to make securing the belt to the block easier. Be sure to tighten wing nut fully
once done.
Watch the video here.

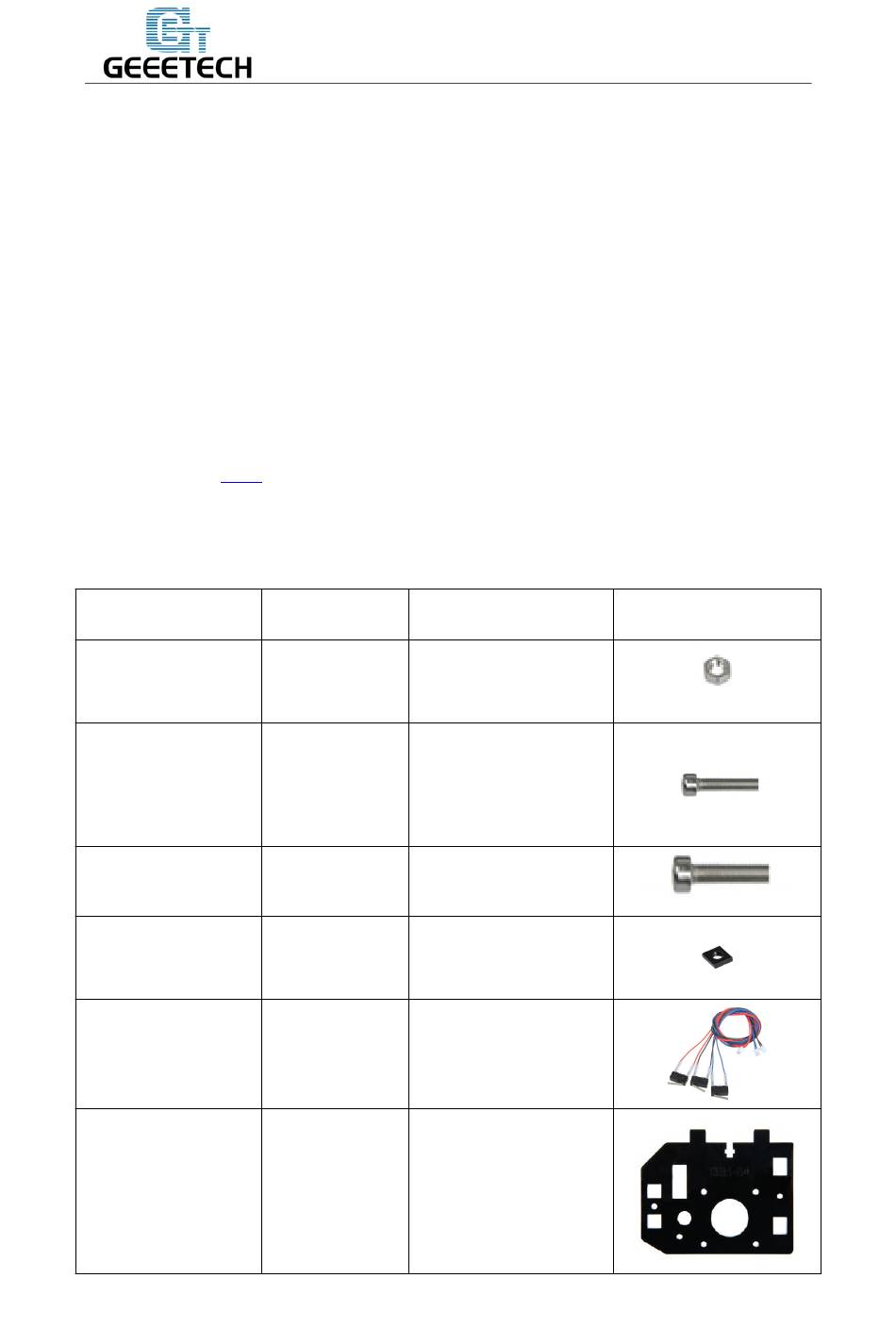

7. Left Z motor mount

Part name
M2.5 hex nut
M2.5x16mm screw
M3 x 16mm screw
M3 Square nut
end stop
Motor holder (left)
Shenzhen GETECH CO.,LTD
GEEETECH
Part ID Required number
No.11
No.20
No.23
No.16
No.52
No.A4
2
2
3
3
1
1
pic
