Shenzhen GETECH CO.,LTD
GEEETECH

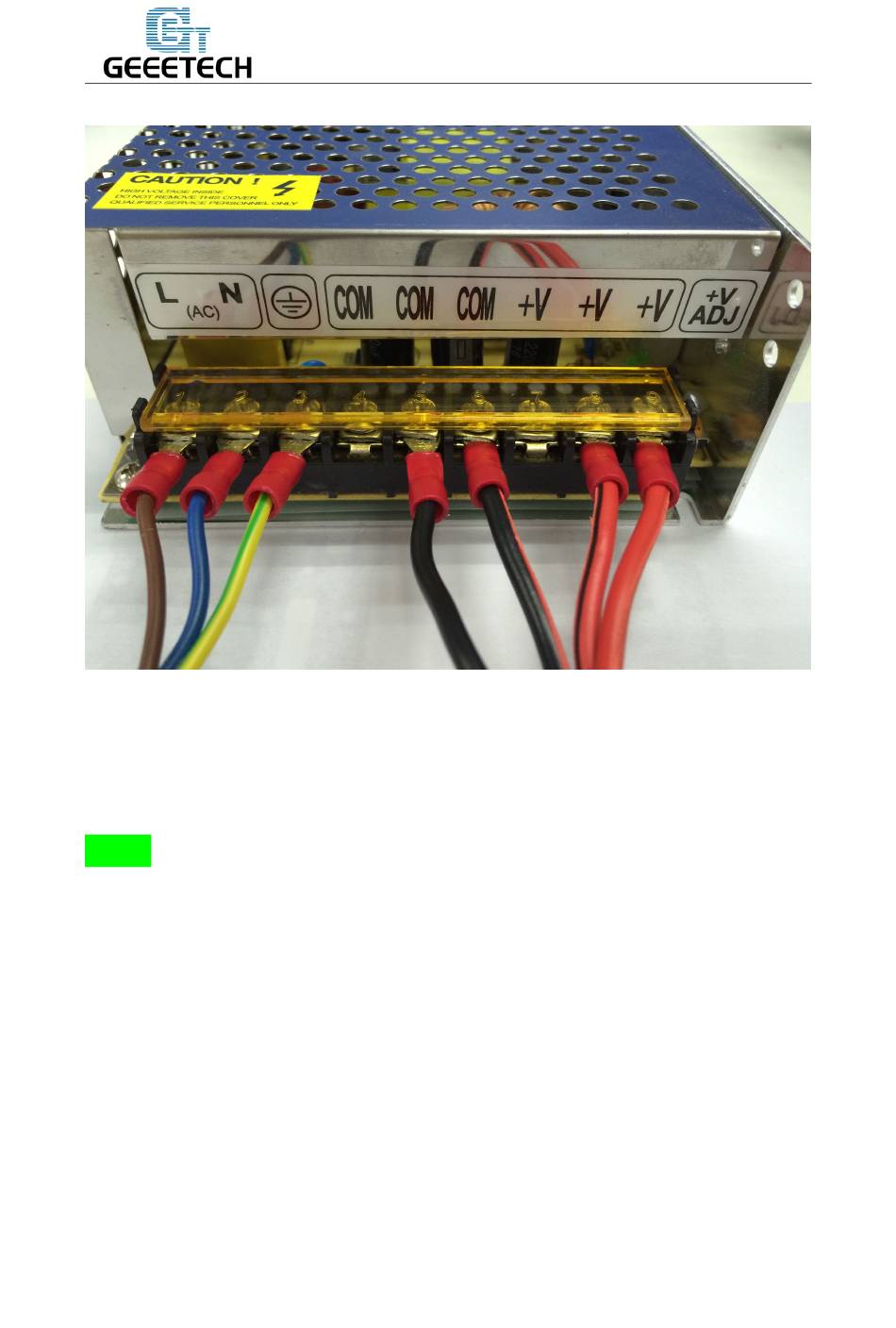

Step 10. Connect the wires to the PSU.

Note the correspondence between the color of wires and the connector.
Brown------L
Blue
------N
Yellow------GND
Red
------ --+ V
Black------COM
That is all for the wiring of GT2560.

27. Mount the filament spool.
