Mount The Y Motor - Geeetech Prusa I3 X Building Instructions

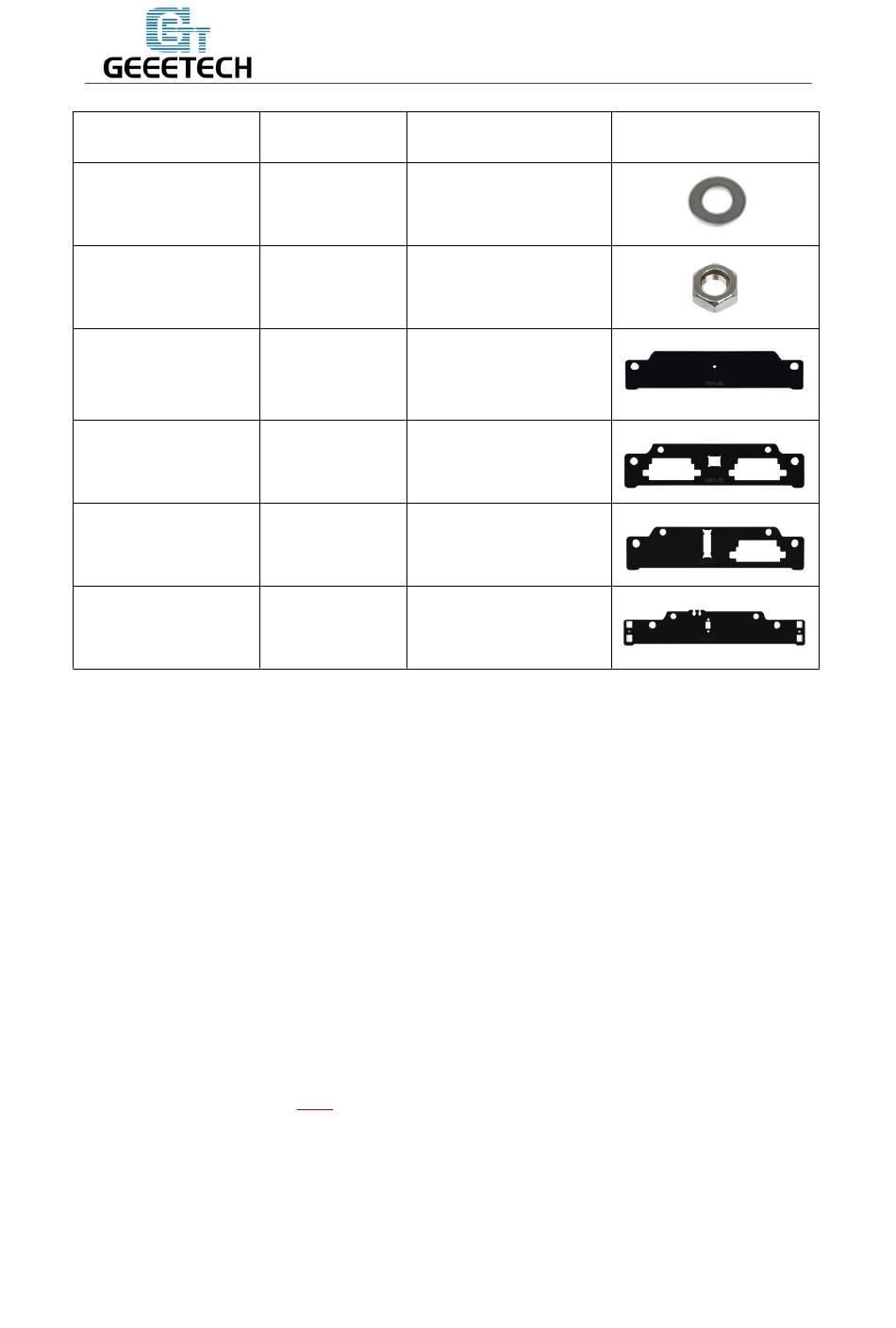

Part name
M10 washer
M10 hex nut
Y axis front support
Y axis front support
Y axis rear support
Y axis rear support
Thread the rod to the plate, screw up the threaded rods and plate with M10 nut and
M10 washer at both end.
You don't have to tighten it because you need to adjust the distance between the front
and rear plate later when you assemble the side panel.
* Tips:
the Y-axis must be a rectangle, that is the rods on both side should be parallel, so is
the front and back plate. Otherwise it will cause obstruction for the belt later. You can
use a Digital Caliper to measure.
You can watch the video here.

3. Mount the Y motor

Shenzhen GETECH CO.,LTD
GEEETECH
Part ID Required number
No.9
No.13
No.A9
No.A10
No.A11
No.A12
4
4
1
1
1
1
pic
