1. Assemble the threaded rods of Y axis

Part name
450mm threaded rod
M10 washer
M10 hex nut
M10 spring washer
Connecting fender
Thread the nuts and washers into the two M10 threaded rods separately. The order
should be:
1) Thread the acrylic fender (Y plate connecting plate) in the middle.
2) Thread the M10 washer>M10 nut >M10 nut >
M10 nut <M10 nut < M8 spring washer<M10 washer in turn on the left
3) Thread theM10 washer < M8 spring washer < M10 nut < M10 nut< M8 spring
washer < M10 washer in turn on the right
Shenzhen GETECH CO.,LTD
GEEETECH

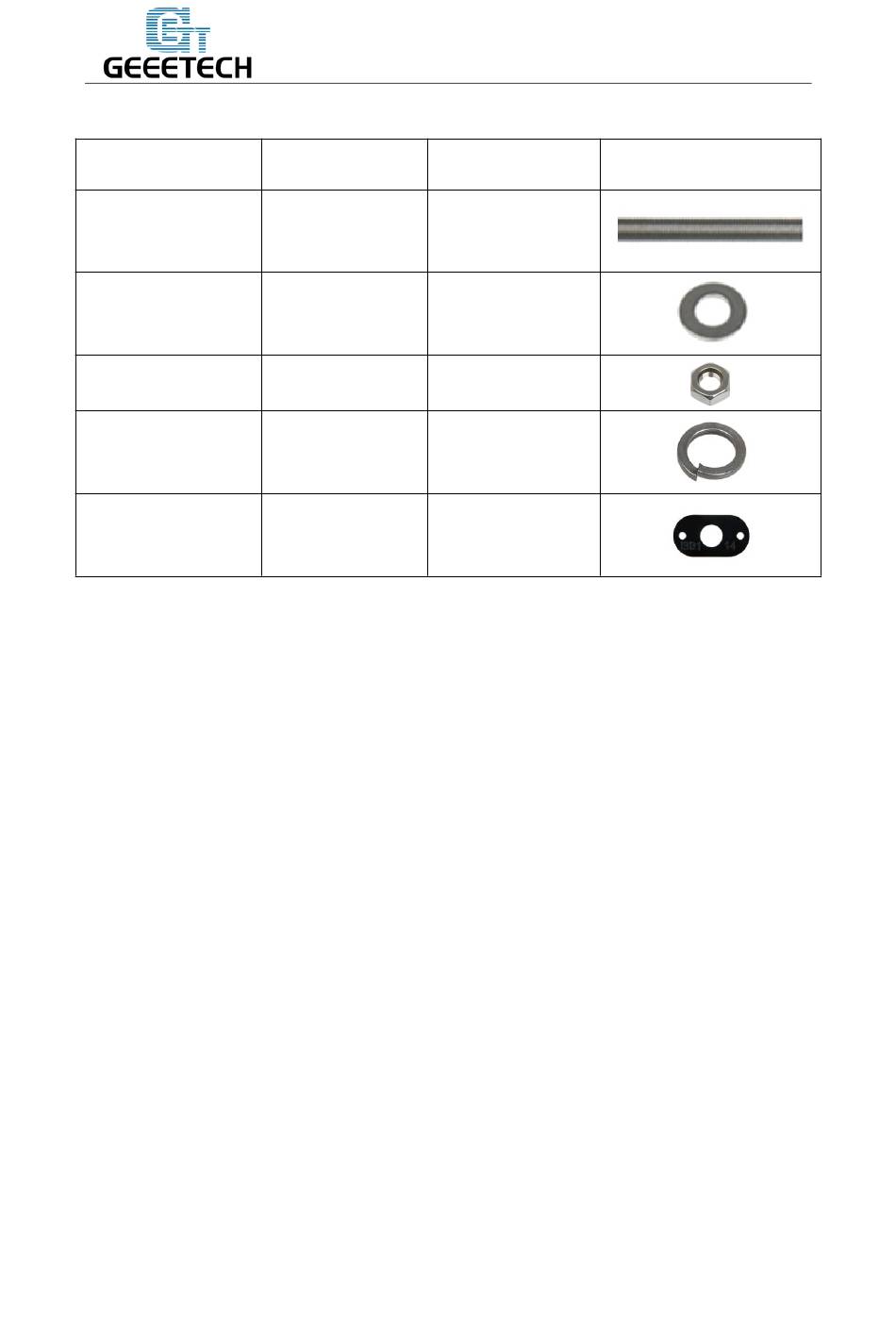

Part ID Required number
No.5
No.9
No.13
No.10
No.A14
2
8
8
6
2
pic
