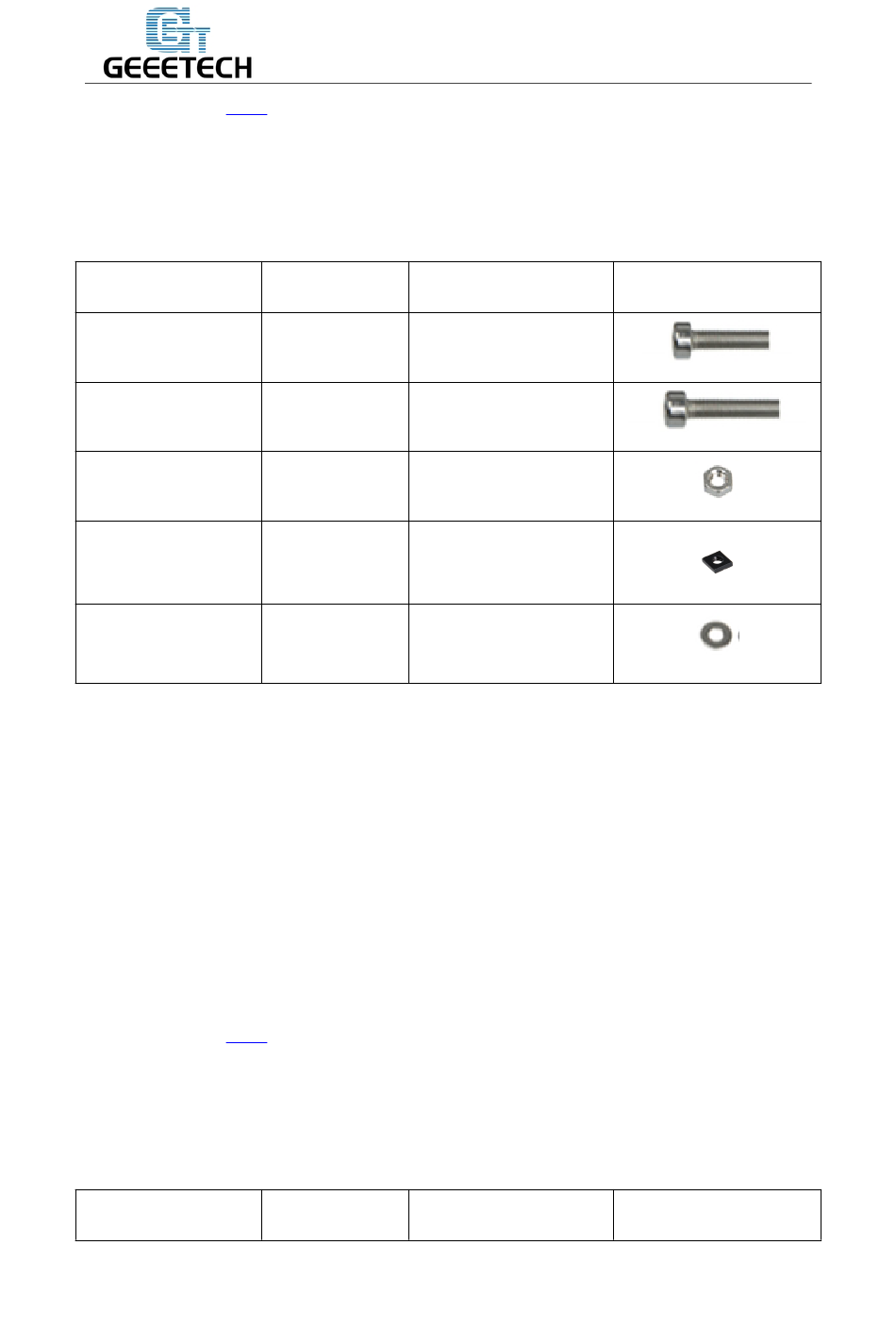

11. Main frame assembly

Part name
M3 x 16mm screw
M3 x 20mm screw
M3 hex nut
M3 square nut
M3 washer
Step 1. Thread the assembled Y axis into the main frame(A1), put the main frame
between the Connecting fender and the M10 nut. The Connecting fender is at the front
part of the Y axis.
Step 2. Connect the side panel to the rear support plate, screw it up with M3 x 16mm
screw and M3 square nut.
Step 3. Fix the connecting fender to A1 with M3 x 20mm screw and M3 hex nut.
Watch the video here.

12. Fan mount

Part name
Shenzhen GETECH CO.,LTD
GEEETECH
Part ID Required number
No.23
No. 24
No. 2
No.16
No.7
Part ID Required number
2
4
4
6
4
