Right Z Motor Mount - Geeetech Prusa I3 X Building Instructions

Motor Holder
support
Motor Holder
support
Z endstop mount
Step 1. Mount the endstop on the endstop mount with two M2.5 x 16screws and nut.
Step 2. Mount the assembled endstop mount on the A4 with M3 x 16mm screw and
M3 Square nut.
Step 3. Assemble the motor holder (left) and the motor holder support together, screw
it up with 3 M3 x 16mm screw and M3 Square nut.
Watch the video here.

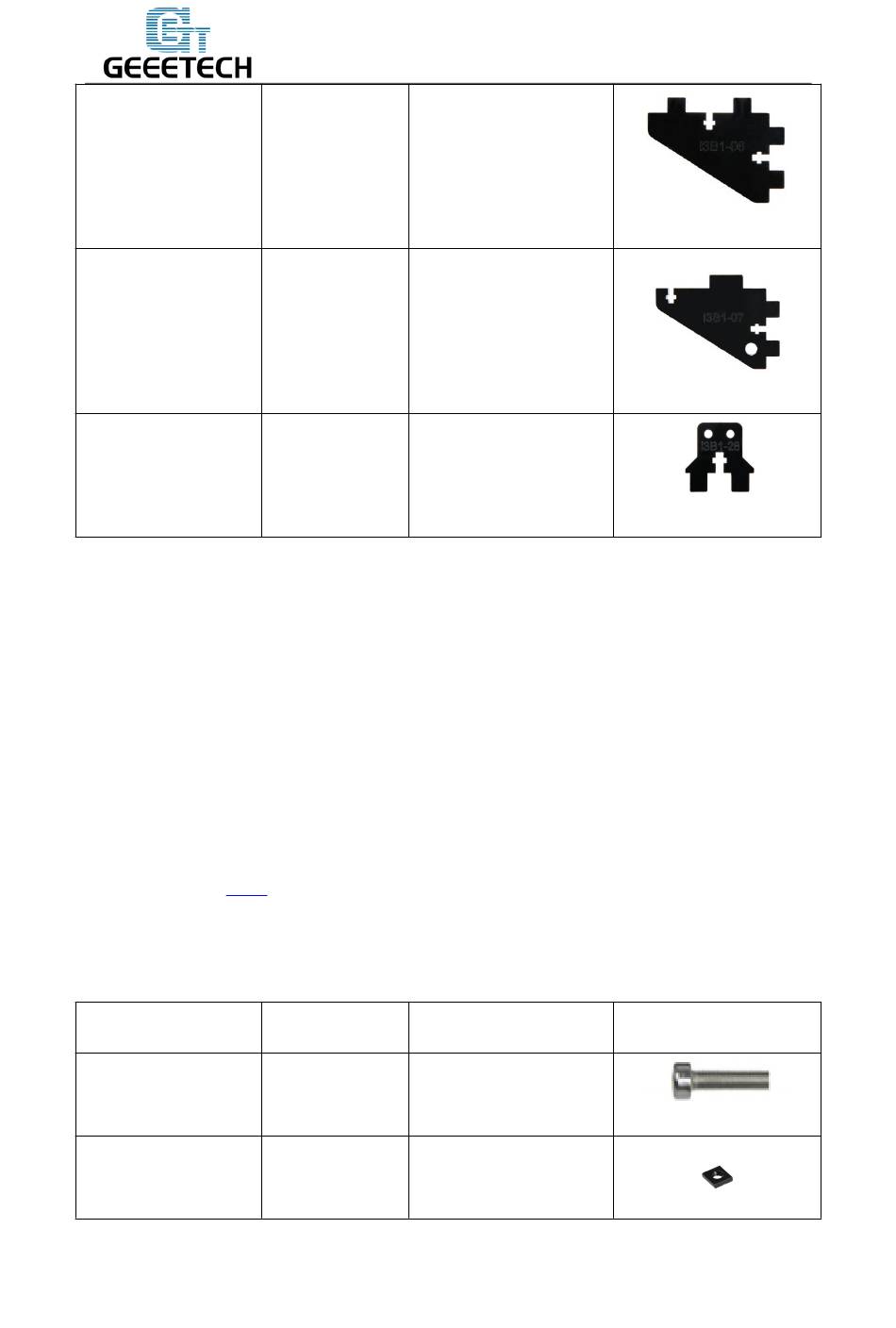

8. Right Z motor mount

Part name
M3 x 16mm screw
M3 Square nut
Shenzhen GETECH CO.,LTD
GEEETECH
No.A6
No.A7
No.A28
Part ID Required number
No.23
No.16
1
1
1
2
2
