Shenzhen GETECH CO.,LTD
GEEETECH

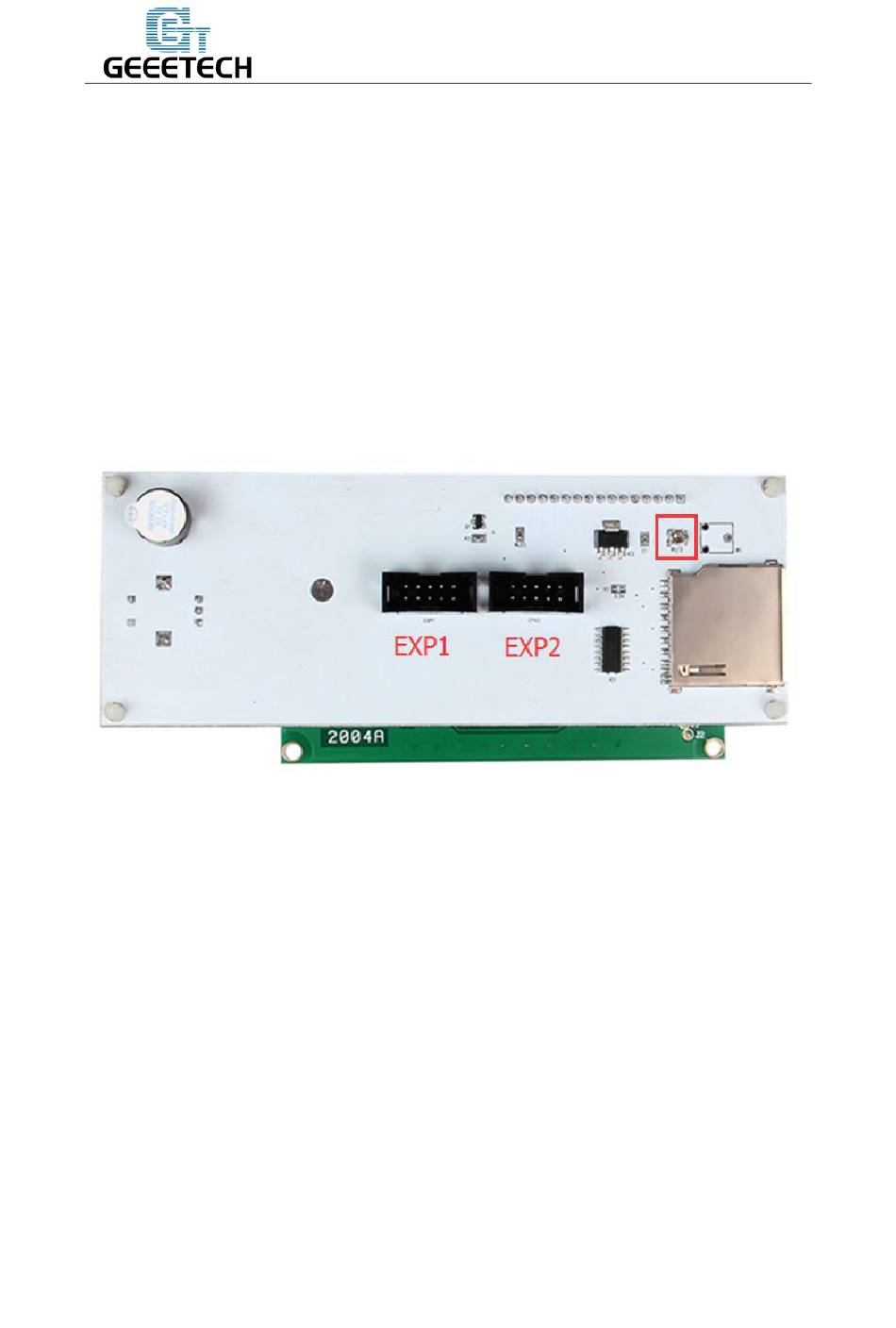

Step8. Connect wires for LCD panel.
There are two cables, one is for LCD encoder, the other is for SD card.
EXP1 to LCD
EXP2 to SD card reader
BTW, do you see the small screw above the SD card reader, if the text in of the LCD
phases in an out or there is only blocks on the screen, you can adjust this screw to
recovery it.
