Geeetech Prusa I3 X Building Instructions page 41

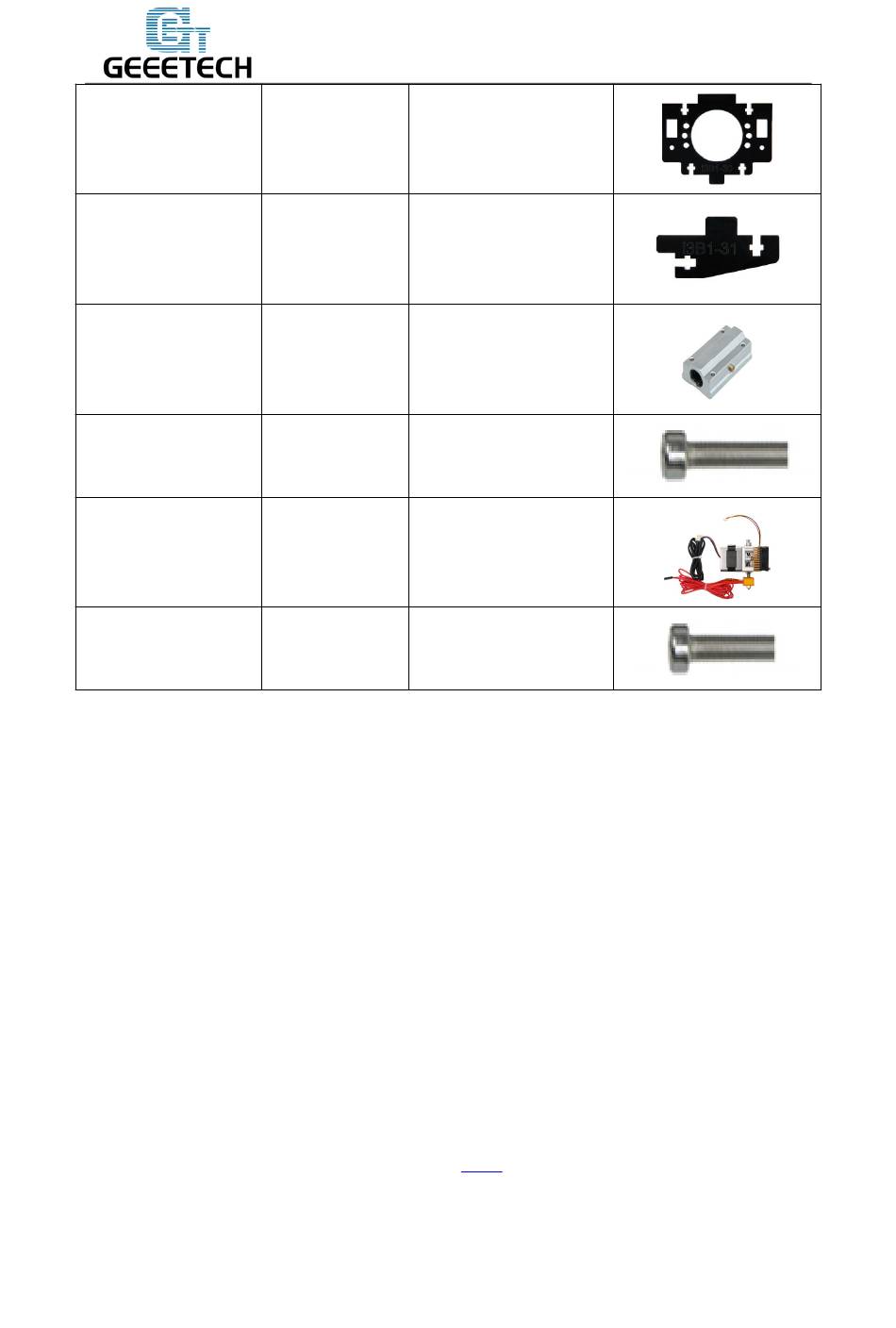

Extruder Bracket
extruder bracket
support
SCS8UU
Linear Bearing
M4x16mm screw
Extruder
M4x12mm Screw
Step 1. Mount the belt mount on the back of the X axis bearing support plate(No.A 29)
with 2 M3x12mm screws and lock it up with M3 hex nut.
Step 2.mount the 3 SCS8UU Linear Bearing on the back of the X axis bearing support
plate(No.A 29) with M4x16mm screws.
Step 3. Mount the 2 extruder bracket support (No.A31) under the Extruder
Bracket(No.A30) with 2 M3 x 16mm screw and M3 Square nut.
Step 4. Connect the Extruder Bracket(No.A30) to X axis bearing support plate(No.A
29) with 2 M3 x 16mm screw and M3 Square nut.
Step 5. Thread the extruder into the bracket and fix it up with 2 M4x12mm Screws.
For detailed assembly process, please watch
Shenzhen GETECH CO.,LTD
GEEETECH
No.A30
No.A31
No.36
No. 30
No. 61
No.29
here.
1
2
3
12
1
1
