Pulley
No.42
1
Mount the X motor

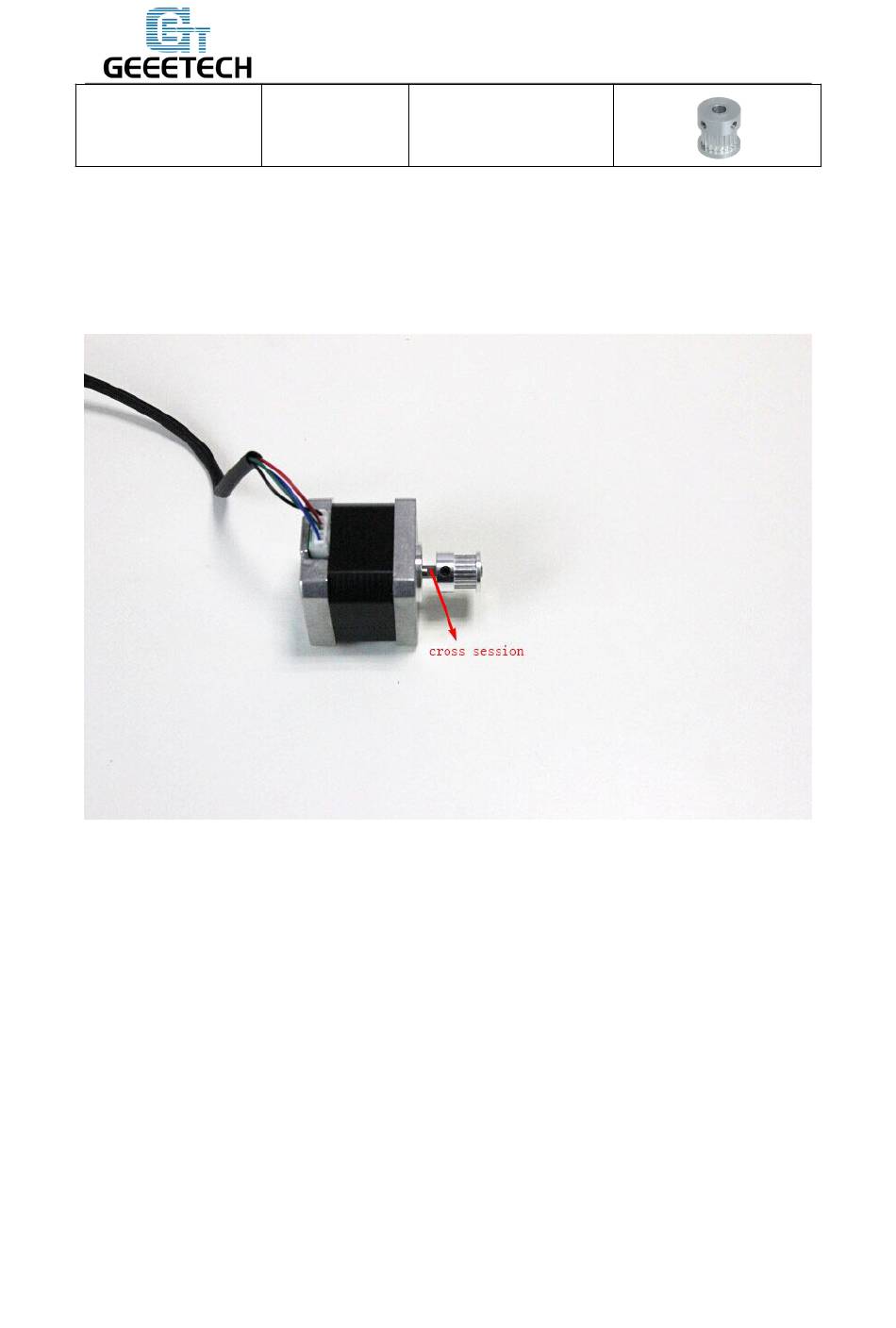

Step1. Mount the pulley on the motor shaft, one of the screws should be screwed on
the cross section of the shaft. Screw it tightly.
Step2. Then screw the motor on A16 plate with 4 M3 x 12 screws .
Mount the Z motor
Step1.Thread the wires of the motors through the holes on the bottom of A1.
