1.6.7 Connection example of the "Fault" contact and the "Ready to Operate" contacts

This example demonstrates how you can use the messages for "Fault", "Ready to Operate" and "Warning

temperature limit".

To use the floating change-over contact for a "Fault message" (Fig.: 1-9 a), you have to route the signal line

across the mutual terminal –X7.1 and Terminal –X7.2 for the change-over contact resp. –X7.3 for the normally

closed contact.

To use the floating change-over contact for a "Ready to Operate" message" (Fig.: 1-9 b), you have to route the

signal line across the mutual terminal –X7.4 and Terminal –X7.5 for the change-over contact resp. –X7.6 for the

normally closed contact.

To use the floating change-over contact for a "Warning temperature limit" (Fig.: 1-9 b), you have to route the

signal line across the mutual terminal –X7.7 and Terminal –X7.8 for the change-over contact resp. –X7.9 for the

normally closed contact.

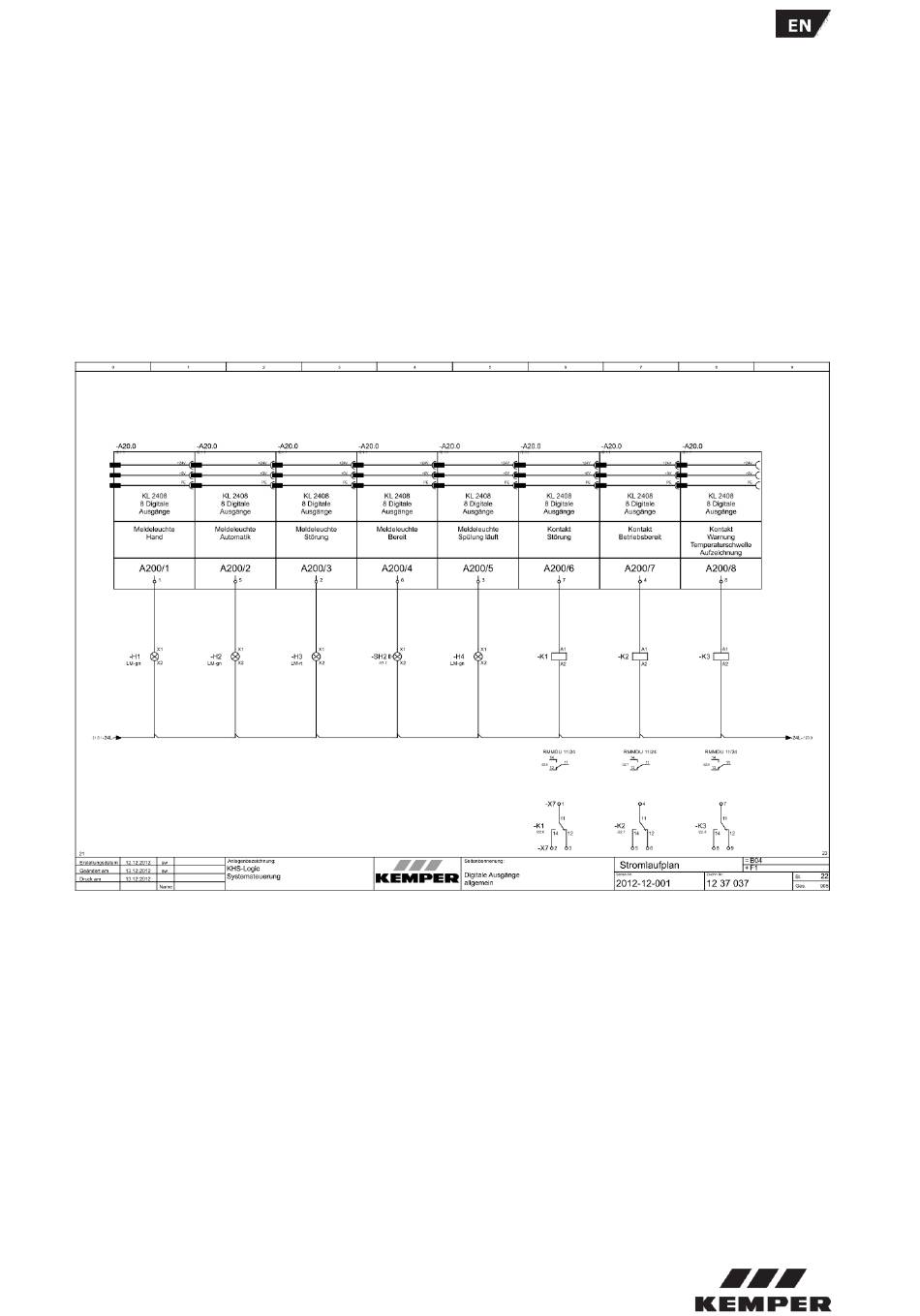

Fig.: 1-9 Extract of circuit diagram (Digital outputs in general)

=68xx.xx Charging

hydrate system "Start"

- 10 -

)
