1.6.4 Connection example, cold water temperature measurement valve (PT1000)

In this example, Temperature measurement valve 1 for the PWC flushing is connected to Channel T101. The
permanently assigned channel number in the temperature measurement valve can be found, as in the above
examples, in the side designation (Fig.: 1-6 a) and in the description of the respective channel (Fig.: 1-6 b).
Connect the temperature measurement valve in accordance with Figure 1-6. Connect both white conductors of
the temperature measurement valve together to Module terminal KL3202 with the designation R-. One red
conductor each of the temperature measurement valve is connected to the card inputs with the designation R+
and RL. While doing so, no differentiation is made between the conductors.

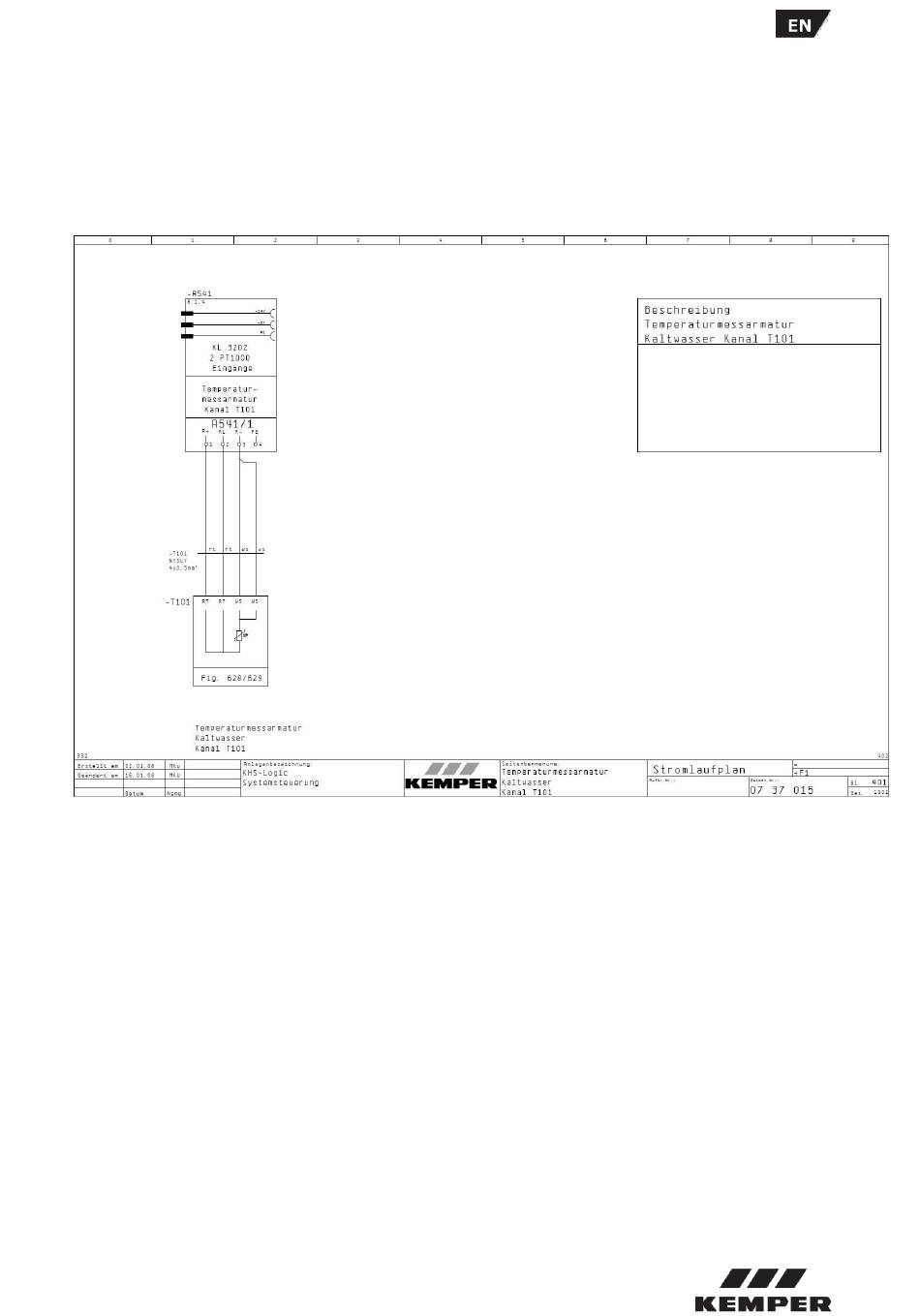

Pic. 1-6 Circuit Diagram Excerpt (Cold Water Temperature Measurement Device T101)
