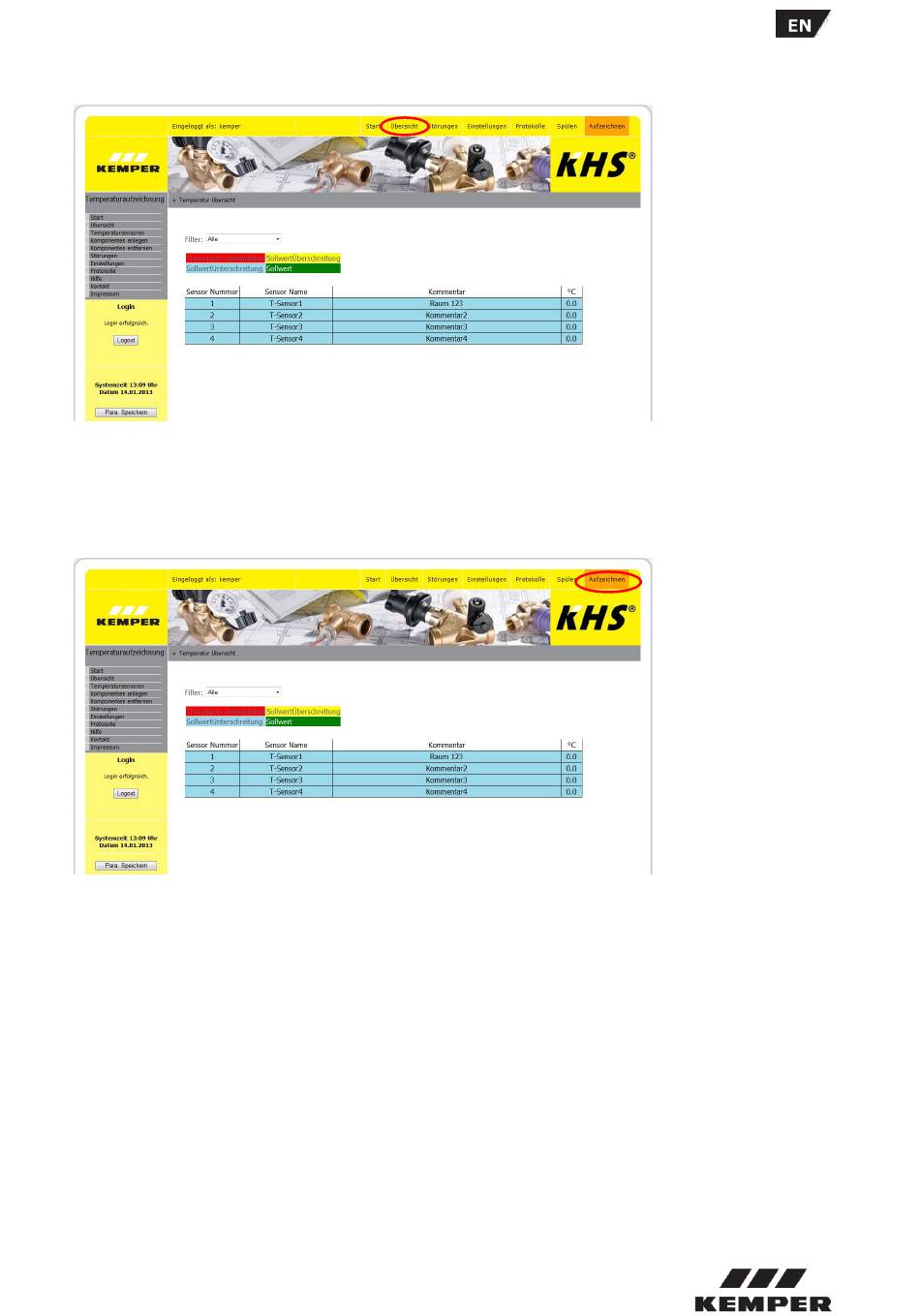

3.2.5 Temperature overview

You can use the navigation point "Overview" in the "Recording" mode to see all the

temperature sensors in an overview. They are colour highlighted according to the operating condition.

If the temperature for the range to be monitored happens to undercut or exceed the

set-point range, that fact is indicated by the flashing fault alarm signal on the control

cabinet and by the orange highlighted "Recording" tab. However, this warning is not

shown in the "Error Messages" It is merely recorded in the temperature log.

The warning message can be forwarded to, e.g., a BMS through Relay –K3.

- 30 -
