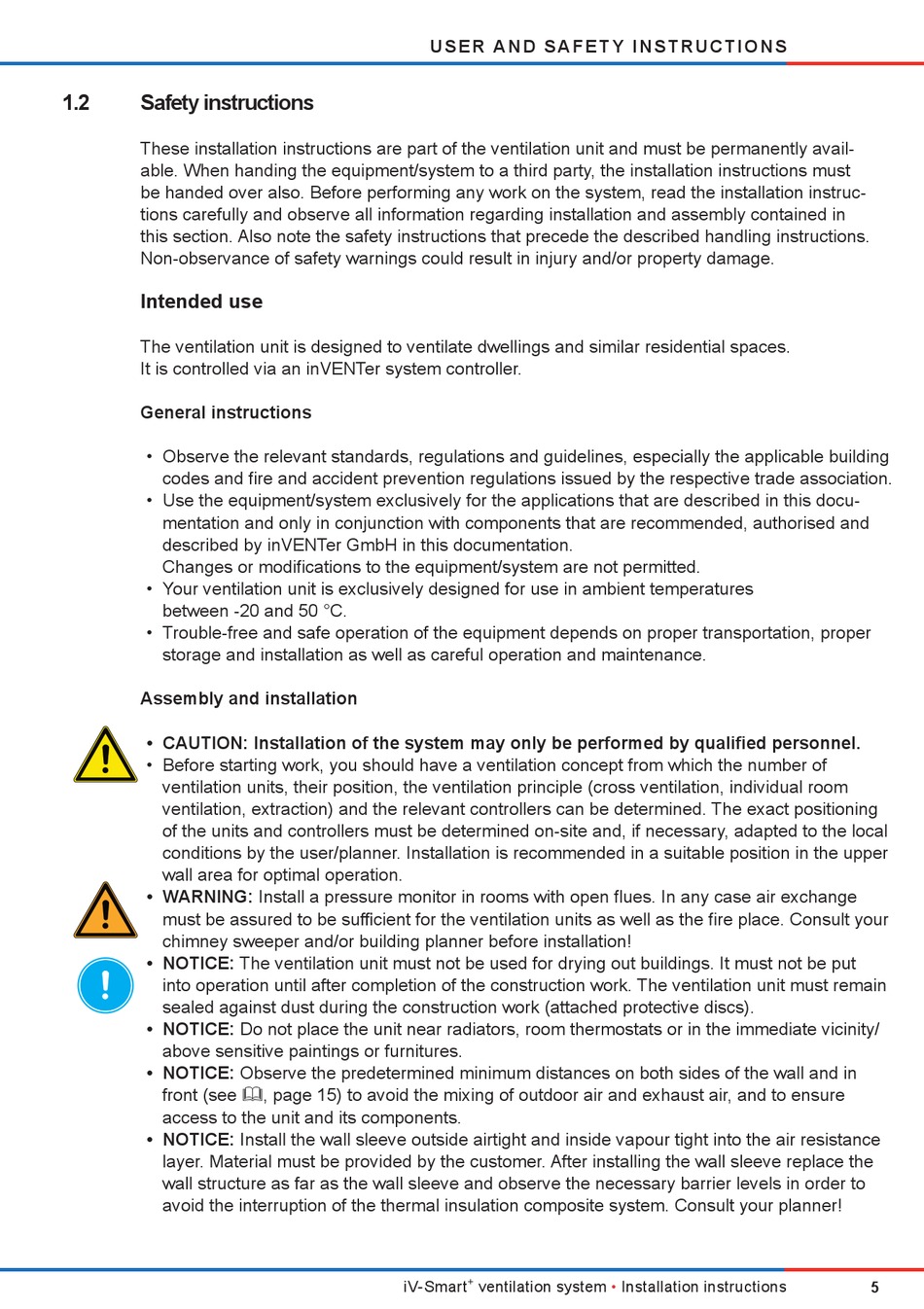

1.2

Safety instructions

These installation instructions are part of the ventilation unit and must be permanently avail-
able. When handing the equipment/system to a third party, the installation instructions must
be handed over also. Before performing any work on the system, read the installation instruc-
tions carefully and observe all information regarding installation and assembly contained in
this section. Also note the safety instructions that precede the described handling instructions.
Non-observance of safety warnings could result in injury and/or property damage.
Intended use
The ventilation unit is designed to ventilate dwellings and similar residential spaces.
It is controlled via an inVENTer system controller.
General instructions
• Observe the relevant standards, regulations and guidelines, especially the applicable building
codes and fire and accident prevention regulations issued by the respective trade association.
• Use the equipment/system exclusively for the applications that are described in this docu-
mentation and only in conjunction with components that are recommended, authorised and
described by inVENTer GmbH in this documentation.
Changes or modifications to the equipment/system are not permitted.
• Your ventilation unit is exclusively designed for use in ambient temperatures
between -20 and 50 °C.
• Trouble-free and safe operation of the equipment depends on proper transportation, proper
storage and installation as well as careful operation and maintenance.
Assembly and installation
• CAUTION: Installation of the system may only be performed by qualified personnel.
• Before starting work, you should have a ventilation concept from which the number of
ventilation units, their position, the ventilation principle (cross ventilation, individual room
ventilation, extraction) and the relevant controllers can be determined. The exact positioning
of the units and controllers must be determined on-site and, if necessary, adapted to the local
conditions by the user/planner. Installation is recommended in a suitable position in the upper
wall area for optimal operation.
• WARNING: Install a pressure monitor in rooms with open flues. In any case air exchange
must be assured to be sufficient for the ventilation units as well as the fire place. Consult your
chimney sweeper and/or building planner before installation!
• NOTICE: The ventilation unit must not be used for drying out buildings. It must not be put
into operation until after completion of the construction work. The ventilation unit must remain
sealed against dust during the construction work (attached protective discs).
• NOTICE: Do not place the unit near radiators, room thermostats or in the immediate vicinity/
above sensitive paintings or furnitures.
• NOTICE: Observe the predetermined minimum distances on both sides of the wall and in
front (see , page 15) to avoid the mixing of outdoor air and exhaust air, and to ensure
access to the unit and its components.
• NOTICE: Install the wall sleeve outside airtight and inside vapour tight into the air resistance
layer. Material must be provided by the customer. After installing the wall sleeve replace the
wall structure as far as the wall sleeve and observe the necessary barrier levels in order to
avoid the interruption of the thermal insulation composite system. Consult your planner!
U S E R A N D S A F E T Y I N S T R U C T I O N S
+
iV-Smart ventilation system • Installation instructions
5
