inVENTer iV-Smart+ User Manual page 31

Wall opening
≥ 250
2
1
180
Ø
Corner flat duct 400 mm

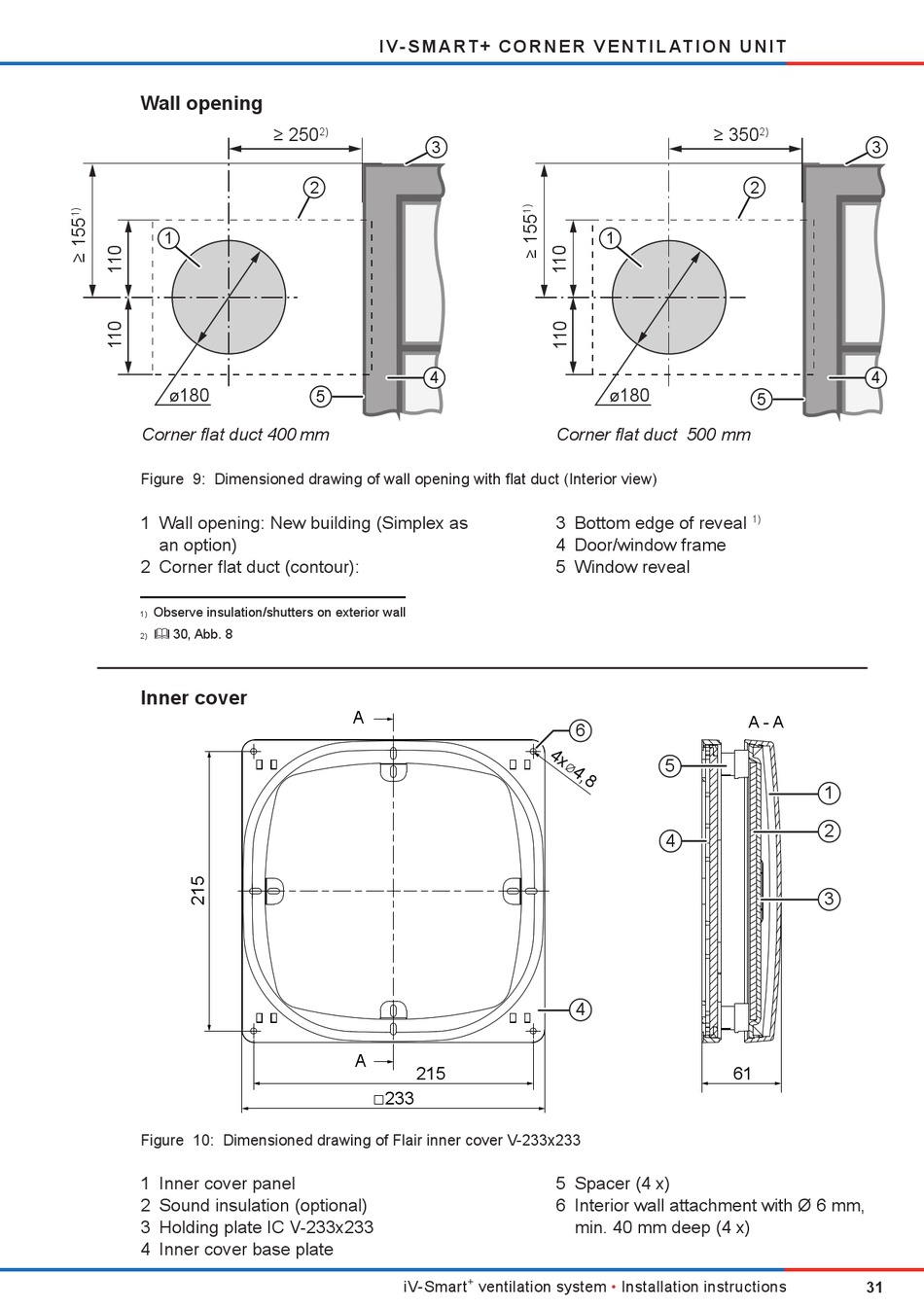

Figure 9: Dimensioned drawing of wall opening with flat duct (Interior view)
1 Wall opening: New building (Simplex as
an option)
2 Corner flat duct (contour):
Observe insulation/shutters on exterior wall
1)
 30, Abb. 8
2)
Inner cover
Figure 10: Dimensioned drawing of Flair inner cover V-233x233
1 Inner cover panel
2 Sound insulation (optional)
3 Holding plate IC V-233x233
4 Inner cover base plate
I V- S M A R T+ C O R N E R V E N T I L AT I O N U N I T
2)
3
4
5
A
A
215
□
233
+
iV-Smart ventilation system
≥ 350
1
180
Ø
Corner flat duct 500 mm
3 Bottom edge of reveal
4 Door/window frame
5 Window reveal
6
5
4
4
5 Spacer (4 x)
6 Interior wall attachment with Ø 6 mm,
min. 40 mm deep (4 x)
• Installation instructions
2)
3
2
4
5
1)
A - A
1
2
3
61
31
