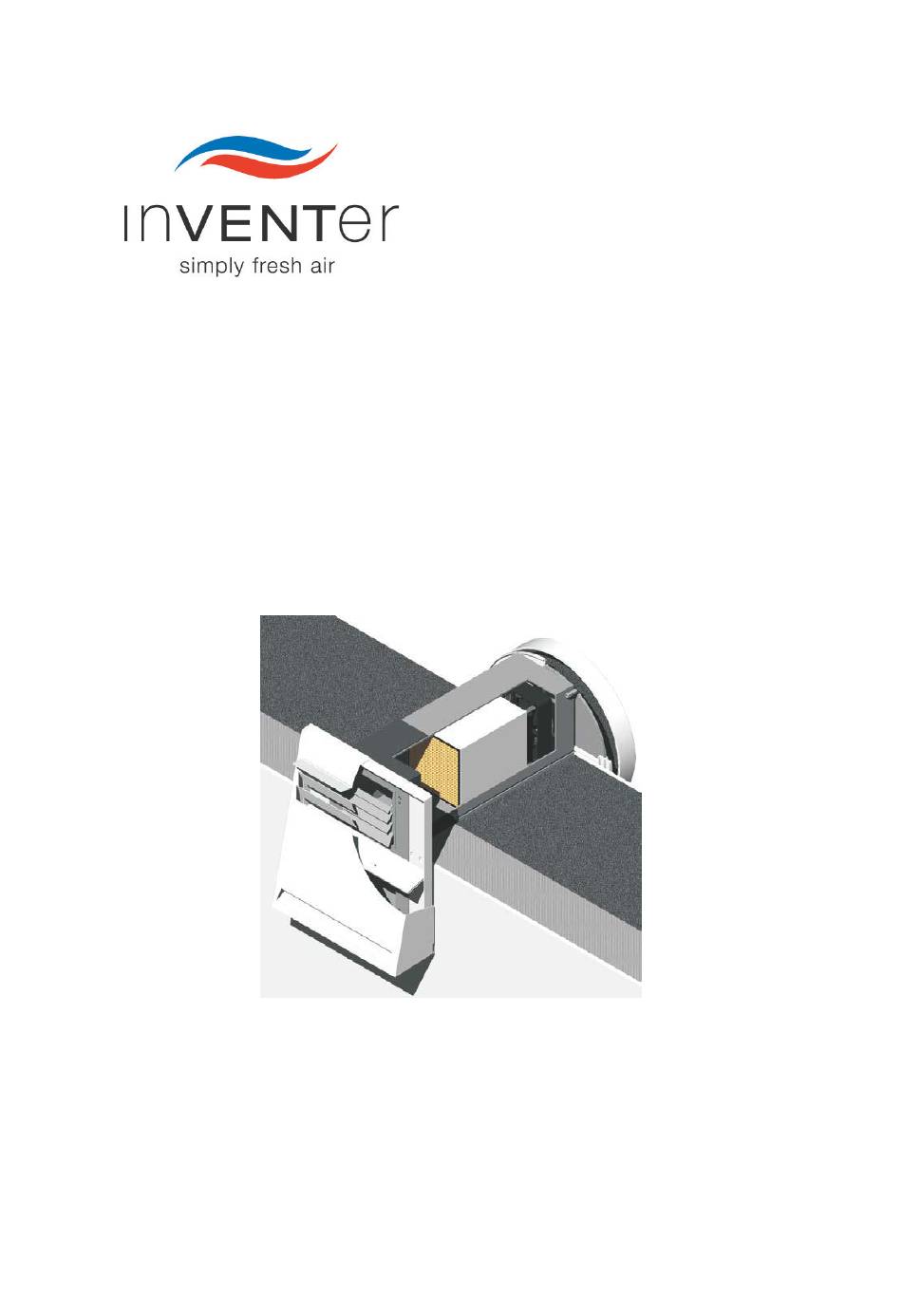

iV-Twin ventilation system
Installation and operating instructions
Manufacturer
®
inVENTer
GmbH
Ortsstraße 4a, D-07751 Löberschütz, Germany
Phone: +49 (0) 36427 211-0, Fax: +49 (0) 36427 211-113
www.inventer.eu, info@inventer.de
Status: 04/2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the iV-Twin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for inVENTer iV-Twin

  • Page 1 Installation and operating instructions Manufacturer ® inVENTer GmbH Ortsstraße 4a, D-07751 Löberschütz, Germany Phone: +49 (0) 36427 211-0, Fax: +49 (0) 36427 211-113 www.inventer.eu, info@inventer.de Status: 04/2012...
  • Page 2: Table Of Contents

    2. Assembly wall sleeve (channel iV-Twin) ..................5 3. Assembly of weather protection hood 09 ................. 10 4. Finalization of the iV-Twin from the inside ................12 4.1 Assembling the thermal accumulator, fan and electrical connection ........12 4.2 Assembly of the inner cover ....................... 14 5.
  • Page 3: Assembly Instruction "General Part

    The ventilation system can only be commissioned after finishing all building activities! Identification points of the device inVENTer iV-Twin, according to construction permit DIBt: Z-51.3-198 Manufacturer: inVENTer GmbH, Ortsstraße 4a, D-07751 Löberschütz Year of manufacture: 2012 Overview:...
  • Page 4 The iV-Twin was especially developed for individual room ventilation.  The inVENTer ventilation system may not be used in rooms that are subject to high levels of dust accumulation (e.g., in model construction) and may not be used in rooms with aggressive or corrosive gases.
  • Page 5 The ventilation devices are allocated via the project, which must be checked and possibly changed after controller start-up. During the delivery state the fans are set to "extract". With correct installation, the iV-Twin ensures operation in pairs. Synchronisation: When utilising several ventilators activated by several controllers, synchronous collaboration must be observed.
  • Page 6: Assembly Wall Sleeve (Channel Iv-Twin)

    A: Locking area B: Inside C: Outside Scope of supply - Channel iV-Twin: 400 mm (Art. no. 1506-0004) / 550 mm (Art. no. 1506-0010) / 700 mm (Art. no. 1506-0011) / 900 mm (Art. no. 1506-0012) - Sliding sleeve - Mounting wedges...
  • Page 7 Assembly of wall sleeve (channel iV-Twin) Specify the installation location, wall opening and cable installation Inside  Minimum distance surrounding from the edge of the wall sleeve to the wall/ceiling  Later, there must be a space of at least...
  • Page 8 Assembly of wall sleeve (channel iV-Twin)  The thermal accumulator or suitable material must therefore be in the wall sleeve during installation.  The screws in the fastening elements of the wall sleeve are removed only after finishing the wall mounting work (thread protection).
  • Page 9 Assembly of wall sleeve (channel iV-Twin)  Guide a second approx. 1 m long cable (loop) from the top into the bottom pipe (as shown on the left). It is used later for connecting the two fans. For larger wall...
  • Page 10 Assembly of wall sleeve (channel iV-Twin) Exterior  Outside, cut off the protruding mounting wedges and fill material.  Now, from the inside, attach the end-stop strap at both wall sleeves on the left, right and top sides.  Thereafter, attach the plaster cover to the wall sleeve, inside and outside.
  • Page 11: Assembly Of Weather Protection Hood 09

    "white", "grey" or "Nord" (iron grey). Technical data Weather protection hood 09 for iV-Twin in white (Art. no. 1508-0014), grey (Art. no. 1508-0026) or iron grey (Art.-no. 1508-0028). Scope of supply - Cover of weather protection hood 09 (stainless steel) in "white"...
  • Page 12  Thereafter, slide the cover from the top onto the base plate.  Close possible gaps between the weather protection hood and plaster on top and at the sides using a permanent elastic sealant, which is also suitable for the outside. ® inVENTer www.inventer.de...
  • Page 13: Finalization Of The Iv-Twin From The Inside

    4. Finalisation of the iV-Twin from the inside 4.1 Assembling the thermal accumulator, fan and electrical connection The thermal accumulator and reverse fan are components of the inVENTer ventilation system. The thermal accumulator consists of a ceramic block that is enclosed by a closed-pored insulating material.
  • Page 14 4. Finalisation of the iV-Twin from the inside Electrical connection This description refers to utilising the inVENTer round cable. Other cables (Braids!) must be connected correspondingly.  For connecting the braids please use wire sleeves with flange avoid unwanted short circuits.
  • Page 15: Assembly Of The Inner Cover

    4. Finalisation of the iV-Twin from the inside 4.2 Assembly of the inner cover The inner cover is a necessary component of the inVENTer ventilation system. It is closeable and only suitable for indoor spaces. Therefore, it may not be used outdoors. A dust filter is included in the first delivery.
  • Page 16  The separating plate is slid horizontally into the centre, as shown below. In the open position, the cap is positioned in such a way that the word "inVENTer" can be read.  In order to close the inner cover, this must be taken off and the separating plate removed.
  • Page 17: Servicing And Maintenance

    2.5 watts per fan (effective).  The inner cover must be open at all times in order for the inVENTer to fully function.  If the inVENTer is not in operation, then the inner cover should be closed.
  • Page 18 Thermal Slide the thermal accumulator into the wall accumulator not sleeve until it is against the end-stop strap. moved outside Additional noise Outside noise (street noise) can be reduced by insulation required using a noise insulation mat. ® inVENTer www.inventer.de...
  • Page 19 Personal notes (e.g., responsible authorised dealer; invoice number / delivery note number):...
  • Page 21 GmbH Ortsstraße 4a D-07751 Löberschütz, Germany Telephone: +49 (0) 36427 211 – 0 Fax: +49 (0) 36427 211 – 113 info@inventer.de www.inventer.eu Subject to technical changes! Copyright: inVENTer GmbH, copies are only permitted permission MBA-iV-tw in_10-2011v16_EN.doc...
