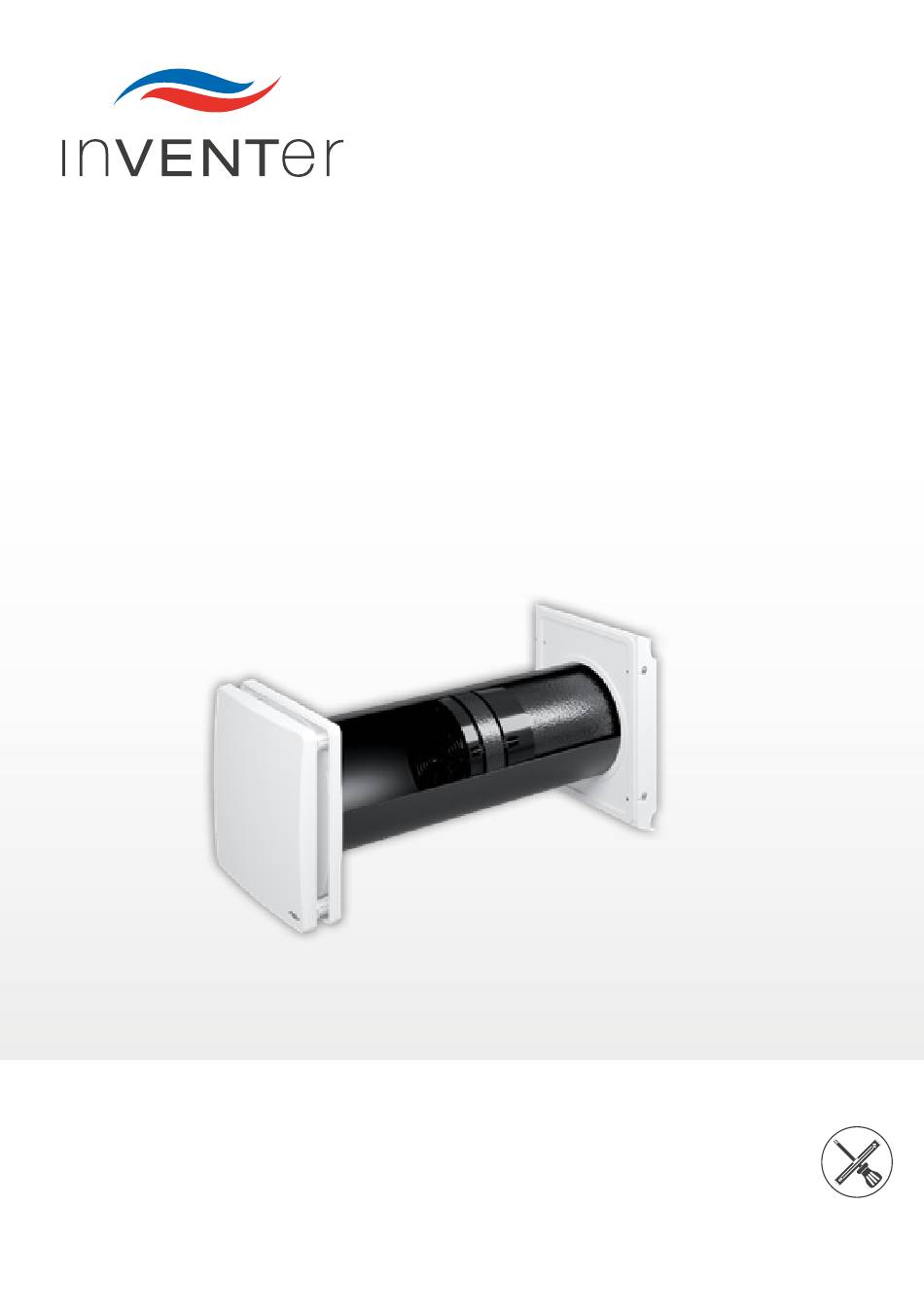

- Page 1 Installation instructions iV-Smart+ Ventilation device with heat recovery www.inventer.eu...
- Page 2 ® inVENTer GmbH. The copyright to this document remains with the manufacturer. Rights to all content and images: © inVENTer GmbH 2022. All trademarks used in this document are the property of their respective manufacturers and are hereby acknowledged. Disclaimer This documentation represents a translation of the German installation instructions.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of contents User and safety instructions ....................4 User information ......................4 Safety instructions ......................5 System overview: iV-Smart+ ventilation device ..............8 Construction ........................9 Function ......................... 10 Control elements ......................12 Preparing for installation ......................14 Installation position...................... -
Page 4: User And Safety Instructions
USER AND SAFETY INSTRUCTIONS User and safety instructions Thank you for purchasing this high quality product from inVENTer! This section provides an overview of the basic safety precautions for safe and proper operation of your ventilation device. User information Safety and warning instructions The safety and warning instructions in these installation instructions have a uniform structure and are marked with a symbol on the left side of the instruction. -
Page 5: Safety Instructions
The installation instructions are part of your iV-Smart+ ventilation device and must be available at all times (see www.inventer.eu/downloads). When handing the system to a third party, the infor- mation regarding access to the installation instructions must be handed over also. - Page 6 USER AND SAFETY INSTRUCTIONS • NOTICE: The ventilation device is not suitable for drying out buildings. Do not put it into operation until the construction work has been completed. • NOTICE: Contamination of components, e.g. by plaster residue, will damage the components! Seal the ventilation device/air outlets of the ventilation device so they are dust-tight throughout the construction work.
- Page 7 The ventilation device complies with the technical safety requirements and standards of electrical appliances for domestic use. It conforms to current European Union and United Kingdom directives. The full text of the EU declaration of conformity is available at the following Internet address: https://www.inventer.eu/downloads/ . iV-Smart+ ventilation device | Installation instructions...
-
Page 8: System Overview: Iv-Smart+ Ventilation Device
The operating instructions for the controller are not part of this documentation. In connection with the inVENTer Connect controller platform, it is mandatory to use the Connect inner cover. "Flex weather protection hood" external termination available in stainless steel or optionally in aluminium [increased salt resistance]. -
Page 9: Construction
SYSTEM OVERVIEW: IV-SMART+ VENTILATION DEVICE • Standard variant: iV-Smart+ ventilation devices hereinafter referred to as the "Standard variant") with driving rain-proof weather protection hood (white/grey/anthracite/custom colour). • Corner variant: iV-Smart+ Corner ventilation devices (hereinafter referred to as the "Corner variant") for integration of the external termination in the window reveal (white/grey/anthracite/ custom colour). -
Page 10: Function
You operate the iV ventilation systems intuitively with the matching inVENTer controllers. Different operating modes or the air volume flows can be set individually. - Page 11 SYSTEM OVERVIEW: IV-SMART+ VENTILATION DEVICE Ventilation device iV-Smart+ The iV-Smart+ ventilation devices are used to provide ventilation for living rooms and bedrooms. An integrated ceramic thermal accumulator ensures optimum heat recovery. The iV-Smart+ ventilation device is a ventilation device with simple airflow and works according to the principle of heat recovery by changing the direction of the fan.
-
Page 12: Control Elements
SYSTEM OVERVIEW: IV-SMART+ VENTILATION DEVICE Control elements The ventilation device is operated via an inVENTer system controller. Depending on the controller, different operating modes and functions can be set. Basic controls Designation Pure sMove Number of controll- Max. 4 s4: Max. 4 able ventilation devices s8: Max. - Page 13 SYSTEM OVERVIEW: IV-SMART+ VENTILATION DEVICE Multi-zone control Designation MZ-Home inVENTer Connect Operating Unit & Clust-Air module Easy Connect e16 Number of controll- Max. 16 Max. 16 able ventilation devices (excl. sensors) (incl. sensors) Multi-zone control max. 4 zones with max. 4 devices max.
-
Page 14: Preparing For Installation
PREPARING FOR INSTALLATION Preparing for installation Installation position • The installation location can be derived from the position suggested by the ventilation planning. The exact positioning of the individual devices and control devices must be checked on site and, if necessary, adjusted. Consult the responsible planner about this! For optimum function, it is recommended that the ventilation device is installed at the appropri- ate point in the upper wall area (e.g. -
Page 15: Position Of The Wall Opening
PREPARING FOR INSTALLATION Position of the wall opening For the positioning of the wall sleeve of other variants of your ventilation device ,see the installation instructions for your specific external termination. Standard ventilation device variant [Smart weather protection hood] ≥ 250 ≥... -
Page 16: Sectional Drawing Of The Ventilation Device
PREPARING FOR INSTALLATION Sectional drawing of the ventilation device For sectional drawings of other variants of your ventilation device, see the installation instructions for your specific external termination. Sectional drawing of the iV-Smart+ standard variant ventilation device 1 – 2° ≥... -
Page 17: Dimensional Drawings Of Components
PREPARING FOR INSTALLATION Dimensional drawings of components Smart weather protection hood Ø Smart weather protection hood cover Smart weather protection hood base plate Figure 4: Dimensional drawing of Smart weather protection hood 1 Weather protection hood base plate 4 Panel fixing screws (4x) 2 Mounting hole exterior wall 5 Weather protection hood panel 3 Drip rail... -
Page 18: Dimensions
PREPARING FOR INSTALLATION Flair inner cover A - A □ 233 Figure 6: Dimensional drawing of Flair V-233x233 inner cover 1 Inner cover panel 4 Inner cover base plate 2 Sound insulation insert (optional) 5 Spacer (4 x) 3 Retaining plate IB V-233x233 6 Interior wall fixing borehole Dimensions Depth/length... -
Page 19: Installation And Assembly
INSTALLATION AND ASSEMBLY Installation and assembly Read the section carefully before installation to avoid installation errors. The installation and connection of the ventilation device must be carried out by qualified personnel. Check the scope of supply Check the delivery for completeness and transport damage upon receipt using the delivery note. Report missing items immediately. -
Page 20: Create Wall Opening
INSTALLATION AND ASSEMBLY Create wall opening CAUTION Falling masonry when creating the wall opening can lead to physical injuries and /or damage to property! • Install protection against falling masonry on building exterior. • Remove objects from the immediate vicinity of the building's exterior. In new buildings we recommend the use of the optional Simplex D160 wall installation system, D180 wall block, or Woodplex for timber post and beam construction. -
Page 21: Laying The Cables To The Wall Opening Of The Ventilation Device
LiYY 3x0.75 mm² MZ-Home Clust-Air module CAM17 in the ventilation zone Installation cable inVENTer Connect inner cover House distribution, 230 V AC, Connect operating voltage ventilation sub-distribution e. g.: NYM-J 3x1.5 mm²... - Page 22 Operated in pairs supply device blocks sMove: Control device MZ-Home: Clust-Air module 6 – 16 V DC inVENTer Connect controller platform 230 V AC System communication by cable: Cable NYM-J, wire cross-section 1.5 mm² House distributor Operating device: Easy Connect e16...
-
Page 23: Installing The Wall Sleeve
INSTALLATION AND ASSEMBLY Installing the wall sleeve Measuring tape, angle grinder, spirit level, non-pressing 2K polyurethane foam, cutter, mounting wedge set and styrofoam discs Requirements: • The wall opening Ø 180 mm is finished. • The cables to the wall opening of the ventilation device have been laid. - Page 24 INSTALLATION AND ASSEMBLY ► Remove the styrofoam discs from the wall sleeve. ► Insert the wall sleeve into the wall opening so it is flush with the interior wall. Note the thickness of the plaster. The recess for the connection cables is located on the interior wall side and near the cables laid to the wall opening.
- Page 25 INSTALLATION AND ASSEMBLY NOTICE: Interruption of the thermal insulation composite system. Damage to the building structure! • During installation, replace the wall structure as far as the wall sleeve and if necessary guide the housing (flush-mount- ed inner covers) towards it. •...
-
Page 26: Installing The External Termination Of The Standard Ventilation Device Variant
INSTALLATION AND ASSEMBLY Installing the external termination of the standard ventilation device variant The assembly of the external termination variants is not part of this documentation! It can be found in the installation instructions for the respective external termination. NOTICE Installing on an unfinished exterior wall leads to damage to the exterior wall! •... - Page 27 INSTALLATION AND ASSEMBLY NOTICE: Damage to masonry/exterior wall due to incorrectly aligned drip edges! • Make sure that the slopes of both drip edges are directed towards the floor. ► Slide the base plate onto the projecting wall sleeve. Alignment of the drip edges: the slope leads to the ground.
- Page 28 INSTALLATION AND ASSEMBLY ► Hook the panel of the weather protection hood from the front into the side screws (blue arrows) of the base plate. The captive washers are located between the panel and the screw. ► Engage the panel downwards. ►...
- Page 29 INSTALLATION AND ASSEMBLY Installing the Flex weather protection hood Spirit level, pen, power drill with Ø 8mm drill bit, cordless screwdriver, rawl plugs (wall- plugs for insulation for insulated exterior walls), permanently elastic external sealant, sealing tape, screws Requirements: • The exterior wall is completed and even. •...
- Page 30 INSTALLATION AND ASSEMBLY ► Insert the rawl plugs into the boreholes. ► Screw the weather protection hood base plate into the rawl plugs using 4 screws and washers. TIP: When attaching the base plate to exterior walls with insulation or when using the wall installation block/Simplex wall installation system, use wallplugs for insulation for fixing purposes.
-
Page 31: Inserting The Thermal Accumulator Insert
INSTALLATION AND ASSEMBLY Inserting the thermal accumulator insert NOTICE Do not store/stack the thermal accumulator insert outside the wall sleeve as doing so will damage the thermal accumulator's ceramic. • Insert the thermal accumulator immediately after removing it from the packaging. Requirements: •... -
Page 32: Electrical Connection Of The Reversible Fan
INSTALLATION AND ASSEMBLY Electrical connection of the reversible fan The function of the iV-Smart+ ventilation system requires the simultaneous operation of two iV-Smart+ ventilation devices in push-pull mode. This section therefore describes the connection of a pair of devices, not a single device. NOTICE Incorrect electrical connection will damage the fan motor! •... - Page 33 INSTALLATION AND ASSEMBLY In paired operation, one reversible fan starts in extract air mode, the other in supply air mode. This start direction is determined by the different connection sequence of the three fan BUS cables in the plug-in connector. DIR1 (III) ►...
-
Page 34: Check Function And Complete Fan Installation
INSTALLATION AND ASSEMBLY Plug-in connector (cable coming from controller) Plug-in connector on the fan cable Start direction extract air Start direction supply air Terminal Terminal Terminal Colour Meaning Colour Meaning Colour block block block Blue DIR1 (III) Signal direction 1 White DIR2 (V) Signal direction 1... -
Page 35: Installing The Inner Cover
INSTALLATION AND ASSEMBLY Installing the inner cover The assembly of any interior termination variants is not part of this documentation! It can be found in the separate installation instructions for the respective inner cover/the Connect controller platform. Spirit level, pencil, drill with 6 mm bit, cordless screwdriver, rawl plugs Requirements: •... - Page 36 The position arrows on the back of the inner cover panel point upwards. 4 x CLICK Check: The inVENTer logo is located at the bottom right. ► Press the locking lugs inwards on the spacers. ► Slide the inner cover panel onto the spacers.
-
Page 37: Technical Data
TECHNICAL DATA Technical data General specifications Feature Value Operating range [°C] -20 – 50 Free from aggressive gases, dust and Extract air/outdoor air oils Flow rate in reversed mode [m³/h] 8.5 – 29 Extract airflow [m³/h] (EN 13141-8) 17 – 58 14 - 37 [with IB Flair incl. -
Page 38: Iv-Smart+ Energy Label According To Erp Directive, Regulation 1254/2014
TECHNICAL DATA iV-Smart+ energy label according to ErP Directive, Regulation 1254/2014 On the energy label you will find the following information from the product data sheet: • Energy efficiency class (SEC class) • Sound power level L • Maximum air flow (supply air) Demand-controlled Manually controlled iV-Smart+;... -
Page 39: Specifications According To Erp Directive, Regulation 1254/2014
Specifications according to ErP Directive, Regulation 1254/2014 iV-Smart+ ventilation device, demand-controlled: iV-Smart+ product data sheet according to EU Ordinance 1254/2014 dated 11 July 2014 Description Values Supplier inVENTer GmbH iV-Smart+, iV-Smart+ Corner, Model identifier iV-Smart+ Nordic iV-Smart+ Sylt, iV-Smart+ Top Cold -88.068... - Page 40 TECHNICAL DATA iV-Smart+ ventilation device, manually controlled: iV-Smart+ product data sheet according to EU Ordinance 1254/2014 dated 11 July 2014 Description Values Supplier inVENTer GmbH iV-Smart+, iV-Smart+ Corner, Model identifier iV-Smart+ Nordic iV-Smart+ Sylt, iV-Smart+ Top Cold -82.062 SEC class / Specific Energy Con- Average -39.422...
-
Page 41: Scope Of Supply
SCOPE OF SUPPLY Scope of supply Standard components All standard components are also available as spare parts. Further accessories and spare parts can be found in the separate accessories overview. Contact your local distributor to order components for your ventilation system. Component Item number iV-Smart+... -
Page 42: Troubleshooting And Disposal
TROUBLESHOOTING AND DISPOSAL Troubleshooting and disposal Troubleshooting Fault Possible cause Remedy No electrical power. Check fuse. Check wiring for correct polarity. Installation error. Check all connectors for correct fit. Check the use of wire ferrules. Fan failure Fan defective. Replace fan. Controller/power supply Switching controller/power supply. -
Page 43: Warranty And Guarantee
Manufacturer guarantee inVENTer GmbH provides a five-year warranty for all electrical components and the wall sleeve, as well as a 30-year warranty on the ceramic component of the thermal accumulator. This covers premature product wear. - Page 44 GmbH Ortsstraße 4a D-07751 Löberschütz Germany www.inventer.eu Subject to modifications. We accept no liability for printing errors. Item number: 5001-0038 Version: 2.0 – 06/2022...
