I V- S M A R T+ C O R N E R V E N T I L AT I O N U N I T

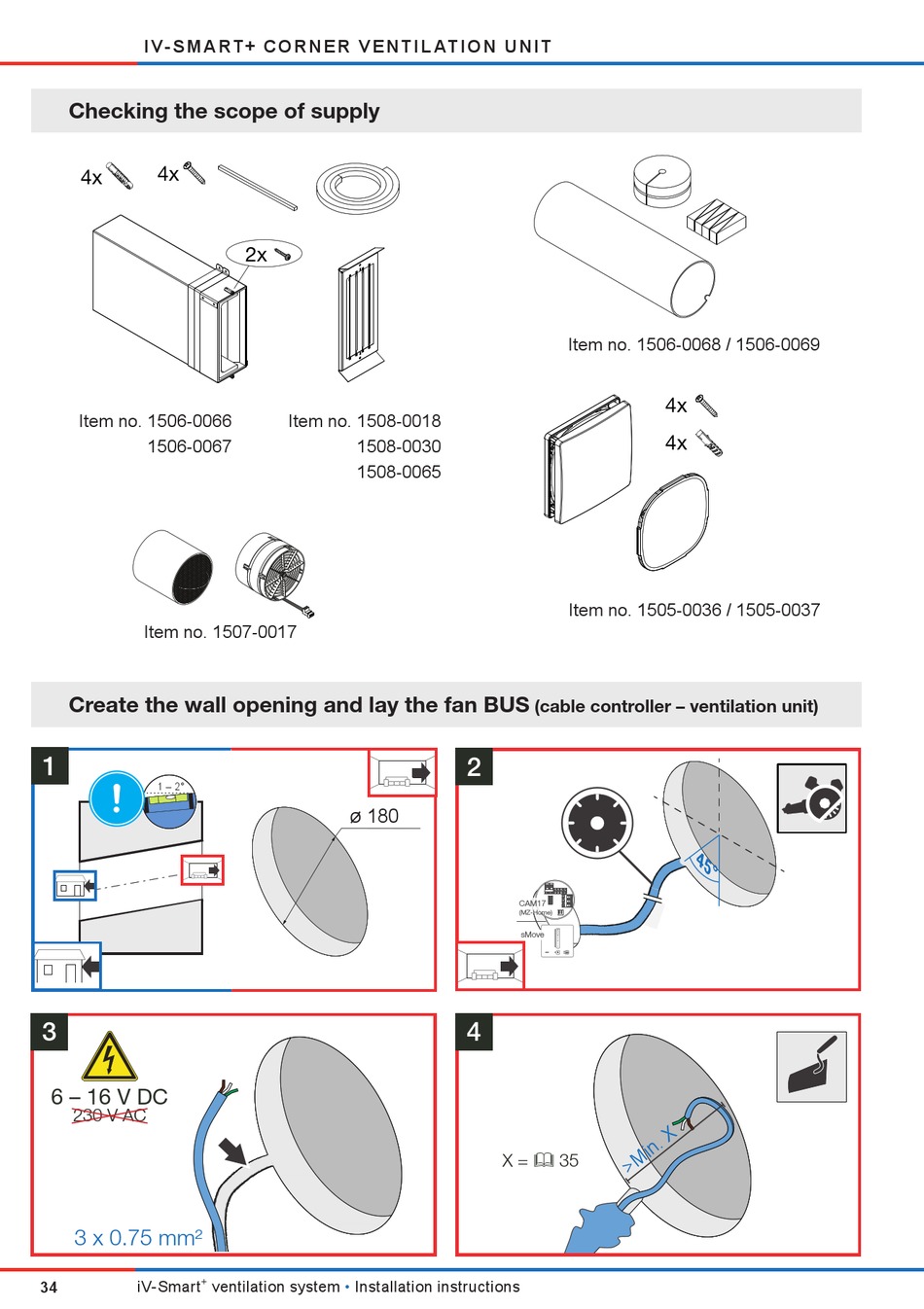

Checking the scope of supply
4x
4x
Item no. 1506-0066
1506-0067
Item no. 1507-0017
Create the wall opening and lay the fan BUS
1
1 – 2°
3
6 – 16 V DC
230 V AC
3 x 0.75 mm²
+
iV-Smart ventilation system
34
2x
Item no. 1508-0018
1508-0030
1508-0065
ø 180
• Installation instructions
Item no. 1506-0068 / 1506-0069
Item no. 1505-0036 / 1505-0037
(cable controller – ventilation unit)
2
CAM17
(MZ-Home)
sMove
4
X =  35
