AJAX Hub User Manual page 186

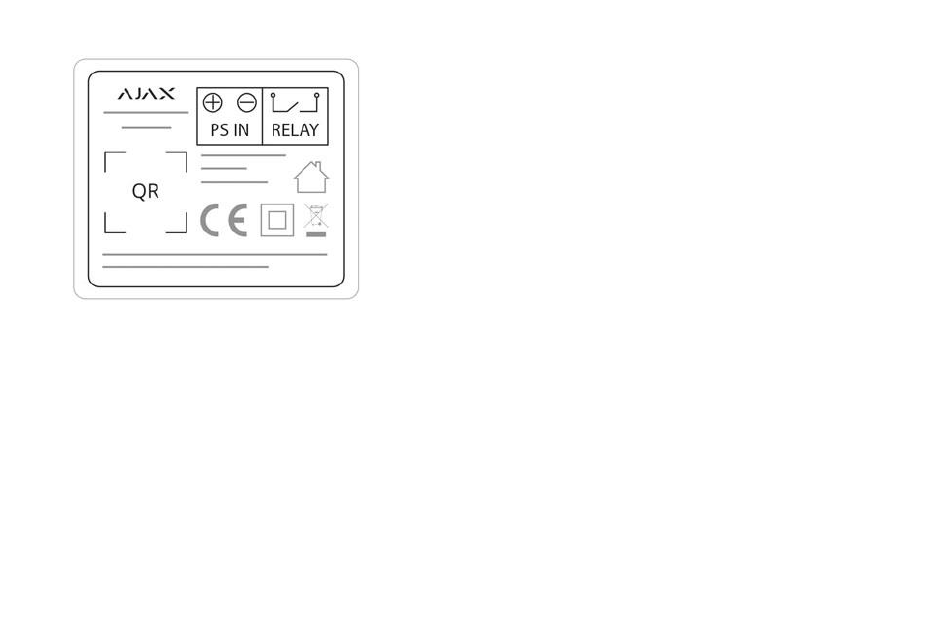

2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location
room.
3. Select Add — the countdown will begin.
4. Press the Relay function button.
For the detection and interfacing to occur, the device should be located within the coverage area of the wireless
network of the hub (at a single protected object).
Request for connection to the hub is transmitted for a short time at the time of switching on the device.
If the connection to the hub fails, wait for 30 seconds and retry the connection procedure.
The Relay connected to the hub will appear in the list of devices of the hub in the application. Update of the detector
statuses in the list depends on the device inquiry time set in the hub settings, with the default value – 36 seconds.
