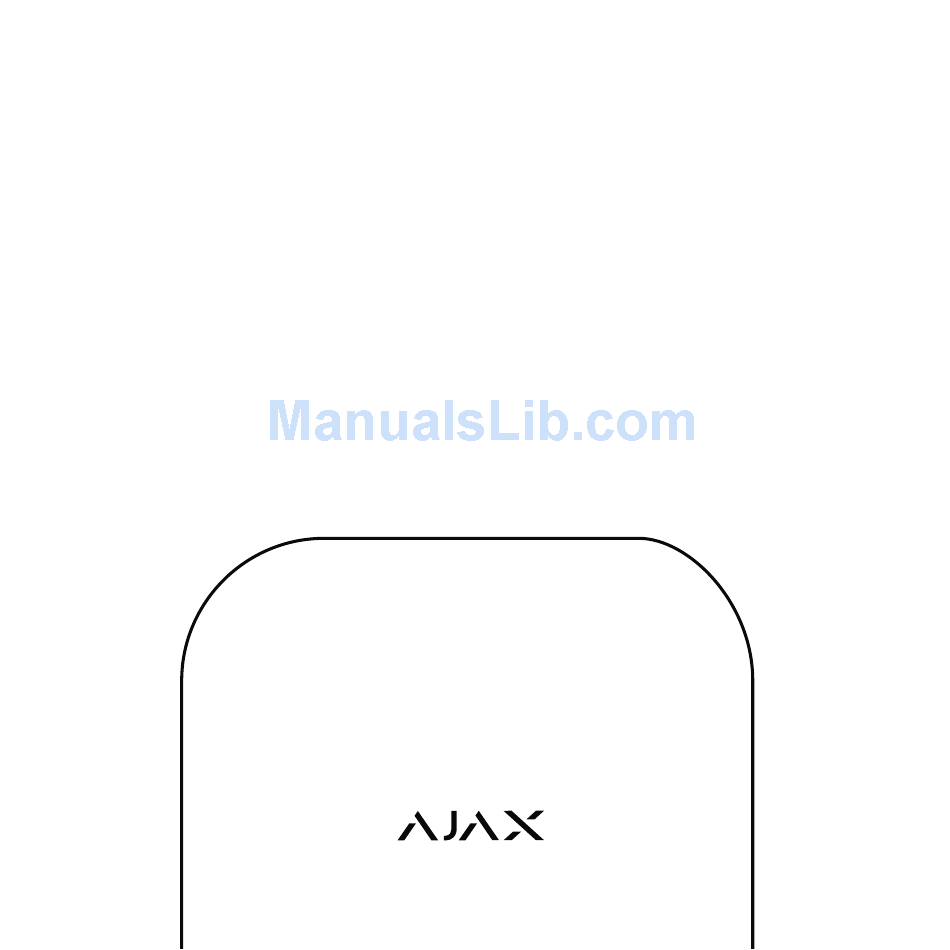

- Page 1 Ajax Hub Quick Start <!--...
- Page 2 .1999. = 9 667 = 12 623 = 0 0 9/667 12/623@ Follow this guide to install and connect to your Ajax Hub and neutralize any threats of burglary, fire or flood. 6 6 6 9 9 9 9 167 6 314 0 2 23-1 09...
- Page 3 Firmly slide down the back cover, and remove it from the hub. Inside, you’ll see slots for a SIM card, power cable and Ethernet .3 0. 0 0 9/667 12/623$@ 92 5 435-3 896 5 784 167 6 314 .3 0. 0 0 9/667 12/623$@...
- Page 4 The Ajax Hub relies on a GSM connection as a backup communi- cation channel, so you’ll need a micro-SIM card. Insert it into the SIM card slot.
- Page 5 Connect the power adapter to the hub and plug it into a power outlet. Press the power button and hold it for 2 seconds until the Ajax logo lights red.
- Page 6 Connect the Ethernet cable to a routeror an internet outlet.
- Page 7 Connect the Ethernet cable to a routeror an internet outlet. <!-- <!-- = 1 1 18/0/0? .2000. <!-- = 9 667 There is no network connection. 6 6 6 9 9 9 2 658 12 422 0 5 2 658 12 422 0 5 9 508 0 5 6 314 2 Lime: 2 658 12 The hub is connected to either...
- Page 8 Attach the Ajax Hub to the wall using the wall screws from the starter kit. 18/0/0? --> --> .2000. .1999. .3 0. .1999. .3 0. = 9 667 = 12 623 = 0 0 9/667 12/623@ 0 0 9/667 12/623$@ 18/0/0? -->...
- Page 9 Install the Ajax application on your smartphone (iOS / Android) or open your web browser, and go to app.ajax.systems. A step-by-step guide will help you register and set up the hub. Supported from iOS 7.1 Supported from Android 4.1 If you have any difficulties, please contact technical support:...
- Page 10 The manufacturer warrants the enclosed product (“Product”) against defects in material or workmanship for a period of two (2) years from the original date of purchase. If you have technical problems with an Ajax product purchased from one of our partners, please contact them to arrange for repair, exchange or refund in accordance with the warranty.
- Page 11 Damage caused by service, including the installation of unauthorized updates or extensions, or repairs performed by anyone who is not a representative of Ajax Systems. Damage caused by connecting Ajax devices to the products of other manufacturers. Replacement of consumable parts, including batteries or cables, unless damage is caused by defects in materials or workmanship.
- Page 12 Yes, as long as the test shows a good enough radio communication. But you will still need to secure the hub on the table with the provided screws. This is required to ensure the alarm will work if an intruder tries to dismantle the Ajax Hub.
- Page 13 Using the equipment in the Ajax StarterKit and protecting the apartment system use? of an average family of 3, Ajax should consume no more than 5MB of data per day. The Ajax mobile application will use the same amount. What does “The hub cannot perform the operation at the moment”...
- Page 14 Tech specs Color: Black/White Size: 162.7x162.7x35.9 mm Weight: 320 g Power: 110-250 V AC Radio signal power: 25 mW Operating temperature range: From 0° (+32°F) to +50° (+122°F) Connection: GSM (850/900/1800/1900 MHz), Ethernet Communication protocol: Jeweller (868/915 MHz, depending on the country of sale) Operating range: Up to 2000 m (6552 ft) (in open space) Back-up battery:...
- Page 15 Components Ajax Hub Power cable Ethernet cable Manual Installation set GSM starter kit* *Depending on the country of sale...
- Page 16 When security is art If you have any questions, technical issues or wish to see a list of supported devices, please contact us: support@ajax.systems www.ajax.systems www.facebook.com/ajax.systems...
