Operational Amplifier Functions

The OPAs are connected together internally in a specific way and the output of OPAs can also be
connected to the internal comparators as shown in the block diagram. Each of the OPAs has its own
control register, with the name OPA1C0, OPA1C1, OPA2C0, OPA2C1 and OPA2C2 which are used
to control the enable/disable function, the calibration procedure and the programmable gain function
of OPA2.
OPA1 Switch Control

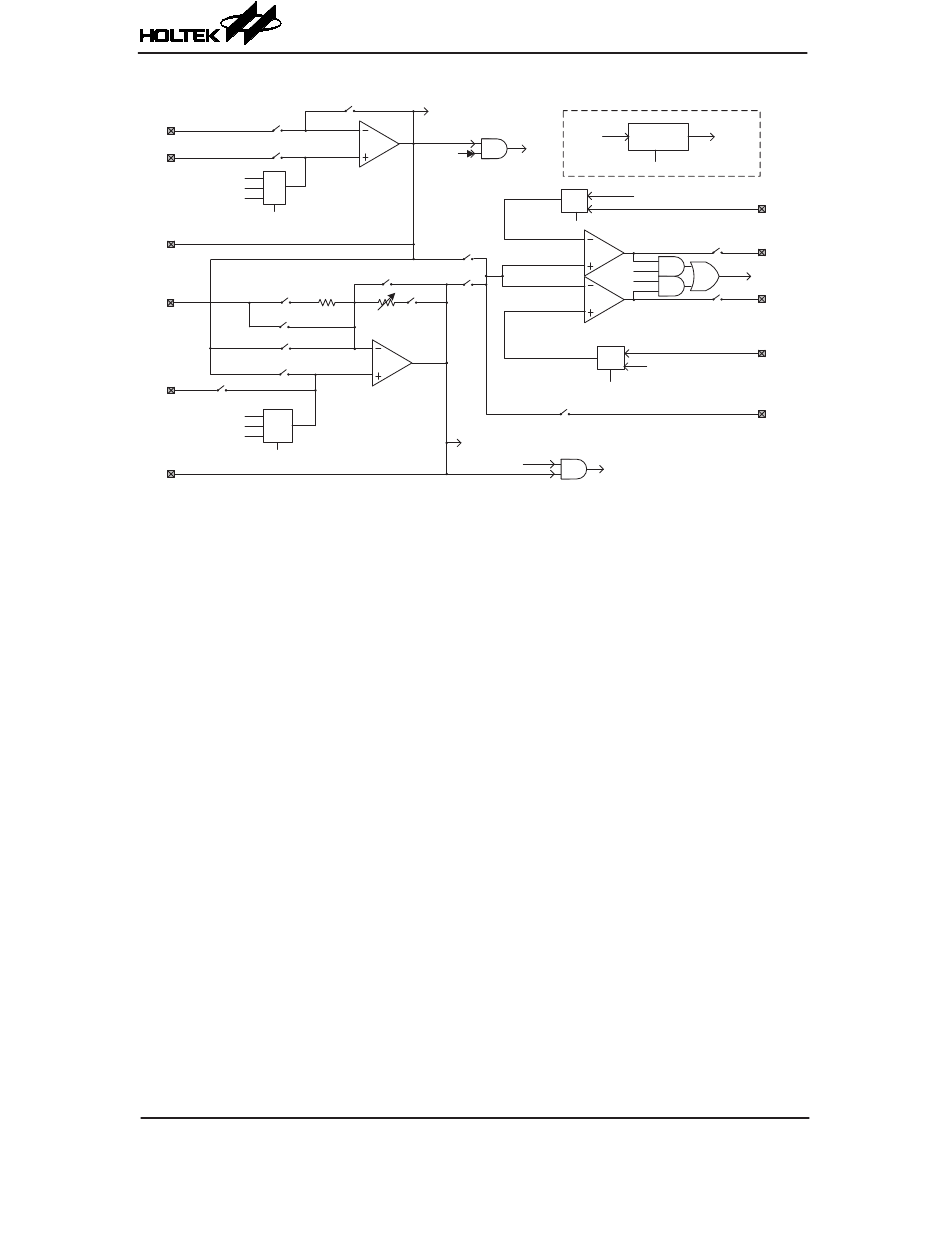

The following diagram and table illustrate the OPA1 switch control setting and the corresponding
connections. Note that some switch control selections will force some switches to be controlled by
hardware automatically.
For example:
• The S7C is closed when A1O2CIN=1 and the S7C is opened when A1O2CIN =0.
• The A1PS=1 will force A1PSEL1, 0=(00), i.e. S10C, S9C, S8C will be opened.
• When the A1EN=0, S6C switch are opened by hardware, then the related I/O pins can be used as
the other functions.
