6.13. If when the reducer motor rotates makes a noisy is due to a lack of lubrication- you have to lubricate only the
auger screen, not the reducer motor, see point 5.11.
PELLETS FALL BUT THE STOVE DOES NOT TURN ON:
6.14. Make sure the glass door is well closed.
6.15. Make sure the burn pot is correctly placed, that it is in contact with the resistance tube and the central hole
of the burn pot goes along with this tube.

Burn pot.

Burn pot support.

Resistance air inlet.

Resistance drive.

Start-up resistance.

Resistance tube support.

Screw of resistance.

Resistance support guide.

Resistance support tube, badly fixed.

Resistance support tube, badly fixed.

Start-up resistance, badly fixed.

Resistance support tube; badly fixed.
6.16. Pay special attention to the cleaning of the stove as excess of dust may prevent the stove from starting on.
THE START-UP RESISTANCE DOES NOT WORK:
6.17. Make sure the resistance heats, take the burn pot and see if it becomes light red (do not touch).
THE GAS OUTLET EXTRACTOR DOES NOT WORK OR DOES NOT WORK CORRECTLY:
6.18. Make sure the motor rotates properly by rotating it with your hand (the stove should be disconnected to do
so).
6.19. Check that power reaches the motor, by turning the stove on.
6.20. Also check the exhaust connection strip and the C.P.U.
THE CONVECTION FAN DOES NOT ROTATE:
6.21. Make sure that the turbine is not stalled by unplugging the stove. Then access to the right side and rotate it
with your hand to ensure that it rotates perfectly.
THE STOVE TURNS OFF:
6.22. There might be no pellets in the stove.
6.23. A forgotten set programme might have stopped the stove.
6.24. A bad quality of pellets, humidity can be causes of unexpected stops.
6.25. If the stove turns off and there are half burnt pellets in the burn pot, this might be due to a lack of cleaning.
Revise chapter related to cleaning and maintenance.
41

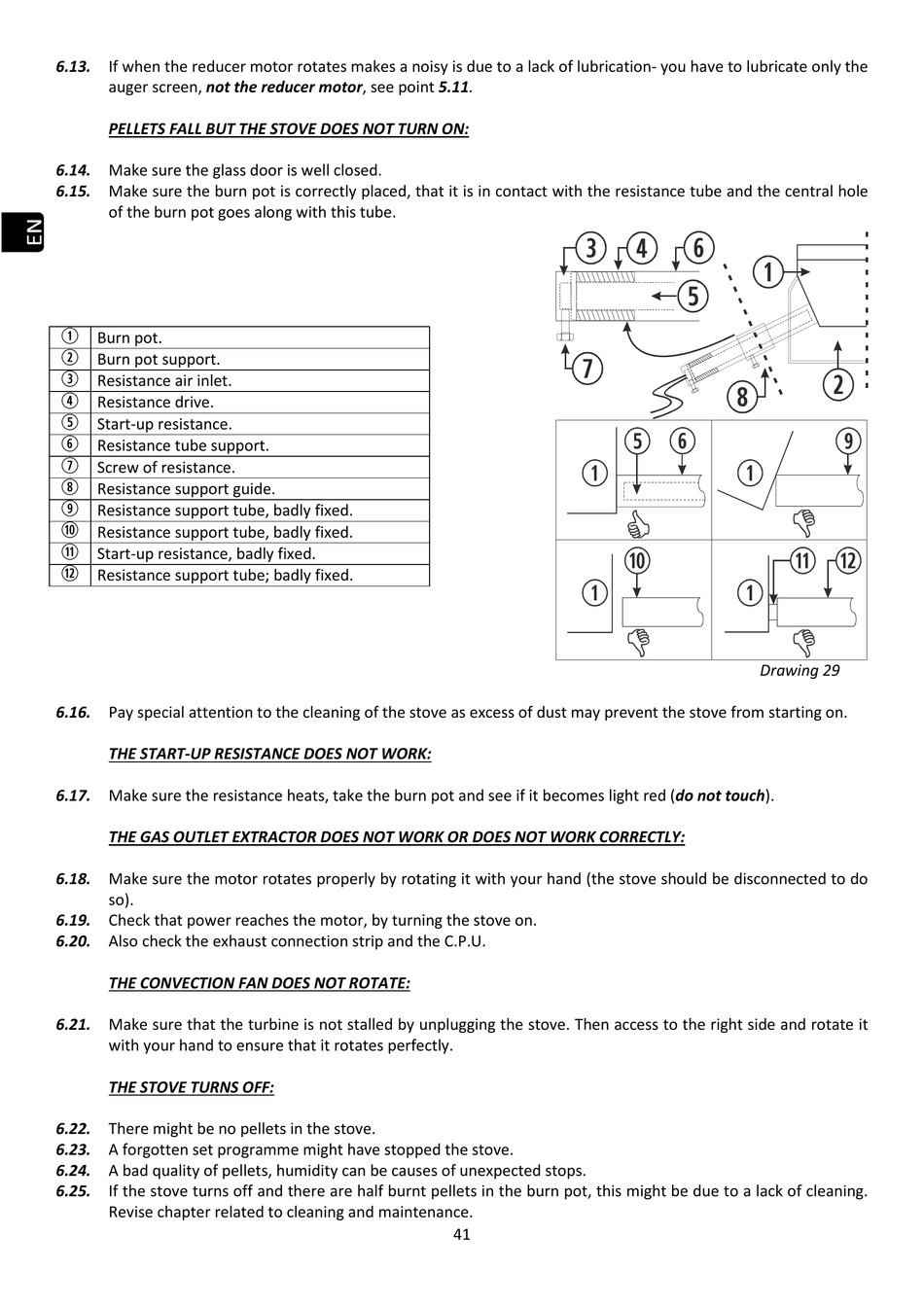

Drawing 29
