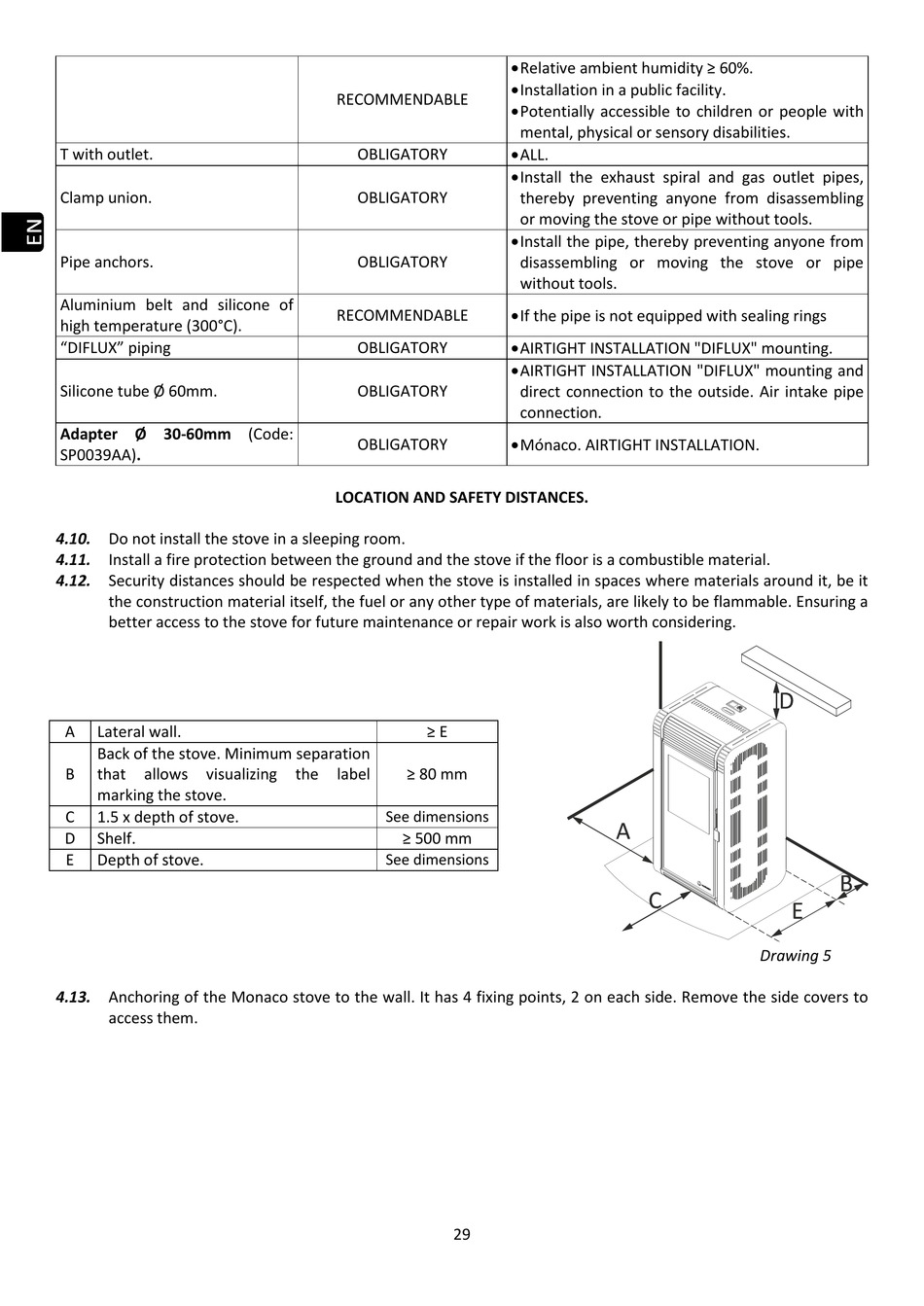

ECOFOREST Basic Installation And Maintenance Manual page 30

T with outlet.
Clamp union.
Pipe anchors.
Aluminium belt and silicone of
high temperature (300°C).
"DIFLUX" piping
Silicone tube Ø 60mm.
Adapter Ø 30-60mm (Code:
SP0039AA).
4.10. Do not install the stove in a sleeping room.
4.11. Install a fire protection between the ground and the stove if the floor is a combustible material.
4.12. Security distances should be respected when the stove is installed in spaces where materials around it, be it
the construction material itself, the fuel or any other type of materials, are likely to be flammable. Ensuring a
better access to the stove for future maintenance or repair work is also worth considering.
A Lateral wall.
Back of the stove. Minimum separation
B that allows visualizing
marking the stove.
C 1.5 x depth of stove.
D Shelf.
E Depth of stove.
4.13. Anchoring of the Monaco stove to the wall. It has 4 fixing points, 2 on each side. Remove the side covers to
access them.
RECOMMENDABLE
OBLIGATORY
OBLIGATORY
OBLIGATORY
RECOMMENDABLE
OBLIGATORY
OBLIGATORY
OBLIGATORY
LOCATION AND SAFETY DISTANCES.
≥ E
the label ≥ 80 mm
See dimensions
≥ 500 mm
See dimensions
29
 Relative ambient humidity ≥ 60%.
 Installation in a public facility.
 Potentially accessible to children or people with
mental, physical or sensory disabilities.
 ALL.
 Install the exhaust spiral and gas outlet pipes,
thereby preventing anyone from disassembling
or moving the stove or pipe without tools.
 Install the pipe, thereby preventing anyone from
disassembling or moving the stove or pipe
without tools.
 If the pipe is not equipped with sealing rings
 AIRTIGHT INSTALLATION "DIFLUX" mounting.
 AIRTIGHT INSTALLATION "DIFLUX" mounting and
direct connection to the outside. Air intake pipe
connection.
 Mónaco. AIRTIGHT INSTALLATION.
Drawing 5
