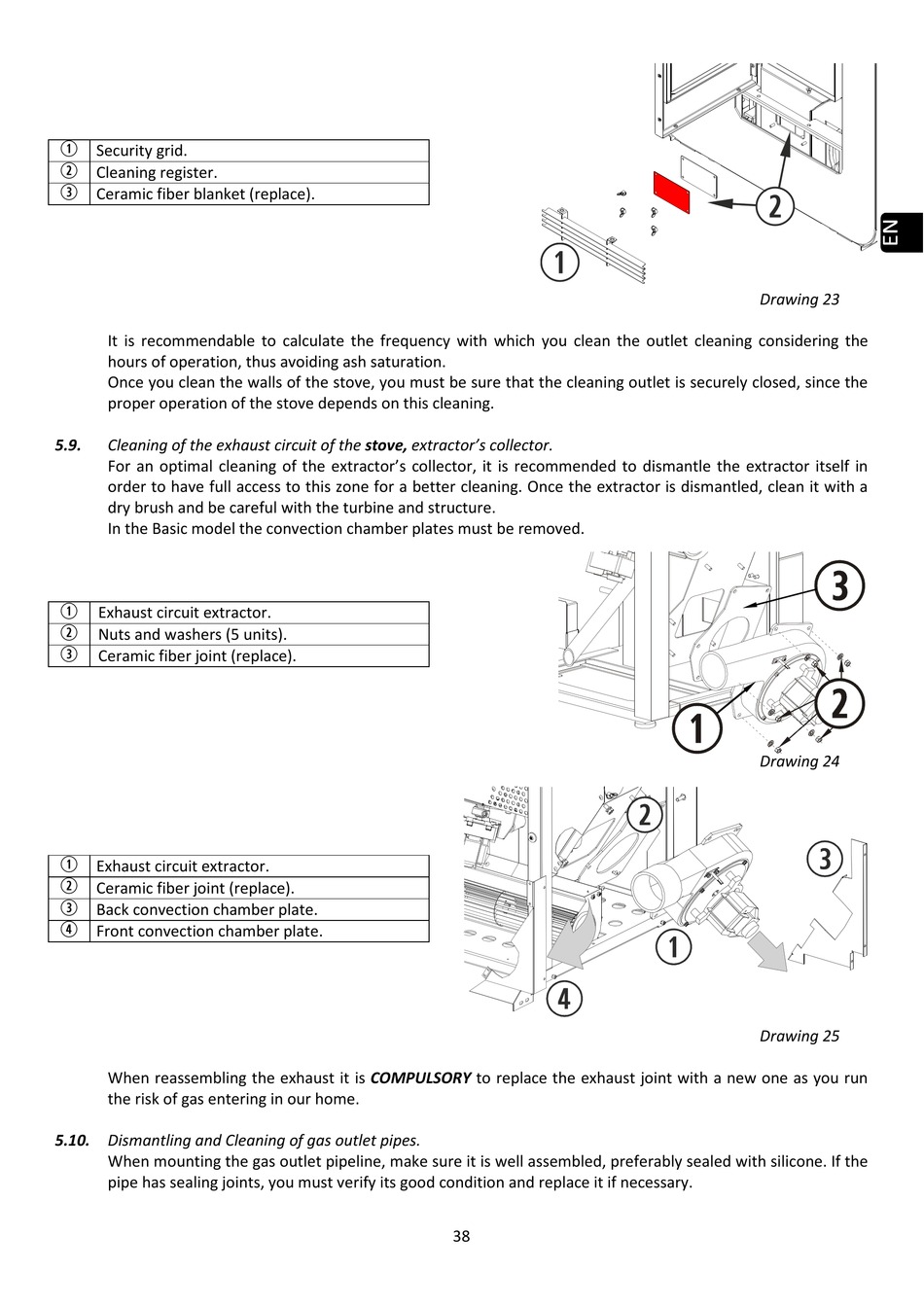

ECOFOREST Basic Installation And Maintenance Manual page 39


Security grid.

Cleaning register.

Ceramic fiber blanket (replace).
It is recommendable to calculate the frequency with which you clean the outlet cleaning considering the
hours of operation, thus avoiding ash saturation.
Once you clean the walls of the stove, you must be sure that the cleaning outlet is securely closed, since the
proper operation of the stove depends on this cleaning.
5.9. Cleaning of the exhaust circuit of the stove, extractor's collector.
For an optimal cleaning of the extractor's collector, it is recommended to dismantle the extractor itself in
order to have full access to this zone for a better cleaning. Once the extractor is dismantled, clean it with a
dry brush and be careful with the turbine and structure.
In the Basic model the convection chamber plates must be removed.

Exhaust circuit extractor.

Nuts and washers (5 units).

Ceramic fiber joint (replace).

Exhaust circuit extractor.

Ceramic fiber joint (replace).

Back convection chamber plate.

Front convection chamber plate.
When reassembling the exhaust it is COMPULSORY to replace the exhaust joint with a new one as you run
the risk of gas entering in our home.
5.10. Dismantling and Cleaning of gas outlet pipes.
When mounting the gas outlet pipeline, make sure it is well assembled, preferably sealed with silicone. If the
pipe has sealing joints, you must verify its good condition and replace it if necessary.

38

Drawing 23
Drawing 24
Drawing 25
