Page 1 DVR (WITHOUT HDD) User’s Manual Version 1.01...
Page 2 Thanks for purchasing our products, if you have any questions or need, please feel free to contact us. The manual is the DVR (WITHOUT HDD) product manuals, support functions due to the different models differ, please prevail in kind. This manual is intended for you as an operating system and programming reference tool. You can find information about the features and commands in this manual, as well as a detailed menu tree and Quick Start Guide.
Page 3 CAUTION: • Do not make objects fall to vigorously shake the device or equipment, and to place the device away from the presence of magnetic interference. Avoid installing the surface vibration or vulnerable areas (ignore this may damage the device). •...
Page 4: Table Of Contents
Table of Contents Introduction ................................1 1.1. Product Brief ..............................1 1.2. Main Functions ..............................1 Unpacking and Cable Connection ........................... 3 2.1. Unpacking ................................3 2.2. Hard Disk Installation ............................4 2.3. Shelf installation ..............................4 2.4. Front Panel ......................Error! Bookmark not defined. 2.5.
Page 5 4.1.1.7. IPC Parameter ..........................38 4.1.2. Event ..............................39 4.1.2.1. Motion Detect ..........................39 4.1.2.2. Video Mask ............................. 42 4.1.2.3. Video Loss ............................43 4.1.2.4. Abnormality ............................ 44 4.1.3. Network ..............................45 4.1.3.1. TCP/IP ............................. 45 4.1.3.2. DDNS .............................. 46 4.1.3.3.
Page 6 5.9.1.3.1. Encode ............................87 5.9.1.3.2. Path ............................... 88 5.9.1.4. Channel Name ........................... 89 5.9.1.5. Channel Type ............................ 89 5.9.2. Network ..............................90 5.9.2.1. TCP/IP ............................... 90 5.9.2.1.1. TCPIP ............................90 5.9.2.1.2. Instaon ............................91 5.9.2.2. Connection ............................92 5.9.2.3. Wifi ..............................93 5.9.2.4.
Page 7: Introduction

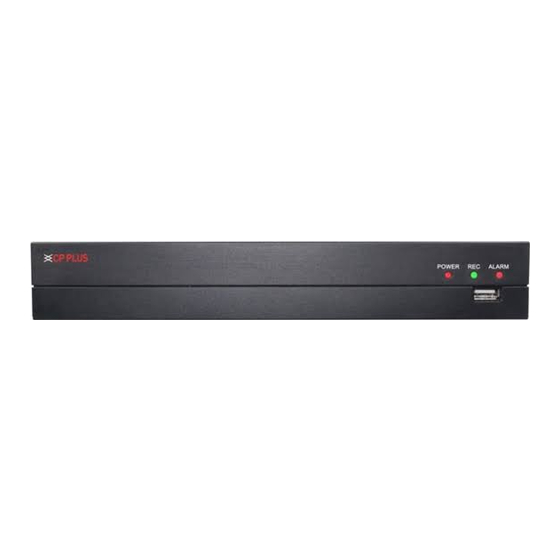

1. Introduction 1.1. Product Brief The series DVR (WITHOUT HDD) is designed especially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264 mp video compressed format which insures the high quality image, low coding ratio and single frame playing.
Page 8 ➢ Communication interface With RS485 interface, alarm input and PTZ control With RS232 interface, scalable keyboard connection to the master, and connected to the computer serial port for system maintenance and upgrades, and matrix control With standard Ethernet interfaces, network remote access feature.
Page 9: Unpacking And Cable Connection
2. Unpacking and Cable Connection 2.1. Unpacking When you receive the product: First, check whether the packaging equipment has obvious damage. Selection of protective packaging materials during transport can cope with most of the unexpected hit. Then, remove the device; remove the plastic protective film DVR (WITHOUT HDD), check whether there is any visible damage to the outside.
Page 10: Hard Disk Installation
2.2. Hard Disk Installation When you use, first install the hard drive, the machine can install two hard drives inside (capacity no limit). ①disassemble the screw ②disassemble the cover ③fix the screw of hard disk ④fix the screw of hard disk ⑤connect the data wire ⑥connect the power wire...
Page 11: Audio/Video Input And Out Connections
2.4. Audio/Video Input and Out Connections 2.4.1. Video Input DVR (WITHOUT HDD) video input port to the BNC input signal requirements: PAL / NTSC BNC (1.0VP-P, 75Ω). Video signal should comply with national standards, a higher signal to noise ratio, low distortion, low interference;...
Page 12: Alarm Input And Output Connections
devices. In the case of external speakers and microphone cannot be achieved spatial isolation, it is easy to produce output howling phenomenon. At this point the measures to be taken are: • The use of directional better pickups. • Adjust speaker volume, making it lower than the threshold to produce the whistle. •...
Page 13: Alarm Input Port Description
1) Alarm input 1,2,3,4 2) Ground 3) RS232 serial interface to send and receive 4) RS485 interface 5) Alarm inputs 5,6,7,8 6) Ground 7) Alarm output 16 External alarm interface schematic: ① ⑥⑧ alarm input ②⑦ ground ③ alarm output RS485④RS232 Parameters Meaning R, T...
Page 14: Alarm Output Port Description
• Please parallel connect the ground of the DVR (WITHOUT HDD) and the ground of the alarm detector. • Please connect the NC port of the alarm sensor to the DVR (WITHOUT HDD) alarm input (ALARM). • Use the same ground with that of DVR (WITHOUT HDD) if you use external power to the alarm device.
Page 15: Connect Line 485
Connect Line 485 When the DVR (WITHOUT HDD) receives a camera control command, it transmits that command up the coaxial cable to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the unit. To enable the operation, connect the PTZ device to the RS485 (A, B) input on the DVR (WITHOUT HDD).
Page 16: Basic Operations
3. Basic Operations 3.1. Turn On Plug the power supply and turn on the power supply switch. Power supply indicator light shining indicates turning on the video recorder. After the start-up you will hear a beep sound. The default setting of video output is multiple-window output mode. If the start-up time is within the video setting time, the timing video recording functions will start-up automatically.
Page 17 login user whose permission can be revised but not its password. See in Figure 3.1 Error! Reference source not found. Figure 3.1 Password protection: If the password is continuous wrong three times, the alarm will start. If the password is continuous wrong five times, the account will be locked. See in Figure 3.2 (Through Reboot or after half an hour, the account will be unlocked automatically).
Page 18: Set/Reset Password
3.4. Set/Reset Password 3.4.1. Set Password For your own safety, please set your administrator default password after you first boot up the device. After system booted up, you can see the following interface if it is your first time to use or you have restored default setup.
Page 19: Reset Password
After you complete the setup, click OK button, system pops up the following interface for you to confirm. Click OK button to exit. See Figure 3.5 Figure 3.5 3.4.2. Reset Password Once you forgot password, you can answer the security questions you set in chapter 3.4.1 to reset the password.
Page 20: Start-Up Wizard
Figure 3.7 3.5. Start-up Wizard After device successfully booted up, it goes to startup wizard. See Figure 3.8 , Click Cancel/Next button, you can see system goes to login interface. Tips Check the box Startup button here, system goes to startup wizard again when it boots up the next time.
Page 21 • Username: default. Password: default (hidden user). Hidden user “default” is for system interior use only and cannot be deleted. When there is no login user, hidden user “default” automatically login. You can set some rights such as monitor for this user so that you can view some channel view without login.
Page 22 Figure 3.10 ➢ Click on Next button, you will go to Network test page. See Figure 3.11 Figure 3.11 ➢ Click on Next button, now you will go to install mobile app. See Figure 3.12. Here you will get QR code link to redirect mobile application for android and IOS base. And also you will get QR code to get serial No.
Page 23: Preview
Figure 3.12 ➢ Click Next button, system pops up a dialogue box. Click the OK button, the startup wizard is complete. See Figure 3.13 Figure 3.13 3.6. Preview You can right click mouse to choose the switch between the windows. The system date, time and channel name are shown in each viewing window.
Page 24 Recording status Video loss Motion detection Camera lock ➢ Use mouse middle scroll wheel to change channel No: You can use mouse middle scroll wheel to switch channel to other channel. ➢ Digital Zoom - It is to zoom in specified zone of current channel. Please drag mouse with left click to select a zone and then click in selected zone.
Page 25: Right Click Menu
3.7. Right Click Menu In preview mode you can right click mouse to get a drop-down menu, as in Figure 3.15 . The menu includes: M ain Menu, PTZ Control, Smart Add, Signal Type, Color Setting, Output Adjust, Playback, Record Mode, Window Split Mode and Exit. Figure 3.15 3.7.1.
Page 26: Window Switch
3.7.2. Window Switch System supports 1/4/8/9-window (The options here depend on your product channel amount). You can select from the dropdown list. See Figure 3.17 Figure 3.17 3.7.3. PTZ Control The PTZ setup is shown as in See Figure 3.18 . Here you can control PTZ Direction, Speed, Zoom, Focus, Iris, Preset, Tour, Scan, Pattern aux function, Light and Wiper, Rotation and Etc.
Page 27 Figure 3.18 ➢ [Speed] Speed is to control PTZ movement speed. The value ranges from 1 to 8.The speed 8 is faster than speed 1, default value will be 5. ➢ [Hide] Current interface will be temporarily hidden after click it. ➢...
Page 28 Special Functions: - • [Set Preset] Preset is a specific spot you can focus your PTZ's view on and assign it a number. By activating the preset number your camera will go to the exact spot you specified. It can also be used with the other options such as Tour.
Page 29 • [Set Tour] Tour is the collection of preset, which call automatically one by one according to their prefix order. To set tour, procedure as follow- a. Enter a tour No. in and then click on b. Now in tour window, select your predefine preset which you want to add in tour.
Page 30 • [Pattern] A pattern is similar to a preset but instead of one fixed view assigned to a number you are able to move/zoom the camera for an allotted percentage that lowers the more you adjust it. You can also assign each pattern you create a number. To set pattern, procedure as follow- a.
Page 31 To start and stop Auto Pan Procedure is as follow: a. Click on ; PTZ will start rotating in 360°. b. To stop Auto Pan, click on button. See Figure 3.22 Figure 3.22 • [Auto Scan] Auto scan consistently pans between a left border and a right border that you set until turned off.
Page 32 Figure 3.23 • [Flip] Rotates the camera 180°. • [Reset] Resets the camera to its default point. ➢ [Page Switch] To enter and configure PTZ camera OSD menu options. See Figure 3.24 Figure 3.24...
Page 33: Smart Add
3.7.4. Smart Add Shortcut to add IP camera in DVR (WITHOUT HDD), it automatically search all IP camera in network and auto add in device as per DVR (WITHOUT HDD) DAC mode. See Figure 3.25 Figure 3.25 3.7.5. Signal Type Select signal type to get camera video according to camera signal.
Page 34: Color Setting
3.7.6. Color Setting Set selected channel color setting (single-screen preview of the current channel, or select channel window of particular camera color setting include: Brightness, Contrast, Saturation, Hue, Gain, Horizontal sharpness, Vertical sharpness. And according to the needs of different image parameters set in two different time periods.
Page 35: Playback
3.7.8. Playback Check Recorded video backup of cameras. See Figure 3.29. Please refer to chapter 4.3.1 for detailed information. Figure 3.29 3.7.9. Record Mode Please check current channel status: means it is not in recording status, and means it is in recording status.
Page 36: Exit
3.7.10. Exit Logout or Reboot the system. You can use the desktop shortcut menu or enter [Main Menu]. See Figure 3.31 Figure 3.31...
Page 37: Main Menu
4. Main Menu The Main Menu interface is shown as below. See Figure 4.1 Figure 4.1 4.1. Settings 4.1.1. Camera 4.1.1.1. Encode When the product is set to DAC mode / full analog channel mode, the system will be set up in the encoding setting function, encoding settings can only function in an analog channel encoding settings.
Page 38: Dac
• [Channel] Select the channel you want. • [Compression] System supports H.264 ➢ H.264: It is the High Profile compression algorithm. It has the high encode compression rate. It can achieve high quality encode at low bit stream. • [Resolution] For analog channel, system supports various resolutions, you can select from the dropdown list.
Page 39: Add Ip Device
Figure 4.3 Remark: Compatible four types of front-end camera: AHD, HD-TVI, HD-CVI and IPC. Among all of analog channel, every channel attributes mutual independence, inexistence the binding relationship of any channel. 4.1.1.3. Add IP Device Here you can add/delete IP device and view its corresponding information. See Figure 4.4 Figure 4.4...
Page 40 • [Search] Click it to search IP address. It includes device Protocol, Device Info (MAC Address), IP address and Port. Use your mouse to click , you can refresh display order. Click IP address, system displays IP address in ascending order. Click IP address again, you can see icon, system displays IP address in Descending order.
Page 41 ➢ [Time Sync] To disable or select time synchronization mode with device and UTC. ➢ [Decode Order] To select mode of network video stream transmission. It includes: Real Time, Middle and Fluency ➢ [Connection Mode] Can be singe connect or multi-ink, multi-link modes can connect to several devices, device will be tour displayed one by one, tour interval can be set, no less then 10s;...
Page 42: Channel Status
Figure 4.8 Double-click the discovered devices, click the button; you can just add the device to the network settings. 4.1.1.4. Channel Status Channel status is to show the status of the entire IPC channel when there is what existing, status including Max Resolution, Current Resolution, and Connection Status.
Page 43: Channel Name
4.1.1.5. Channel Name It is to modify channel name. See Figure 4.10 . Please note for digital channel, you can only modify the channel name of the connected network camera. Figure 4.10 4.1.1.6. Channel Overlay Channel Overlay interface is shown as in Figure 4.11 . Figure 4.11 •...
Page 44: Ipc Parameter
• [Setup] Here is for you to set cover area. You can drag you mouse to set proper section size. In one channel video, system max supports 4 zones in one channel. • [Zone] To select No. of zone for overlay on channel video. Note –...
Page 45: Event
• [AE Sensitivity] To set auto exposure sensitivity level, value range 1 to 10. By default value is 5. • [Auto Iris] To enable or disable auto Iris feature. • [Automatic Gain] To enable or disable auto gain control of camera, user can also set the upper limit of AGC from 0 to 100.
Page 46 Figure 4.13 • [Channel] Select the number of channels to be set, the default one channel to the network camera. • [Enabled] To enable or disable Motion Detect on particular channel. • [Sensitivity] according to the sensitivity level of the lowest, low, medium, high, very high, the highest six-speed optional.
Page 47 Figure 4.14 • [Period] You can also set the alarm time from Monday to Sunday every day 4 time periods, other time will not trigger motion detection alarm information. See Figure 4.15 Figure 4.15 • [Interval] between two alarms generate alarm information shortest time interval can be set between 0 and 600Sec.
Page 48: Video Mask
Note: PTZ Activation, you need [shortcut menu] → [PTZ Control], set the preset point, tour between points, intervals and other parameters Figure 4.16 • [Post Rec] After the alarm ends, the length of time to continue the local recording can be set between 10 and 300S.
Page 49: Video Loss
Figure 4.17 Digital channels cannot be used to set the sensitivity. Which is a mixed-mode or full simulation mode can set the sensitivity. Sensitivity level is divided into six kinds, namely: minimum, low, medium, high, very high, the highest. Setting method: Please refer to chapter 4.1.2.1. 4.1.2.3.
Page 50: Abnormality
4.1.2.4. Abnormality Some current hardware and software analysis and detection equipment, and when there is an abnormal event is detected, the device responds accordingly, for example, the screen tips, buzzer, Alarm Push, Send Email, etc. See Figure 4.19 Figure 4.19 •...
Page 51: Network
4.1.3. Network 4.1.3.1. TCP/IP The single network adapter interface is shown as in Figure 4.20 Figure 4.20 • [Net Card] To select Network connection mode Wired or wireless. By default is Wire Netcard. • [DHCP Enable] The Device is connected to the router which DHCP is open, then device will automatically obtain an IP address.
Page 52: Ddns
4.1.3.2. DDNS DDNS setup interface is shown as in Figure 4.21 . Figure 4.21 Please note DDNS type includes: CPPlus DDNS, Dyndns and NO-IP DDNS. All the DDNS can be valid at the same time, you can select as you requirement. CPPlus DDNS and Client-end Introduction ➢...
Page 53: Instaon Cloud
4.1.3.3. Instaon Cloud User can use cell phone to scan the QR code to get download link of cMOB application for iPhone & Android, and also to get serial no. to add on mobile phone. See Figure 4.22 Via the SN from scanning the QR code, you can access the device in the WAN. Please refer to the Instaon operation manual included in the resources CD.
Page 54: Pppoe
4.1.3.4.1. PPPoE PPPoE interface is shown as in Figure 4.24 . Figure 4.24 ➢ To Enable disable PPPoE. ➢ Input “User Name” and “Password” you get from your ISP (Internet service provider). ➢ Click save button, you need to restart to activate your configuration. ➢...
Page 55: Email
4.1.3.4.3. Email Set the e-mail addresses for DVR (WITHOUT HDD) sent and received alarm alert information. Email interface is shown as in Figure 4.26. Figure 4.26 ➢ [Enable] To enable or disable email service. ➢ [SMTP Server] Input Email SMTP Server address. ➢...
Page 56: Alarm Server
Figure 4.27 ➢ [Enable] To Enable or Disable FTP service. ➢ [Server IP] To set IP address of the FTP server. ➢ [Port] To set FTP server service port number, the default port 21. ➢ [User name] Input the user name of FTP Server authentication. ➢...
Page 57 ➢ [Alarm Reported] Enable to report to the police information to the server. ➢ [Log reporting] Enable to report to the server log information. 4.1.3.4.6. Dial-up Internet access through 3G card, implement client access device, and configure the device. 3G interfaces is shown as in Figure 4.29 Figure 4.29 ➢...
Page 58: Upnp
4.1.3.4.7. UPnP UPNP protocol can forward service port automatically on the router. UPnP interface is shown as in Figure 4.30 Figure 4.30 4.1.3.4.8. Wifi Connect to the wireless router via the wireless module. To access the device via IP, provided the use of this feature is that the DVR (WITHOUT HDD) has access to WIFI module.
Page 59: Rtsp
➢ [Search] Click [Search] button to search out available within the current range of the wireless device. ➢ [Enable] To Enable or disable Wifi Service. ➢ [DHCP] To Enable or Disable DHCP. ➢ [SSID] Wireless LAN name; automatically match your connected wireless devices. ➢...
Page 60: Storage
4.1.4. Storage 4.1.4.1. Schedule You need to have proper rights to implement the following operations. Please make sure the HDDs have been properly installed. After the system booted up, it is in default 24-hour regular mode. You can set record type and time in schedule interface as shown in Figure 4.34.
Page 61: Hdd Manage
4.1.4.2. HDD Manage Configure and manage the hard disk. The menu displays current hard disk information: hard disk number, input port, type, status and overall capability. The operation include: setup the Read/Write Disk, Read Only Disk, Redundant Disk, Hard Disk Format, Recover Disk and Disk Partition. Choose the hard disk and click the right function button to execute.
Page 62: System
4.1.5. System 4.1.5.1. General General interface is shown as in Figure 4.36. Figure 4.36 ➢ [Time Zone] To set time zone for DVR (WITHOUT HDD) according to device location. The default is GMT +1:00. ➢ [System time] Set the system date and time manually. ➢...
Page 63: Ptz Config
Figure 4.38 ➢ [Date separator] Set the preview screen displays the date when the delimited format, provide a "-", ".", "/" three formats. ➢ [Time Format] Select the time format of 12 or 24-hour two kinds, default is 24. ➢ [Language] Set the system language, Simplified Chinese, Traditional Chinese, English and other 20 languages.
Page 64: Auto Maintenance
➢ [Channel] Select the channel on which PTZ connected. ➢ [Control Method] You can select control method from the dropdown list. There are three options: Coaxial, RS485 and All. For CVI series product, please select Coaxial. The control signal is sent to the PTZ via the coaxial cable. For the RS485 mode, the control signal is sent to the PTZ via the RS485 port.
Page 65: Import/Export
Figure 4.41 Please click icon to select the corresponding function. After all the setups please click save button, system goes back to the previous menu. Warning! System menu color, language, time display mode, video format, IP address, user account will not maintain previous setup after default operation! 4.1.5.5.
Page 66: Information
Figure 4.42 Note: ⚫ System cannot open config backup interface again if there is backup operation in the process. ⚫ System refreshes device when you go to the config backup every time and set current directory as the root directory of the peripheral device. ⚫...
Page 67: Device Info
Tips： ○ means that the hard disk is normal. “-“means that there is no hard disk. If the user needs to change the damaged hard disk, you must shut down the DVR (WITHOUT HDD) and take up all the damaged hard disks, then install a new one. * Behind serial number means the current working disk such as 1*.
Page 68: Log
4.2.3. Log To search log information base on the set search mode. Log information include: system operation, configuration operation, data management, alarm affair, recording operation, user management, and file management and so on. Set the time section to look up and click the look up button. The log information will display as a list.
Page 69: Bps
4.2.5. BPS Display the code stream（ Kb/S） and hard disk capability （MB/H） in real time. It displays as the wave sketch map. BPS interface is shown as in Figure 4.48 Figure 4.48...
Page 70: Operation
4.3. Operation 4.3.1. Playback There are two methods for you to play the video files in the hard disk. Through shortcut menu or form [Main Menu] → [Playback]. Playback interface is shown as in Figure 4.49 Note: The hard disk that saves the video files must be set as read-write or read-only state. Figure 4.49 Please refer table for Playback page reference 1.
Page 71: Backup
Button Function Button Function Play/Pause Play Backward Stop Slow Playback Reverse Fast Fast Playback Previous Frame Next Frame Previous File Next File Repeat Playback Full Screen End Video Clipping Start Video Clipping Download Note: Play under frame by frame, the playback status should be paused firstly.【Operation tips】 show function of the key that cursor placed.
Page 72 Figure 4.50 ➢ [Detection] Detecting storage devices connected to the device, which can be U disk, hard disk and other equipment. ➢ [Backup] Click Backup, Backup dialog box pops up, you can select the backup video files based on type, channel, time and other attributes. Select backup device and then set channel, file start time and end time.
Page 73 Figure 4.52 When the system completes backup, you can see a dialogue box prompting Backup Finished. See Figure 4.53 Figure 4.53 Note: When you back up, you can exit the page perform other functions. Burn: Click Burn, burn video will sync selected channel. ➢...
Page 74: Display
Figure 4.54 ➢ [Format] Click here to format detected Backup drive. 4.3.3. Display Configure the video output parameters including Time Display, Channel Title, Record Status, Transparency, Resolution, Tour, etc. Display interface is shown as in Figure 4.55 Figure 4.55 ➢ [Time Display] Means the selective state. Display the system data and time in the live window.
Page 75: Account
➢ [Alarm Status] Means the selective state. Display the system alarm status in the live window. ➢ [Transparency] Choose the background image transparency. The range is 10~100. ➢ [Resolution] Set display resolution. It includes: 1024x768, 1280x720, 1280x1024, 1440x900, and 1920x1080. User can also set output mode with HDMI priority or VGA priority. ➢...
Page 76 Figure 4.57 ➢ [Modify User] Modify the user name has been added, whether reuse, notes, group, class, and permissions. See Figure 4.58 Figure 4.58 ➢ [Modify Group] Group name has been added to modify the user group, notes and permissions. See Figure 4.59...
Page 77 Figure 4.59 ➢ [ Modify Password] Modify user login password. See Figure 4.60 Figure 4.60 Note: The user who possess the user control purview can modify his/her own or other users password ➢ [Forget Password] User can set security question, it will help to reset password in future if the user miss the password.
Page 78 Figure 4.61 ➢ [Add user] Set new user name, password, notes, owning group, permissions and other information, can add up to 64 user names. See Figure 4.62 Figure 4.62 ➢ [Add Group] Set the group name new user group, notes, permissions and other information.
Page 79: Upgrade
➢ [Delete Group] Delete the selected user group, when the group contains a user group cannot be deleted. See Figure 4.64 Figure 4.64 4.3.5. Upgrade To upgrade device firmware, Upgrade interface is shown as in Figure 4.65 Figure 4.65 ➢ [Upgrade from USB] choose USB drive and firmware upgrade file and then click on Upgrade button to start upgrade process.
Page 80: Web Operation
5. Web Operation Slightly difference may be found in the interface due to different models. 5.1. Network Connection Before web client operation, please check the following items: ⚫ Network connection should be proper. ⚫ DVR (WITHOUT HDD) and PC network setup is proper. Please refer to network setup (Main Menu → Setting →...
Page 81 Figure 5.2 System pops up the following dialogue box for you to change default administrator password. See Figure Figure 5.3 For you own safety, please change the default password after you first login.
Page 82: Lan Mode
5.3. LAN Mode For the LAN mode, after you logged in, you can see the main window. See Figure 5.4 Figure 5.4 This main window can be divided into the following sections. ⚫ Section 1: There are five function buttons: Preview, Playback, Alarm, Setup, Info, and Logout. ⚫...
Page 83: Real-Time Monitor
Figure 5.5 ⚫ Section 9: From left to right, it is to set full screen, 1-window, 4-window, 9-window, 16-window, local snapshot, local recording and Enable/Disable sound. 5.4. Real-Time Monitor In section 2, left click the channel name you want to view, you can see the corresponding video in current window.
Page 84: Wan Login
5.6. WAN Login In WAN mode, after you logged in, the interface is shown as below. See Figure 5.6 Figure 5.6 Please refer to the following contents for LAN and WAN login difference. • In the WAN mode, system opens the sub stream of all channels to monitor by default. •...
Page 85: Playback
Important ⚫ For multiple-channel monitor mode, system adopts extra stream to monitor by default. You cannot modify manually. All channels are trying to synchronize. Please note the synchronization effect still depends on your network environments. For bandwidth consideration, system cannot support monitor and playback at the same time. System auto closes monitor or playback interface when you are searching setup in the configuration interface.
Page 86 Parameter Function To select record type, its includes: Alarm Record, Detect Record, General Type Record, Manual Record, and etc. Begin To input Begin Date and Time from which user want to get playback. To input Date and time, and system will get playback till that date and time.
Page 87: Alarm
Figure 5.8 5.8. Alarm Click alarm function, you can see an interface is shown as Figure 5.9. Here you can set device alarm type and alarm sound setup (Please make sure you have enabled audio function of corresponding alarm events). Figure 5.9 Please refer to the following sheet for detailed information.
Page 88: Setup
Type Parameter Function Tampering System alarms when camera is viciously masking. Disk full System alarms when disk is full. Disk error System alarms when disk error occurs. Check the box here, system can automatically pops up Operation Prompt an alarm icon on the Alarm button in the main interface when there is an alarm.
Page 89 Figure 5.11 Please refer to the following sheet for log parameter information. Parameter Function Enable Open digital channel, tick enable, then can do related settings. Channel Select Channel No. To disable or select time synchronization mode with device and UTC Time Sync Can be singe connect or multi-ink, multi-link modes can connect to several Connect...
Page 90 Parameter Function Select a device in the list and then click Add button, system can connect the device automatically and add it to the Added device list. Or you can double click one item in the list to add a device. Click or any device in the Added device list, you can change the Modify...
Page 91: Image
5.9.1.2. Image Here you can view device property information. The setups become valid immediately after you set. Image interface is shows as in Figure 5.12. Figure 5.12 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. It divides one day (24 hours) to two periods.
Page 92 low. If this value is too high, the dark section may lack brightness while the bright section may over exposure .The recommended value ranges from 40 to 60. It is to adjust monitor window saturation. The value ranges from 0 to 100.
Page 93: Encode
5.9.1.3. Encode 5.9.1.3.1. Encode The encode interface is shown as below. See Figure 5.13. Figure 5.13 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Video enable Check the box here to enable extra stream video. This item is enabled by default.
Page 94: Path
Bit Rate Type System supports two types: CBR and VBR. In VBR mode, you can set video quality. Image Quality There are six levels ranging from Lowest to Highest. The sixth level has the highest image quality Bit Rate Recommended bit rate value according to the resolution and frame rate you have set.
Page 95: Channel Name
5.9.1.4. Channel Name Here you can set channel name. See Figure 5.15. Please note this function is for analog channel only. The digital channel name here is read-only. Figure 5.15 5.9.1.5. Channel Type It is to set channel type. Each channel supports analog camera HD Analog / Network camera connection. Please note DVR (WITHOUT HDD) needs to restart to activate new setup.
Page 96: Network
5.9.2. Network 5.9.2.1. TCP/IP 5.9.2.1.1. TCPIP TCP/IP interface is shown as in Figure 5.17. Figure 5.17 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode. ⚫ The IP/submask/gateway is null when you select the DHCP mode to auto search the IP.
Page 97: Instaon
IP Address Please use the keyboard to input the corresponding number to modify the IP address and then set the corresponding subnet mask and the default gateway. Preferred DNS DNS IP address. Alternate DNS Alternate DNS IP address. LAN Download System can process the downloaded data first if you enable this function.
Page 98: Connection
5.9.2.2. Connection The connection interface is shown as in Figure 5.19. Figure 5.19 Please refer to the following sheet for detailed information. Parameter Function Max connection It is the max Web connection for the same device. The value ranges from 1 to 120. The default setup is 120. TCP port The default value is 37777.
Page 99: Wifi
5.9.2.3. Wifi Please note this function is for the device of WIFI module. The WIFI interface is shown as in Figure 5.20 Figure 5.20 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list.
Page 100: Pppoe
Please refer to the following sheet for detailed information. Parameter Function Network type Here you can select 3G network type to distinguish the 3G module from different ISP. The types include WCDMA，CDMA1x and etc. To Select ISP predefine Setting for APN, Dial No. User and Password. It includes TATA, AIRCEL, AIRTEL, MTS, BSNL, RELIANCE CDMA, RELIANCE GSM, TATA DOCOMO, MTNL and customized.
Page 101: Ddns
Figure 5.22 5.9.2.6. DDNS DDNS setup interface is shown as in Figure 5.23. Figure 5.23 Please note DDNS type includes: CPPlus DDNS, Dyndns and NO-IP DDNS. All the DDNS can be valid at the same time, you can select as you requirement.
Page 102: Email
CPPlus DDNS and Client-end Introduction ➢ Background Introduction Device IP is not fixed if you use ADSL to login the network. The DDNS function allows you to access the DVR (WITHOUT HDD) via the registered domain name. Besides the general DDNS, the CPPlus DDNS works with the device from the manufacturer so that it can add the extension function.
Page 103: Ftp
Please refer to the following sheet for detailed information. Parameter Function Enable Please check the box here to enable email function. SMTP Server Input server address and then enable this function. Port Default value is 25. You can modify it if necessary. To enable or disable SSL encryption.
Page 104: Upnp
Please refer to the following sheet for detailed information. Parameter Function Enable Please check the box here to enable email function. Server IP To set IP address of the FTP server. Port To set FTP server service port number, the default port 21. User Name Input the user name of FTP Server authentication.
Page 105: Alarm Server
5.9.2.10. Alarm Server The alarm server interface is shown as below. See Figure 5.27. This interface is reserved for you to develop. System can upload alarm signal to the alarm server when local alarm occurs. Before you use alarm server, please set server IP, port and etc. When an alarm occurs, system can send out data as the protocol defined, so the client-end can get the data.
Page 106 Figure 5.29 Figure 5.30...
Page 107 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods. See Figure 5.29.
Page 108: Video Loss
Parameter Function Expressed alarm occurs if the selected channel or video capture channel, the video file up to a FTP server. Check the box here, system can record motion detect event log. 5.9.3.1.2. Video Loss The video loss interface is shown as in Figure 5.31. After analysis video, system can generate a video loss alarm when the detected moving signal reached the sensitivity you set here.
Page 109 Figure 5.32 Figure 5.33...
Page 110 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable/disable Video Loss function. By default Video loss function enable for all channel. Please select a channel from the dropdown list. Period Video Loss function becomes activated in the specified periods.
Page 111: Tampering
5.9.3.1.3. Tampering The tampering interface is shown as in Figure 5.34. After analysis video, system can generate a tampering alarm when the tampering signal reached the sensitivity you set here. Figure 5.34 Figure 5.35...
Page 112 Figure 5.36 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable/disable tampering function. Please select a channel from the dropdown list. Period Tampering function becomes activated in the specified periods. See Figure 5.35.
Page 113: Abnormality
Parameter Function Record channel System auto activates selected channels to record once an alarm occurs Delay System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s. PTZ Activation Here you can set PTZ movement when alarm occurs. Such as go to preset X.
Page 114 Figure 5.37 Please refer to the following sheet for detailed information. Parameter Function Event Type The abnormal events include: No Disk, Disk error, Disk No Space. You can set one or more items here. Less than: You can set the minimum percentage value here (For disk no space only).
Page 115: Network Error
5.9.3.2.2. Network Error The Network Error interface is shown as in Figure 5.38. Figure 5.38 Please refer to the following sheet for detailed information. Parameter Function Event Type The abnormal events include: Net Disconnection and IP Conflict. You can set one or more items here. By default IP Conflict enable. Enable Check the box here to enable selected function.
Page 116 ⚫ Yellow color stands for the Motion Detect Record. ⚫ Red color stands for the Alarm Record. ⚫ Blue color stands for MD & Alarm Record. Figure 5.39 Figure 5.40...
Page 117 Figure 5.41 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD. Length Here is for you to specify record duration.
Page 118: Hdd Manager
5.9.4.2. HDD Manager The interface is shown as in Figure 5.42. Here you can see HDD information. You can also select the read- only, read-write, redundancy (if there are more than on HDD) format operation and so on. Figure 5.42 Please refer to the following sheet for detailed information.
Page 119: System
System 5.9.5. 5.9.5.1. General The general interface includes General, Date & Time. 5.9.5.1.1. General The general interface is shown as in Figure 5.43. Figure 5.43 Please refer to the following sheet for detailed information. Parameter Function Device ID It is to set device name. Device No.
Page 120: Date & Time
the previous files. Auto Logout Here is for you to set auto logout interval once login user remains inactive for a specified time. Value ranges from 0 to 60 minutes. 5.9.5.1.2. Date & Time The date and time interface is shown as in Figure 5.44. Figure 5.44 Please refer to the following sheet for detailed information.
Page 121: Display
NTP Server IP You can set the time server address. Port It is to set the time server port. Interval It is to set the sync periods between the device and the time server. 5.9.5.2. Display Display Interface is shown as in Figure 5.45. Figure 5.45 Please refer to the following sheet for detailed information.
Page 122: Ptz
5.9.5.3. The PTZ interface is shown as in Figure 5.46. Before setup, please check the following connections are right: ➢ PTZ and DVR (WITHOUT HDD) RS485 connection is should be proper. PTZ A B line should be connects with DVR (WITHOUT HDD) RS 485 port A B. ➢...
Page 123: Account
Parameter Function Stop bit Default setup is 1. Please set according to the speed dome dial switch setup. Parity Default setup is none. Please set according to the speed dome dial switch setup. 5.9.5.4. Account Note: • For the character in the following user name or the user group name, system max supports 6-digits. The space in the front or at the end of the string is null.
Page 124 Please note the user rights shall not exceed the group right setup. For convenient setup, please make sure the general user has the lower rights setup than the admin. Figure 5.48 Modify user It is to modify the user property, belonging group, password and rights. See Figure 5.49. Modify password It is to modify the user password.
Page 125: Group
Figure 5.49 5.9.5.4.2. Group The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 5.50.
Page 126 Figure 5.50 Add group: It is to add group and set its corresponding rights. See Figure 5.51. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 5.51...
Page 127: Auto Maintain
Modify group Click the modify group button, you can see an interface is shown as in Figure 5.52. Here you can modify group information such as remarks and rights. Figure 5.52 5.9.5.5. Auto Maintain The Auto Maintain interface is shown as in Figure 5.53. Here you can select auto reboot and auto delete old files interval from the dropdown list.
Page 128: Config Backup
5.9.5.6. Config Backup The interface is shown as in Figure 5.54 Figure 5.54 Please refer to the following sheet for detailed information. Parameter Function Config Import It is to import the local setup files to the system. Config Export It is to export the corresponding WEB setup to your local PC. 5.9.5.7.
Page 129: Upgrade
5.9.5.8. Upgrade The upgrade interface is shown as in Figure 5.56. Please select the upgrade file and then click the update button to begin update. Please note the file name shall be as *.bin. During the upgrade process, do not unplug the power cable, network cable, or shutdown the device.
Page 130: Log
5.10.2. Log interface is shown as in Figure 5.58 Figure 5.58 Please refer to the following sheet for log parameter information. Parameter Function Type Log types include: system operation, configuration operation, data operation, event operation, record operation, user management, log clear. Start time Set the start time of the requested log.
Page 131: Logout
Note • If there is no HDD, system max supports 1024 logs. • If you have connected to the unformatted HDD, system max supports 5000 logs. • If you have connected to the formatted HDD, system max supports 500,000 logs. •...
Page 132: Appendix Ahdd Capacity Calculation
Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR (WITHOUT HDD) according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.
Page 133: Appendix Bearthing
You can refer to the following sheet for the file size in one hour per channel. (All the data listed below are for reference only.) Bit stream size (max) File size Bit stream size (max) File size 128K 160K 192K 224K 256K 112M...
Page 134 To protect the device, you need to evaluate its environment, the lighting affection degree objectively. Because surge has close relationship with the voltage amplitude, frequency, network structure, device voltage-resistance, protection level, ground and etc. The thunder proof work shall be a systematic project, emphasizing the all-round protection (including building, transmission cable, device, ground and etc.).
Page 135 error signal transmission occurred. In the one-point ground mode, each circuit is just grounded only and they are connected at the same port. Since there is only one common port, there is no circuit and so, there is no interference. Multiple-point ground: In the following figure, you can see the internal circuit uses the chassis as the common point.
Page 136 When considering the earthing, you need to think about two aspects: The first is the system compatibility, and the other is the external interference coupling into the earth circuit, which results in system error. For the external interference is not regular, it is not easy to resolve. 3.
Page 137 There is a shortcut way to check these thee cables connection are standard or not (not the accurate check). Importance In the following operations, the multimeter range shall be at 750V! For E (earth cable) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the E port of the socket.
Page 138 For L (live cables) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the L port of the socket. See the following figure. If the multimeter shows 120, then you can see current live cable connection is standard.
Page 139 Note: ⚫ This manual is for reference only. Slight difference may be found in the user interface. ⚫ All the designs and software here are subject to change without prior written notice. ⚫ All trademarks and registered trademarks mentioned are the properties of their respective owners. ⚫...
Page 140 Thank You for Choosing CP Plus! Website: - www.cpplusworld.com Email id: - sales@cpplusworld.com; support@cpplusworld.com...
