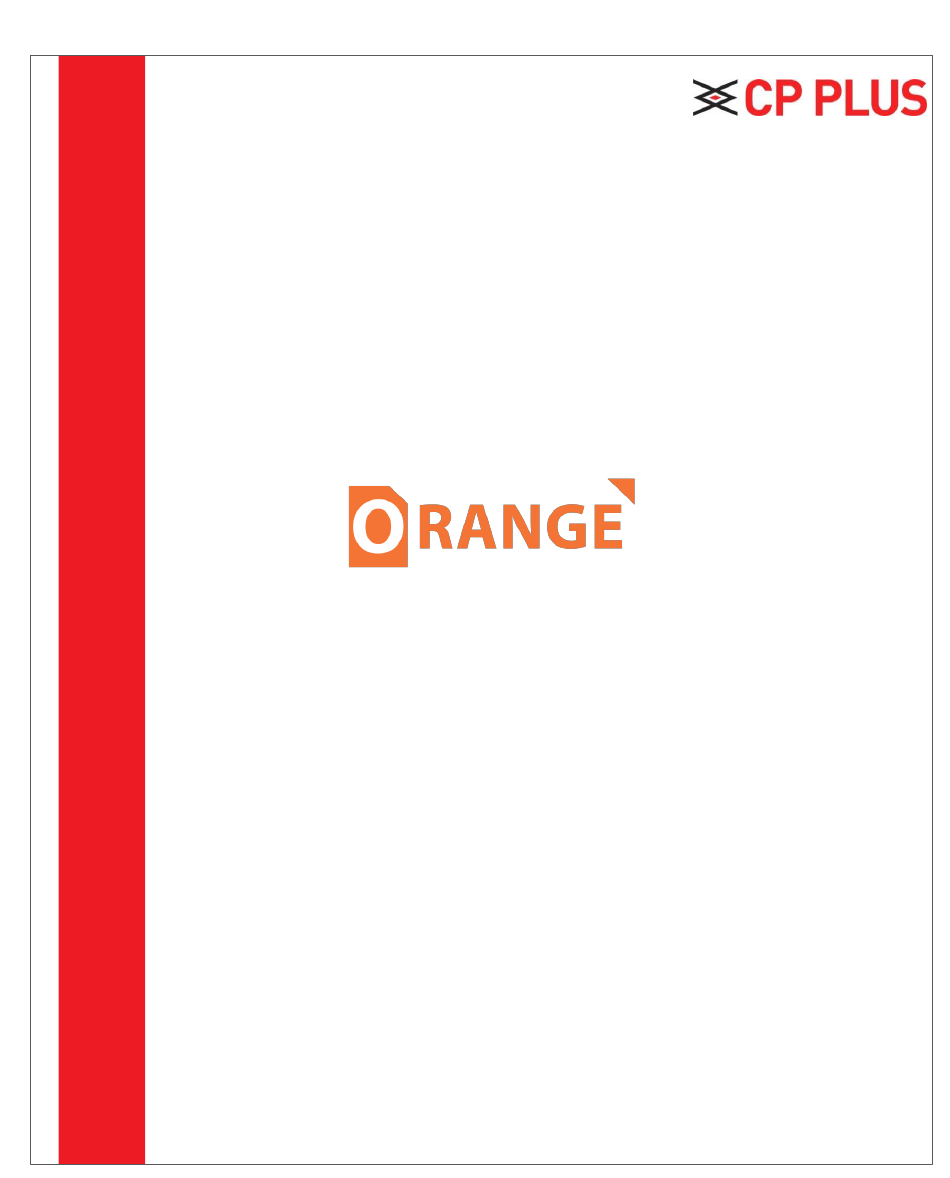

Page 1 Network Video Recorder User’s Manual V1.0...
Page 2: Foreword
Foreword General ⚫ This manual introduces the functions and operations of the NVR device (hereinafter referred to as "the Device"). Safety Instructions ⚫ The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result DANGER in death or serious injury.
Page 3 About the Manual The manual is for reference only. If there is inconsistency between the manual and the actual product, ⚫ the actual product shall prevail. We are not liable for any loss caused by the operations that do not comply with the manual. ⚫...
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings ⚫ The following description is the correct application method of the device. Read the manual carefully before use to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement Install the PoE front-end device indoors.
Page 5 burning risks of batteries! ⚫ To replace batteries, only the same type of batteries can be used. ⚫ Make sure to dispose the exhausted batteries according to the instructions. The product shall use electric wires (power wires) recommended by this area, which shall be used ⚫...
Page 6: Table Of Contents
Table of Contents FOREWORD ................................2 IMPORTANT SAFEGUARDS AND WARNINGS ....................... 4 TABLE OF CONTENTS ..............................6 1. LOCAL BASIC OPERATION ............................7 1.12 ..............................7 ETTING TARTED 1.12 ..............................23 REPARATION ................................46 AMERA ..........................50 1.2.2 EMOTE EVICE NITIALIZATION .......................
Page 7: Local Basic Operation
1. Local Basic Operation ⚫ Slight difference may be found on the user interface. The following figures for reference only. 1.12 Getting Started ⚫ This chapter introduces device initial settings such as boot up, device initialization, reset password, and quick settings.
Page 8 ⚫ ⚫ Figure 1-1 ⚫ Step 2 Set system time zone according to the actual environment. Refer to Table 1-4 in "1.1.4.1.2 Date and Time" for detailed information. ⚫ Click to shut down the device. It is suitable for the system integrator or the user to shut down directly after setting the time zone.
Page 9 ⚫ Step 4 Set login password of admin. See Table 1-1. ⚫ Table 1-1 Parameter Description User By default, the user is admin. In the Password box, enter the password for admin. Password The new password can be set from 8 characters through 32 characters and contains at least two types from number, letter and Confirm Password special characters (excluding"'", """, ";", ":"...
Page 10 ⚫ The pattern that you want to set must cross at least four grids. ⚫ If you do not want to configure the unlock pattern, click Skip. ⚫ Once you have configured the unlock pattern, the system will require the unlock pattern as the default login method.
Page 11 Configure the security questions and answers. Security If you forget the password, enter the answers to the questions can allow you to reset the password. Refer to " 1.15.3 Reset Password Questions " for detailed information. ⚫ Step 8 Click Save to complete the device initialization setup. ⚫...
Page 12 ⚫ Step 2 Check the box to enable reset function. ⚫ This function is enabled by default. Step 3 Click Apply to set settings. ⚫ If the password reset function is disabled, you can follow the ways listed below to reset ⚫...
Page 13 ⚫ Figure 1-7 ⚫ Step 2 Click ⚫ If you have set the reserved email address, the Prompt interface is displayed. See Figure 1-8. ⚫ If you did not set the reserved email address, the email entering interface is displayed. See Figure 1-9. ⚫...
Page 14 ⚫ Figure 1-9 Step 3 Click Next. The Reset Password interface is displayed. See Figure 1-10. ⚫ After clicking Next, the system will collect your information for password reset, purpose and the information includes but not limited to email address, MAC address, and device serial number. Read the prompt carefully before clicking Next.
Page 15 ⚫ Step 4 Reset the password. ⚫ QR code ⚫ Follow the onscreen instructions to get the security code in your reserved email address. In the Security code box, enter the security code. ⚫ You can get the security code twice by scanning the same QR code. If you need to get the security code once again, refresh the interface.
Page 16 ⚫ Figure 1-12 Step 6 In the New Password box, enter the new password and enter it again in the Confirm Password box. ⚫ Step 7 Click Save. The password resetting is complete. ⚫ A pop-up message is displayed asking if you want to sync the password with the remote devices. See Figure 1-13.
Page 17 1.1.3.3 Reset Button ⚫ You can always use the reset button on the mainboard to reset the Device to the factory default settings. ⚫ Reset button is for some series products only. ⚫ Step 1 Disconnect the Device from power source, and then remove the cover panel. For details about removing the cover panel.
Page 18 ⚫ Figure 1-15 If you select the Auto-check for updates check box, the system will notify you automatically when updates ⚫ are available. ⚫ After the auto-check function is enabled, to notify you to update timely, the system will collect the information such as IP address, device name, firmware version, and device serial number.
Page 19 ⚫ Figure 1-16 ⚫ Step 2 Set parameters. See Table 1-3. ⚫ Table 1-3 Parameter Description Device Name In the Device Name box, enter the Device name. Device No. In the Device No. box, enter a number for the Device. Language In the Language list, select a language for the Device system.
Page 20 Parameter Description IPC Time Sync In the IPC Time Sync Period box, enter the interval for time sync. Period (hour) You can set auto logout interval once login user remains inactive for a Auto logout specified time. Value ranges from 0 to 60 minutes. Enable the navigation bar.
Page 21 ⚫ Table 1-4 Parameter Description In the System Time box, enter time for the system. Click the time zone list, you can select a time zone for the system, and the time in adjust automatically. System Time Do not change the system time randomly; otherwise the recorded video cannot be searched.
Page 22 ⚫ Figure 1-18 Step 2 Click Add Holidays button, the Add Holidays interface is displayed. See Figure 1-19. ⚫ Figure 1-19 ⚫ Step 3 Set holiday name, repeat mode and holiday mode.
Page 23: Preparation
⚫ Click Add more to add new holiday information. ⚫ Step 4 Click Add button, you can add current holiday to the list. ⚫ Click the dropdown list of the state; you can enable/disable holiday date. ⚫ Click to change the holiday information. Click to delete current date. ⚫...
Page 24 ⚫ Step 2 Click ⚫ The Edit interface is displayed. See Figure 1-21. ⚫ Figure 1-21 ⚫ Step 3 Set parameters. See Table 1-5. ⚫ Table 1-5 Parameter Description Multi-address: Two Ethernet ports work separately through either ⚫ of which you can request the Device to provide the services such as HTTP and RTSP.
Page 25 In the Ethernet Card list, select an Ethernet port as a default port. Default Ethernet Port This setting is available only when the Multi-address is selected in the Net Mode list. Parameter Description In the IP Version list, you can select IPv4 or IPv6. Both versions are IP Version supported for access.
Page 26 Scan the QR code on the actual interface to download the cell phone app. Register an account and then use. ⚫ Go to the http://orange.instaon.com/ to register an account and use the SN to add a device. Refer to the INSTAON CLOUD operation manual for detailed information. ⚫...
Page 27 ⚫ Figure 1-22 ⚫ Step 2 Check the box to enable INSTAON CLOUD function. ⚫ After the INSTAON CLOUD function is enabled and connected to the Internet, the system will collect your information for remote access, and the information includes but not limited to email address, MAC address, and device serial number.
Page 28 ⚫ Figure 1-23 ⚫ on the top right corner. ⚫ The interface requiring device initialization is displayed. A pop-up message reminding you to make sure the Device is initialized is displayed. Tap OK. ⚫  If the Device has not been initialized, Tap Device Initialization to perform initializing by following the onscreen instructions.
Page 29 Tap INSTAON CLOUD. ⚫ The INSTAON CLOUD interface is displayed. See Figure 1-25. ⚫ Figure 1-25 ⚫ Enter a name for the NVR, the username and password, scan the QR code under Device SN. Tap Start Live Preview. ⚫ The Device is added and displayed on the live view interface of the cell phone. See Figure 1-26. ⚫...
Page 30 ⚫ Figure 1-26 1.1.4.4 Registration ⚫ If you do not select Smart add function during the initialization process, go to the remote Device interface to register a remote device. ⚫ After adding remote device, the device can receive, store, and manage the video streams of the remote device.
Page 31 ⚫ Step 2 Register remote device. ⚫ Search and then add Click Device Search. ⚫ System displays searched devices at the upper pane. Double-click a remote device or select a remote device and then click Add to register it to the Added Device list.
Page 32 ⚫ Figure 1-28 ⚫ Table 1-7 Parameter Description Enable the Uninitialized function, the uninitialized devices out of the Uninitialized searched devices are displayed in the searched device list. Select the uninitialized device from the uninitialized device list, and Initialize the click Initialize to start initializing device. In the Show Filter list, select the remote device type that you want to display in the searched device list.
Page 33 Parameter Description Add the device by manually configuring settings such as IP address, Manual Add channel selection. Added Device Displays the added devices. You can edit and delete the device, and List view the device information. Select the check box of the added device, and then click Delete to Delete delete the added device.
Page 34 Configure parameters. See Table 1-8. ⚫ ⚫ Table 1-8 Parameter Description In the Channel list, select the channel that you want use on the Channel Device to connect the remote device. In the Manufacturer list, select the manufacturer of the remote Manufacturer device.
Page 35 ⚫ Once the multiple-sensor device has registered to the device system displays the channel status on the Link info. See Figure 1-30. It shows one remote device has occupied two channels: D1, D3. ⚫ Figure 1-30 ⚫ ⚫ ⚫ 1.1.4.5 Schedule ⚫...
Page 36 ⚫ Fig 1-31 ⚫ Step 2 Select a channel from the dropdown list, you can set different record plans for different channels. Select All if you want to set for all channels. See Table 1-9. ⚫ Table 1-9 ⚫ Parameter Description Channel In the Channel list, select a channel to record the video.
Page 37 If there are several HDDs installed to the Device, you can set one of the HDDs as the redundant HDD to save the recorded files into different HDDs. In case one of the HDDs is damaged, you can find the backup in the other HDD.
Page 38 ⚫ Step 3 Set record type. See Figure 1-34. ⚫ Figure1-34 When the record type is MD (motion detect), alarm, MD&Alarm, IVS and POS, enable the channel record ⚫ function when corresponding alarm occurs. For example, when the alarm type is MD, select Main Menu > ALARM >...
Page 39 ⚫ Figure 1-35 ⚫ Step 4 Set record period. It includes edit mode and draw mode. See Figure 1-36. ⚫ If you have added a holiday, you can set the record period for the holiday. ⚫ ⚫ Figure 1-36 ⚫ Define the period by drawing.
Page 40 Red stands for alarm record. ⚫  Blue stands form intelligent record. ⚫  Orange stands for MD& Alarm record. ⚫  Purple stands for POS record. ⚫  Once the time period overlaps, the record priority: MD&Alarm > Alarm > POS > Intelligent > MD >General.
Page 41 ⚫ Figure 1-38 ⚫ record type for each period. ⚫  There are six periods for you to set for each day. ⚫  Under Copy, select All to apply the settings to all the days of a week, or select specific day(s) that you want to apply the settings to.
Page 42 ⚫ ⚫ ⚫ Figure 1-39 ⚫ Step 2 Select a channel to set schedule snapshot. ⚫ Step 3 Set snapshot type as schedule. Refer to "1.2.5.2 Snapshot" for detailed information. Step 4 Check the box to set alarm type. See Figure 1-40. ⚫...
Page 43 ⚫ Figure 1-41 ⚫ ⚫ Step 5 Refer to "1.1.4.6.1 Recording Schedule" to set snapshot period. Step 6 Click Apply button to save snapshot plan. ⚫ Enable auto snapshot function so that the snapshot plan can become activated. Refer to ⚫...
Page 45 ⚫ Figure 1-42 ⚫ ⚫ Step 2 Configure parameters. ⚫ Parameter Description Displays all the analog channels and the connected digital channels. Channel You can select a single channel or select All. ⚫ Auto: Automatically record according to the record type and recording time as configured in the recording schedule.
Page 46: Camera
1.2 Camera Connection 1.2.1 Select Main menu > REGISTRATION > Camera Registration, you can register the remote device. See Figure 1-43. ⚫ After register the remote device to the NVR, you can view the video on the NVR, and manage and storage the video file.
Page 47 ⚫ Figure 1-44 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Step 2 Select IP mode. Check DHCP, there is no need to input IP address, subnet mask, and default gateway. Device ⚫ automatically allocates the IP address to the camera.
Page 48 Auto Changing H.265 ⚫ For the remote device that first registered to the system, it can automatically adopts encode format as H.265 if you enable H.265 Auto switch function. ⚫ Click H.265 Auto Switch button at the bottom of the interface, it is from .The function is enabled.
Page 49 ⚫ Figure 1-46 ⚫ ⚫ Step 2 Select Address to save export file. ⚫ ⚫ Step 3 Click the OK button. ⚫ Device pops up a dialogue box to remind you successfully exported. ⚫ When exporting IP address, the File Backup Encryption check box is checked by default. The file information includes IP address, port, channel number, manufacturer, user name, and password.
Page 50: Remote Device Initialization
1.2.1.3 IP Import ⚫ Step 1 Click Import button. ⚫ The Browse interface is displayed. See Figure 1-47. ⚫ Figure 1-47 ⚫ Step 2 Go to Address to select the import file and then click the OK button. ⚫ System pops up a dialogue box to remind you successfully imported. ⚫...
Page 51 ⚫ Step 3 Select a camera to be initialized and then click Initialize. The Enter Password interface is displayed. See Figure 1-48. ⚫ Figure 1-48 ⚫ Step 4 Set remote device password and email information. ⚫ If you want to use current device password and email information, the remote device automatically uses NVR admin account information (login password and email).
Page 52 ⚫ Figure 1-49...
Page 53 Configure parameters. See Table 1-10. ⚫ Table 1-10 Parameter Description User The default is admin. The new password can be set from 8 characters through 32 Password characters and contains at least two types from number, letter and special characters (excluding"'", """, ";", ":" and "&"). Enter a strong password according to the password strength bar Confirm Password indication.
Page 54 ⚫ Figure 1-51 ⚫ Step 8 Set camera IP address. Check DHCP, there is no need to input IP address, subnet mask, and default gateway. Device ⚫ automatically allocates the IP address to the camera. ⚫ Check Static, and then input IP address, subnet mask, default gateway and incremental value. If it is to change several devices IP addresses at the same time, input incremental value.
Page 55: Short-Cut Menu To Register Camera
⚫ Figure 1-52 ⚫ Step 10 Click Finished to complete the setup. ⚫ Short-Cut Menu to Register Camera 1.2.3 ⚫ If you have not registered a remote device to a channel, go to the preview interface to add. Step 1 On the Preview interface, Move your mouse to window.
Page 56: Image
⚫ Step 2 Click "+", device pops up interface to add network camera. Refer to "1.1.4.4 Registration" for detailed information. 1.2.4 Image ⚫ You can set network camera parameters according to different environments. It is to get the best video effect. Step 1 Select Main Menu>...
Page 57 ⚫ Different series network camera displays different parameters. The actual product shall prevail. ⚫ Table 1-11 Parameter Description In the Channel list, select the channel that you want to configure. Channel Config File There are three config files for you. System has configured the corresponding parameters for each file, you can select according to your actual situation.
Page 58: Encode
Parameter Description You can set camera BLC mode. ⚫ Self-adaptive: In the backlight environment, the system can automatically adjust image brightness to clearly display the object. ⚫ BLC: Default: The device auto exposures according to the ◇ environment’s situation so that the darkest area of the video is cleared Customize: After select the specified zone, the system can ◇...
Page 59 ⚫ Figure 1-55 ⚫ Step 2 Configure parameters. See Table 1-12. ⚫ Table 1-12 Parameter Description In the Channel list, select the channel that you want to configure the Channel settings for. Enable the smart codec function. This function can reduce the video bit stream for non-important recorded video to maximize the storage space.
Page 60 Parameter Description H.264: Main profile encoding. ⚫ ⚫ H.264B: Baseline profile encoding. This setting requires higher bit stream compared with other settings for the same definition. In the Resolution list, select resolution for the video. Resolution The maximum video resolution might be different dependent on your device model.
Page 61 ⚫ Step 4 Configure parameters. See Table 1-13. ⚫ Table 1-13 Parameter Description This function is enabled by default for main stream. You need to manually enable it for sub stream 1. Once this function is enabled, Audio Encode the recorded video file is composite audio and video stream.
Page 62: Channel Name
⚫ Table 1-14 Parameter Description In the Manual Snap list, select how many snapshots you want to take Manual Snap each time. In the Channel list, select the channel that you want to configure the Channel settings for. In the Mode list, you can select Timing, or Trigger. ⚫...
Page 63: Remote Upgrade
⚫ Step 2 Modify a channel name. ⚫ You can only change the camera connected via the private protocol. ⚫ The channel name supports 63 English characters. Step 3 Click Apply. 1.2.7 Remote Upgrade ⚫ You can upgrade the connected network camera firmware. It includes online upgrade and file upgrade. Step 1 Select Main Menu >...
Page 64: Remote Device Info
Select upgrade file on the pop-up interface. Select the upgrade file and then click OK button. ⚫ After successful operation, system pops up upgrade successful dialogue box. ⚫ If there are too much remote devices, select Device Type from the drop-down list to search the remote device you desire.
Page 65: Live View
⚫ Table 1-15 Icon Description Icon Description IPC works properly. IPC does not support. There is an alarm. Video loss occurs. 1.2.8.2 Firmware You can view IP address, manufacturer, type, system version of the connected remote device. Select Main Menu > CAMERA > REGISTRATION > Firmware, the Firmware interface is ⚫...
Page 66: Preview
1.3.1 Preview ⚫ On Preview interface, you can view the monitor video of each channel. The corresponding channel displays date, time, and channel name after you overlay the corresponding information. Refer to the following table for detailed information. See Table 1-16. Table 1-16 Icon Description...
Page 67 ⚫ ⚫ ⚫ ⚫ ⚫ Table 1-17 Icon Function Open Main Menu. Expand or condense the navigation bar. Select view layout. Go to the previous screen. Icon Function Go to the next screen. Enable tour function. The icon switches to Close the tour or the triggered tour operation has cancelled, device restores the previous preview video.
Page 68 Open the HDD MANAGER interface. For details, see " 1.13.3 HDD." Open the USB MANAGER interface. For details about USB operations, see " 1.3.2.2 USB Manager." 1.3.2.1 Channel Info ⚫ After the remote device registered to the corresponding channel, you can view its status such as alarm status, record status, connection status, record mode, etc.
Page 69 ⚫ Figure 1-63 1.3.2.2 USB Manager ⚫ After connecting the USB device, you can copy log, config file to USB device or update NVR system. ⚫ Click system goes to HDD Manager interface. You can view and manage HDD information. See Figure 1-64.
Page 70: Preview Control Interface
⚫ Figure 1-64 1.3.3 Preview Control Interface ⚫ Move your mouse to the top center of the video of current channel; you can see system pops up the preview control interface. See Figure 4-65. If your mouse stays in this area for more than 6 seconds and has no operation, the control bar automatically hides.
Page 71 1.3.3.1 Instant Replay ⚫ You can playback the previous 5-60 minutes record of current channel. ⚫ Click to go to the instant replay interface. See Figure 1-66. ⚫ Figure 1-66 ⚫ Instant replay is to playback the previous 5 minutes to 60 minutes record of current channel. ⚫...
Page 72 ⚫ Figure 1-67 1.3.3.2 Digital zoom...
Page 73 ⚫ You can zoom in specified zone of current channel so that you can view the details. It supports zoom in function of multiple-channel. It includes the following two ways: ⚫ Click , the icon switches to . Hold down the left mouse button to select the area you want to enlarge. The area is enlarged after the left mouse button is released.
Page 74 1.3.3.5 Bidirectional talk ⚫ You can perform the voice interaction between the Device and the remote device to improve efficiency of emergency. ⚫ Step 1 Click button to start bidirectional talk function the icon now is shown as . Now the rest bidirectional talk buttons of digital channel become null too.
Page 75 ⚫ The right-click menu is different for different models. The actual interface shall prevail. ⚫ Figure 1-69 ⚫ Table 1-18 Function Description Main Menu Open Main Menu interface. Open the PLAYBACK interface where you can search and play Search back record files. For details, see "1.6 Playback and Search." Open the PTZ interface.
Page 76: Sequence
Function Description Crowd Distribution Select enable/disable to start/stop crowd distribution function. Click to realize auto focus function. Make sure the connected Auto focus camera supports auto focus function. Click to modify the camera properties. For details, see "1.2.4 Image Image". Sub Port Click Sub Port, you can go to control the sub screen.
Page 77 ⚫ Figure 1-70 ⚫ ⚫ Step 2 On the edit view interface, drag the channel to the desired window, or drag on the preview window to switch the position. ⚫ Check the channel number at the right bottom corner to view the current channel sequence. See Figure 1-71.
Page 78: Test Temperature
⚫ After you change the channel sequence, click Cancel button or right click mouse, device pops up the dialogue box. See Figure 1-72. ⚫ Click OK to save current settings. ⚫ Click No to exit without saving the settings. ⚫ Figure 1-72 1.3.5 Test Temperature ⚫...
Page 79 view to the camera. ⚫ Before you control the PTZ, make sure the PTZ decoder and the NVR network connection is OK. 1.4.1 PTZ Settings ⚫ You can set different PTZ parameters for local type and remote type. Before you use local PTZ, make sure you have set PTZ protocol;...
Page 80 ⚫ Table 1-20 Parameter Description In the Channel list, select the channel that you want to connect the PTZ Channel camera to. Local: Connect through RS-485 port. ⚫ PTZ Type Remote: Connect through network by adding IP address of PTZ ⚫...
Page 81 ⚫ Table 1-21 Parameter Description Controls the movement speed. The bigger the value is, the faster the Speed movement will be. : Zoom out. Zoom : Zoom in. : Focus far. Focus : Focus near. : Image darker. Iris : Image brighter. PTZ movement Supports eight directions.
Page 82 ⚫ Figure 1-85 The functions with buttons in gray are not supported by the system. ⚫ ⚫ Right-click once to return to the interface of PTZ basic control panel. ⚫ Table 1-22 Icon Function Icon Function Preset Auto Pan Tour Flip Pattern Reset...
Page 83 ⚫ Figure 1-86 ⚫ Step 4 Click the direction arrows to the required position. ⚫ Step 5 In the Preset box, enter the value to represent the required position. Step 6 Click Setting to complete the preset settings. 1.4.3.2 Configuring Tours ⚫...
Page 84 ⚫ You can repeat adding more presets. ⚫ Click Del Preset to delete the preset for this tour. This operation can be repeated to delete more presets. Some protocols do not support deleting. 1.4.3.3 Configuring Patterns ⚫ Step 1 On the Expanded PTZ Control Panel, click ⚫...
Page 85 ⚫ ⚫ ⚫ ⚫ Figure 1-89 ⚫ Step 3 Click the direction arrows to position the left and right borders. Calling PTZ Functions 1.4.4 ⚫ After you have configured the PTZ settings, you can call the PTZ functions for monitoring from the Expanded PTZ Control Panel.
Page 86 to call. ⚫ Step 2 Click to call the tour. ⚫ Step 3 Click again to stop calling the tour. 1.4.4.3 Calling Patterns ⚫ Step 1 On the Expanded PTZ Control Panel, in the No. box, enter the value of the pattern that you want to call.
Page 87: Record File
⚫ Figure 1-91 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ 1.5 Record File ⚫ Device adopts 24-hour continuous record by default. It supports customized record period and record type. Refer to "4.1.4.6 Schedule" for detailed information. 1.6 Playback and Search Instant Playback 1.6.1 ⚫...
Page 88 ⚫ Figure 1-92 ⚫ Table 1-23 Function Description Display the searched recorded video or picture. It supports playing single-channel, 4-channel, 9-channel, 16-channel simultaneously. Display Window When playing back in a single channel mode, hold down the left mouse button to select the area that you want to enlarge. The area is enlarged after the left mouse button is released.
Page 89 Display the type and time period of the current recorded video. ⚫ In the 4-channel layout, there are four-time bars are displayed; in the other view layouts, only one-time bar is displayed. Click on the colored area to start playback from a certain time. ⚫...
Page 90 Function Description k speeds. 1.6.2.1 Playback Control : Click the File List button, the searched recorded video ⚫ list is displayed. You can lock/unlock the files. Refer to ⚫ The playback control interface is shown as below. See Figure 1- "1.6.7 File List "...
Page 91 storage device. ⚫ From R/W HDD: Recorded videos or snapshots playback from HDD Adjust the volume of the playback. of the Device. See Figure 1-94. ⚫ Figure 1-94 Smart search. Refer to "1.6.3 Smart Search Playback" for detailed information. Click the snapshot button in the full-screen mode, the system can snapshot 1 picture.
Page 92 ⚫ 1-95 Figure ⚫ This function allows you to clip some footages to a new file and then save it to the USB device. See Figure 1-96. Follow the steps listed below. ⚫ Step 1 Select a record first and then click to playback.
Page 93 ⚫ Figure 1-97 ⚫ Step 3 Click Backup to begin the process. Smart Search Playback 1.6.3...
Page 94 ⚫ This function is for some series product only. ⚫ During playback process, it can analyze the motion detect zone in the scene and give the analysis result. This function is for channel that already enabled motion detect function (Main Menu > ALARM > VIDEO DETECT >...
Page 95 ⚫ Figure 1-98 ⚫ Playback Mark ⚫ During 1-window playback mode, click mark file list button in Figure 1-92, you can go to mark file list interface. Double-click one-mark file, you can begin playback from the mark time. ⚫ Play before mark time ⚫...
Page 96 ⚫ Figure 1-99...
Page 97 ⚫ Double-click one-mark information item, you can see system pops up a dialogue box for you to change mark information. You can only change mark name here. ⚫ Delete ⚫ Here you can check the mark information item you want to delete and then click Delete button, you can remove one-mark item.
Page 98 Click , the playback starts from the beginning. ⚫ ⚫ Double-click anywhere on the time bar, the playback starts from where you click. ⚫ Figure 1-101 ⚫ File List 1.6.7 ⚫ Click , system displays file list. It displays the first channel of the record. See Figure 1-102. ⚫...
Page 99 To view the locked information, click , the FILE LOCKED interface is displayed. ⚫ ⚫ The recorded video that is under writing or overwriting cannot be locked. To unlock the recorded video, in the FILE LOCKED interface, select the video, and then click Unlock. See ⚫...
Page 100 ⚫ This series NVR products support playback the AI by camera file only. AI by camera means the connected camera does all the AI analytics, and then gives the results to the NVR. 1.7.1.1 Face Detection ⚫ You can search the detected faces and play back. Step 1 Select Main Menu >...
Page 101 ⚫ Step 3 Select the face that you want to play back. ⚫ The picture with registered information is displayed. ⚫ You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ⚫...
Page 102 ⚫ System can search and compare the human face on the video with the face image on the database, and playback the corresponding record file. ⚫ The AI search includes two ways: Search by attributes and search by image. ⚫ This function is for some series products only.
Page 103 ⚫ Figure 1-108 ⚫ Step 4 Click the picture that you want to play back. ⚫ The picture with registered information is displayed. ⚫ You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ⚫...
Page 104 ⚫ Figure 1-111 ⚫ Step 2 Select a channel, start time, end time, event type, and then click Smart search, the search result is displayed. ⚫ Step 3 Click the picture that you want to play back. ⚫ You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ⚫...
Page 105 ⚫ Figure 1-112 ⚫ Step 2 Select a channel, start time, end time, and set corresponding parameters. Step 3 Click Smart search. ⚫ The search result is displayed. See Figure 1-113. ⚫ For privacy reason, the human face in the image is pixelated.
Page 106 ⚫ Step 4 Select one or multiple results, and then you can ⚫ To back up the recorded files to the external storage device, select files, click ⚫ Backup select the save path and file type, and then click Start. To lock the files to make it unable to be overwritten, select the files, and then click Lock.
Page 107 ⚫ Figure 1-114 ⚫ Step 2 Select a channel and set parameters. System supports plate fuzzy search. ⚫ ⚫ System searches all plate numbers by default if you have not set a plate number. Step 3 Click Smart search. ⚫ The search result is displayed.
Page 108 ⚫ Figure 1-115 Step 2 Select the channel and the time, and then select one or multiple features from Type, Vehicle Color, People Number, or Helmet. Step 3 Click Smart Search. ⚫ The search result is displayed. See Figure 1-116. ⚫...
Page 109 ⚫ Step 4 Select one or multiple results, and then you can ⚫ To back up the recorded files to the external storage device, select files, click ⚫ Backup select the save path and file type, and then click Start. ⚫...
Page 110 ⚫ Step 2 Set parameters such as channel, report type, start time, end time, etc. See Table 1-25. ⚫ ⚫ ⚫ Table 1-25 Parameter Description Channel Select the channel you want to search people amount. Rule Select the rule from the dropdown list. Select report type from the dropdown list: daily report, monthly Report Type report, yearly report.
Page 111 ⚫ The Normal interface is displayed. See Figure 1-118. ⚫ Figure 1-118 ⚫ Step 2 Select channel, start time, end time. Step 3 Click Search. ⚫ Step 4 System display heat map report. ⚫ Click Export, and then select path. Click Save to save current report to the USB device. 1.7.1.8.2 Fisheye Step 1 Select Main Menu >...
Page 112 ⚫ Figure 1-119 Step 2 Set Channel, Type, Start Time, End time. Step 3 Click Search. ⚫ Step 4 System displays heat map report. ⚫ Click Export and then select saved path, click Save to save the heat map report to the USB device. 1.7.2 Parameters 1.7.2.1 Smart Plan...
Page 113 ⚫ Figure 1-120 ⚫ Step 2 Select a channel number. ⚫ System displays different smart plan interfaces since the remote device may supports different functions. Select a channel. Select a preset. Click the smart plan icon at the bottom left. The icon becomes highlighted. Click Apply.
Page 114 ⚫ Click to delete the preset. ⚫ Click Add to add a preset. ⚫ Once the remote device does not support preset function, the interface is shown as in Figure 1-122. ⚫ Figure 1-122 Select a channel. Click the smart plan icon. The icon becomes blue highlighted. Click Apply.
Page 115 ⚫ Figure 1-123 ⚫ Step 2 In the Channel list, select a channel that you want to configure face detection function, and then enable it. ⚫ Step 3 Configure the parameters. See Table 1-26. ⚫ Table 1-26 Parameter Description This series NVR products support AI by Camera only. AI by Camera means the Type connected camera does all the AI analytics, and then gives the results to the NVR.
Page 116 Parameter Description The alarm device (such as lights, sirens, etc.) is connected to the alarm output Alarm Out port. When an alarm occurs, the NVR device transmits the alarm information to the alarm device. When the alarm ends, the alarm extended for a period of time. The time range is Latch from 0 seconds to 300 seconds.
Page 117 Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "1.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. ⚫...
Page 118 ⚫ Table 1-27 Parameter Description Check the box to enable ROI function, system displays human face at the enhanced way. Click Setting to draw areas to filter the target. You can configure two filtering targets (maximum size and minimum size). Rule When the target is smaller than the minimum size or larger than the maximum size, no alarms will be activated.
Page 119 Select the check box and select the needed recording channel (support multiple choices). When an alarm occurs, the NVR device activates the channel for recording. Record Channel You need to enable intelligent recording and auto recording first. For details, see "1.1.4.6 Schedule."...
Page 120 ⚫ Figure 1-126 1.7.2.4 IVS (General Behavior Analytics) ⚫ The IVS function processes and analyzes the images to extract the key information to match with the specified rules. When the detected behaviors match with the rules, the system activates alarms. ⚫...
Page 121 tree branches, shadow, mosquito and bugs. Do not use the IVS function in the backlight environment, avoid direct sunlight. Step 1 Select Main Menu > AI > PARAMETERS > IVS. ⚫ The IVS interface is displayed. See Figure 1-127. ⚫ Figure 1-127 ⚫...
Page 122 ⚫ ⚫ Figure 1-128 ⚫ Step 3 Set corresponding parameters. Step 4 Click Apply. 1.7.2.4.1 Tripwire ⚫ When the detection target crosses the warning line along the set direction, the system performs an alarm linkage action. Step 1 Select Main Menu > AI > PARAMETERS > IVS. In the Type drop-down list, select Tripwire.
Page 123 ⚫ Step 2 Draw the detection rule. ⚫ ⚫ Click to draw the rule on the surveillance video, the system displays as Figure 1-130. ⚫ Figure 1-130 Configure the parameters. See Table 1-29. ⚫ Table 1-29...
Page 124 Parameter Description Name Customize the rule name. Set the tripwire direction, including A→B, B→A and A↔B. Direction Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse. Filter target Each rule can set 2 target filters (maximum size and minimum size), that is, when the passing target is smaller than the minimum target or larger than the maximum target, no alarm will be generated.
Page 125 Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "1.12.6 Email." Select the check box and select the needed recording channel (support multiple choices).
Page 126 ⚫ System adopts video image and graphics analysis technology. System can calculate the entry/exit people amount in the specified zone on the video. It can generate an alarm when the amount has exceeded the threshold. 1.7.2.5.1 People Counting Step 1 Select Main Menu > AI > PARAMETERS > PEOPLE COUNTING > PEOPLE COUNTING.
Page 127 Rule Type Select a people counting rule type. Rule Click RULE to set statistics region, name, direction. Click Setting to set alarm parameters. ⚫ OSD Overlay: Check the box here; you can view the people amount on the surveillance video. ⚫...
Page 128 At the end of the alarm, the recording extends for a period of time. The time Delay range is from 10 seconds to 300 seconds. Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.
Page 129 ⚫ Step 2 Configure parameters. See Table 1-41. ⚫ Table 1-41 Parameter Description Channel Select a channel from the dropdown list. Region Set queue detection region. Alarm Type Select Queue People No. Alarm or Queue Time Alarm. Configure the period and in the set time range, the corresponding configuration Period item will be linked to start the alarm.
Page 130 Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen. Tour ⚫ You need to set the time interval and mode for tour first, see "4.16.2 Tour." After the tour is over, the preview interface is restored to the screen split ⚫...
Page 131 ⚫ The Setting interface is displayed. See Figure 1-151. ⚫ Figure 1-151 ⚫ Step 4 Set arm/disarm period. There are two modes for you to set the period so that the system can detect the specified zone. ⚫ Define the period by drawing. Select the corresponding date and then use mouse to drag the bar to set period.
Page 132 result. ⚫ You can set different plate recognition rule, alarm linkage actions in different environments (blacklist, whitelist and regular). Step 1 Select Main Menu > AI > PARAMETERS > ANPR. The ANPR interface is displayed. See Figure 1-152. ⚫ Figure 1-152...
Page 133 ⚫ Step 2 Select the Enable check box to enable ANPR. Step 3 Click Regular (default), Blacklist or Whitelist tab to configure it. ⚫ Before activate blacklist alarm or whitelist alarm, you need to add the corresponding plate information. Refer to "4.7.3.2 B/W List" for detailed information. ⚫...
Page 134 Select the check box and click Setting to select the channel and PTZ action. When an alarm occurs, the NVR device associates the channel to perform the corresponding PTZ action. For example, activate the PTZ in channel one to turn to the preset point X.
Page 135 ⚫ Figure 1-163 Step 4 In the Type list, select the event type; In the Start Time box and End Time box, enter the specific time. Step 5 Click Search. ⚫ The search results are displayed. ⚫ Step 6 Click Backup to back up the search results into the external storage device. ⚫...
Page 136 ⚫ Figure 1-164 1.8.3 Alarm Input Step 1 Select Main menu > ALARM > ALARM INPUT, ⚫ The ALARM INPUT interface is displayed. See Figure 1-165. Step 2 There are four alarm types. ⚫ Local alarm: After connecting the alarm device to the NVR alarm input port, system can trigger the corresponding alarm operations when there is alarm signal from the alarm input port to the NVR.
Page 137 ⚫ Figure 1-165 Step 3 Set Alarm In channel number and then select the Enable check box to enable the function. ⚫ Step 4 Configure parameters. See Table 1-44. ⚫ Table 1-44 Parameter Description Alarm in Select a channel to set alarm. Enable Check the box to enable the function.
Page 138 Parameter Description Show Check box to enable a pop-up message in your local host PC. Message Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Alarm Upload ⚫...
Page 139 Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "1.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. Step 5 Click Apply.
Page 140 Step 3 Click Apply. 1.8.5 Video Detection ⚫ The video detection adopts the computer image and graphics process technology. It can analyze the video and check there is considerable changing or not. Once video has changed considerably (such as there is any moving object, video is distorted), system can trigger the corresponding alarm activation operations.
Page 141 Region Click Setting to define the motion detection region. Enable MD Enable or disable the motion detection function. Check the box to enable the function. Period Define a period during which the motion detection is active. The higher the value is, the easier it is to trigger an alarm. But at the same time, Sensitivity the false alarm may occur.
Page 142: Setting The Motion Detection Region
Parameter Description At the end of the alarm, the recording extends for a period of time. The time Delay range is from 10 seconds to 300 seconds. Tour Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.
Page 143 ⚫ Figure 1-168 ⚫ Step 3 Configure the regions settings. You can configure totally four regions. Select one region, for example, click Drag on the screen to select the region that you want to detect. The selected area shows the color that represents the region. Configure the parameters.
Page 144: Setting Period
1.12 Setting Period ⚫ The system only activates the alarm in the defined period. Step 1 Next to Period, click Setting. ⚫ The Setting interface is displayed. See Figure 1-169. ⚫ Figure 1-169 ⚫ Step 2 Define the motion detection period. By default, it is active all the time. Define the period by drawing.
Page 145 ⚫ The Period interface is displayed. See Figure 1-170. ⚫ Figure 1-170 Enter the time frame for the period, and then select the check box to enable the settings. ⚫  There are six periods for you to set for each day. ⚫...
Page 146 ⚫ Figure 1-171 ⚫ Step 2 To configure the settings for the tampering detection parameters, see "1.8.5.1 Motion Detect. " ⚫ The Tampering function does not have region and sensitivity items. Step 3 Click Apply to complete the settings. Click Default to restore the default setting. ⚫...
Page 147 ⚫ Figure 1-172 ⚫ Step 2 To configure the settings for the video loss detection parameters, see "1.8.5.1 Motion Detect." ⚫ The video loss function does not have region and sensitivity items. Step 3 Click Apply to complete the settings. Click Default to restore the default setting.
Page 148 ⚫ Figure 1-173 ⚫ Step 2 To configure the settings for the scene change parameters, see "1.8.5.1 Motion Detect." The scene change function does not have region and sensitivity items. ⚫ Step 3 Click Apply to complete the settings. Click Default to restore the default setting. ⚫...
Page 149 ⚫ Figure 1-174 ⚫ Step 2 To configure the settings for the PIR alarm parameters, see "1.8.5.1 Motion Detect." Step 3 Click Apply to complete the settings. Click Default to restore the default setting. ⚫ Click Copy, in the Copy dialog box, select the additional channel(s) that you want to copy the motion detection ⚫...
Page 150 ⚫ Figure 1-175 ⚫ Step 2 Configure parameters. See Table 1-47. ⚫ Table 1-47 Parameter Description Channel In the Channel list, select a channel to set. Input Check the box here, system can generate an alarm once the audio input is abnormal abnormal.
Page 151 Parameter Description Show Check box to enable a pop-up message in your local host PC. Message Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Alarm Upload ⚫...
Page 152 Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "1.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. ⚫...
Page 153 ⚫ Step 2 Select a channel and alarm type, enable the thermal alarm function. ⚫ Step 3 Select fire mode and then enable this function (If the alarm type is Fire Alarm). System supports preset mode and zone excluded mode. ⚫...
Page 154 Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "1.12.6 Email." Select the check box and select the needed recording channel (support multiple choices).
Page 155 ⚫ Figure 1-177...
Page 156 ⚫ Figure 1-178 ⚫ Figure 1-179...
Page 157 ⚫ Figure 1-180 ⚫ Step 2 Configure parameters. See Table 1-49. ⚫ Table 1-49 Parameter Description Click the corresponding tab to set different abnormality events. ⚫ HDD: Sets process method when there is a HDD event such as HDD error, no HDD, no space.
Page 158 Parameter Description Set the maximum number of allowable wrong password entries. The account will be locked after your entries exceed the maximum number Attempts For Illegal Login type only. Set how long the account is locked for. The value ranges from 1 minute to 60 minutes.
Page 159: Pos
Parameter Description Tour Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen. You need to set the time interval and mode for tour first, see "1.16.2 Tour." ⚫...
Page 160 ⚫ Figure 1-181 ⚫ Step 2 In the POS SEARCH box, enter the information such as transaction number on your receipt, amount, or product name. ⚫ Step 3 In the Start Time box and End Time box, enter the time period that you want to search the POS transaction information.
Page 161 ⚫ ⚫ ⚫ Step 2 Configure the settings for the POS parameters. See Table 1-50. ⚫ Table 1-50 Parameter Description In the POS Name list, select the POS machine that you want to configure settings for. Click to modify the POS name. POS Name ⚫...
Page 162 Parameter Description In the Connect Type list, select the connection protocol type. Click , the IP Address interface is displayed. Connect Type In the Source IP box, enter the IP address (the machine that is connected to the Device) that sends messages. Convert Select a character encoding mode.
Page 163: Operation And Maintenance
⚫ Figure 1-183 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Step 2 Set privacy information. Step 3 Click OK button. 1.9.2.2 Connection type ⚫ Connection type is UDP or TCP. Step 1 Select Connect Type as UDP, TCP_CLINET or TCP. ⚫...
Page 164 Step 5 In the Type list, select the log type that you want to view (System, Config, Storage, Record, Account, Clear, Playback, and Connection) or select All to view all logs. Step 6 In the Start Time box and End Time box, enter the time period to search, and then click Search.
Page 165 ⚫ System Click Backup to back up the logs into the USB storage device. ⚫ Click Clear to remove all logs. 1.10.2.1 Version Select Main Menu > SYSTEM > VERSION, you can go to VERSION interface. ⚫ You can view NVR version information. Slightly different may be found on the user interface. 1.10.2.2 HDD Info ⚫...
Page 166 1.10.2.3 ⚫ ⚫ Here is for you to view current video bit rate (kb/s) and resolution. Select Main Menu > OPERATION > INFOMATION > BPS, the BPS interface is displayed. See Figure 1-188. ⚫ Figure 1-188 1.10.2.4 Device Status ⚫ You can view fan running status such as speed, CPU temperature, and memory.
Page 167 ⚫ Figure 1-189 1.10.2.5 HDD Health Detection ⚫ You can view HDD health status. System supports Seagate SKYHAWK series 4T and higher HDD. It displays HDD name, space, manufacturer, Serial No., and health status. Step 1 Select Main Menu > OPERATION > INFOMATION > HDD Health Detection. The HDD Health Detection interface is displayed.
Page 168 ⚫ Step 2 Double-click the HDD in the list, system displays the detection report. ⚫ Step 3 Select an item in the list, system displays the corresponding report. System displays the curve report of the recent week by default. 1.10.3 Network 1.10.3.1 Online User ⚫...
Page 169 ⚫ Network load means the data flow which measures the transmission capability. You can view the information such as data receiving speed and sending speed. Step 1 Select Main Menu > INFO > NETWORK > LOAD ⚫ The LOAD interface is displayed. See Figure 1-192. ⚫...
Page 170 ⚫ Figure 1-193 Step 2 In the Destination IP box, enter the IP address. Step 3 Click Test. ⚫ After testing is completed, the test result is displayed. You can check the evaluation for average delay, packet loss, and network status. 1.10.4 Maintenance and Management 1.10.4.1 Device Maintenance...
Page 171 ⚫ Figure 1-194 ⚫ Step 4 Configure the settings for the system maintenance parameters. See Table 1-52. ⚫ Table 1-52 Parameter Description Auto Reboot In the Auto Reboot list, select the reboot time. In the Case Fan Mode list, you can select Always run or Auto. If you select Auto, the case fan will stop or start according to the external conditions such as the Device temperature.
Page 172 ⚫ When you open the IMP/EXP interface, the system refreshes the devices and sets the current directory as the first root directory. ⚫ Click Format to format the USB storage device. Exporting System Settings Step 1 Select Main Menu > OPERATION > SYSTEM MAITAIN > IMP/EXP. The IMP/EXP interface is displayed.
Page 173 ⚫ ⚫ Figure 1-196 Step 4 Click Export. ⚫ There is a folder under the name style of "Config_ [YYYY/MM/DD – hhmm:ss ]". Double-click this folder to view the backup files. 1.10.4.3 Default ⚫ This function is for admin account only. You can select the settings that you want to restore to the factory default.
Page 174 ⚫ Figure 1-197 ⚫ Step 2 Restore the settings. ⚫ Select the settings that you want to restore, and then click Apply. The system starts restoring the selected settings. ⚫ Click Factory Default, and then click OK. The system starts restoring the whole settings. 1.10.4.4 System Update 1.10.4.4.1...
Page 175 ⚫ Figure 1-198 Step 3 Click System Upgrade. The System Upgrade interface is displayed. See Figure 1-199. ⚫ Figure 1-199...
Page 176 ⚫ Step 4 Click the file that you want to upgrade. The selected file is displayed in the Update File box. Step 5 Click Start. 1.10.4.4.2 Online Upgrade ⚫ When the Device is connected to Internet, you can use online upgrade function to upgrade the system. ⚫...
Page 177: File Backup
⚫ Manual check: Click Manual Check. ⚫ The system starts checking the new versions. After checking is completed, the check result is displayed. If the "It is the latest version" text is displayed, you do not need to upgrade. ⚫ If the text indicating there is a new version, go to the step 3.
Page 178 ⚫ Step 3 Select backup device and then set channel, file start time and end time. ⚫ Step 4 Click Search button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. ⚫ √...
Page 179 1.12.1 TCP/IP Select Main Menu > NETWORK > TCP/IP, the TCP/IP interface is displayed. See Figure 1-202. ⚫ Figure 1-202...
Page 180 ⚫ Table 1-53 Parameter Description Multi-address: Two Ethernet ports work separately through either ⚫ of which you can request the Device to provide the services such as HTTP and RTSP. You need to configure a default Ethernet port (usually the Ethernet port 1 by default) to request the services from the device end such as DHCP, Email and FTP.
Page 181 Parameter Description This setting is available only when the Multi-address is selected in the Net Mode list. In the IP Version list, you can select IPv4 or IPv6. Both versions are IP Version supported for access. MAC Address Displays the MAC address of the Device. Enable the DHCP function.
Page 182 ⚫ Figure 1-203 ⚫ Step 2 Configure the settings for the connection parameters. See Table 1-54. ⚫ The connection parameters except Max Connection cannot take effects until the Device has been restarted. ⚫ Table 1-54 Parameter Description The allowable maximum clients accessing the Device at the same Max Connection time, such as WEB, Platform, and Mobile Phone.
Page 183 The default value setting is 554. You can enter the value according RTSP Port to your actual situation. Data transmission. The value range is from 1 through 65535. The POS Port default value is 38800. HTTPS Enable Enable HTTPS. HTTPS communication port. The default value setting is 443. You HTTPS Port can enter the value according to your actual situation.
Page 184 by the Internet Service Provider. ⚫ Step 4 Click Apply to complete the settings. ⚫ The system pops up a message to indicate the successfully saved. The IP address appears on the PPPoE interface. You can use this IP address to access the Device. ⚫...
Page 185 ⚫ Figure 1-205 ⚫ Step 2 Configure the settings for the DDNS parameters. See Table 1-55. ⚫ Table 1-55 Parameter Description Enable the DDNS function. Enable After enabling DDNS function, the third-party might collect your Device information. DDNS Type Type and address of DDNS service provider. Type: Dyndns DDNS;...
Page 186 ⚫ If the web interface of the Device is displayed, the configuration is successful. If not, the configuration is failed. 1.12.5 UPnP ⚫ You can map the relationship between the LAN and the WAN to access the Device on the LAN through the IP address on the WAN.
Page 187 ⚫ Figure 1-207 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Step 2 Configure the settings for the UPnP parameters. See Table 1-56. ⚫ Table 1-56 Parameter Description Enable the UPnP function. Indicates the status of UPnP function. Status Offline: Failed.
Page 188 The settings in PAT table correspond to the UPnP PAT table on the router. ⚫ Service Name: Name of network server. Protocol: Type of protocol. ⚫ Int. Port: Internal port that is mapped on the Device. ⚫ ⚫ Ext. Port: External port that is mapped on the router. PAT Table To avoid the conflict, when setting the external port, try to use ⚫...
Page 189 Figure 1-208 ⚫ Step 2 Configure the settings for the email parameters. See Table 1-57. ⚫ Table 1-57 Parameter Description Enable Enable the email function. Enter the address of SMTP server of sender’s email account. SMTP Server Enter the port value of SMTP server. The default value setting is Port 25.
Page 190 This is the interval that the system sends an email for the same type of alarm event, which means, the system does not send an email upon any alarm event. Interval (Sec.) This setting helps to avoid the large amount of emails caused by frequent alarm events.
Page 191 ⚫ 1.12.7 SNMP ⚫ This function is for some series only. ⚫ You can connect the Device with some software such as MIB Builder and MG-SOFT MIB ⚫ Browser to manage and control the Device from the software. Preparations Install the software that can manage and control the SNMP, such as MIB Builder and MG-SOFT MIB Browser ⚫...
Page 192 ⚫ Table 1-58 Parameter Description Enable Enable the SNMP function. Select the check box of SNMP version(s) that you are using. Version The default version is V3. There is a risk of select V1 or V2. SNMP Port Indicates the monitoring port on the agent program. Read Community Indicates the read/write strings supported by the agent program.
Page 193 ⚫ Figure 1-210 ⚫ Step 2 Configure the settings for the multicast parameters. See Table 1-59. ⚫ Table 1-59 Parameter Description Enable Enable the multicast function. Enter the IP address that you want to use as the multicast IP. IP Address The IP address ranges from 224.0.0.0 through 239.255.255.255.
Page 194 ⚫ Figure 1-211 ⚫ Step 2 Configure the settings for the alarm center parameters. See Table 1-60. ⚫ Table 1-60 Parameter Description Enable Enable the alarm center function. In the Protocol Type list, select protocol type. The default is Protocol Type ALARM CENTER.
Page 195 NVR devices at the same time. Scan the QR code, download mobile app, and then register an account. For details, see Mobile App ⚫ Operation. Log in http://www.orange.insta.com/ , register an account, and then add device via the serial number. ⚫...
Page 196 ⚫ For details, see Introduction of INSTAON CLOUD Operations. Connect the NVR device to the Internet, otherwise INSTAON CLOUD cannot run properly. Step 1 Select Main Menu > NETWORK > INSTAON CLOUD. ⚫ The INSTAON CLOUD interface is displayed. See Figure 1-213. ⚫...
Page 197 ⚫ access and manage the device in the WAN. For details, refer to the INSTAON CLOUD operation manual. ⚫ You can also enter the QR code of Cell Phone Client and Device SN by clicking on the top right of the interfaces after you have entered the Main Menu.
Page 198 Enter name and password. ⚫ Step 4 After device registration on mobile App, click Start Preview and you can see the monitor screen. 1.12.12 802.1X Device needs to pass 802.1x certification to enter the LAN. Step 1 Select Main Menu > NETWORK > 802.1x. ⚫...
Page 199: Storage
Private It can be configured when Authentication is TLS. Password ⚫ Step 4 Click Apply to complete the settings. 1.19 Storage ⚫ You can manage the storage resources (such as record file) and storage space. So that it is easy for you to use and enhance storage space usage.
Page 200 Configure whether to delete the old files and if yes, configure the days. Auto-Delete Old Files The auto delete file cannot be recovered! Step 3 Click Apply or Save to complete setup. 1.13.2 Schedule ⚫ You can set schedule record and schedule snapshot. NVR can record or snapshot as you specified. For detailed information, refer to "1.1.4.6.1 Schedule Record"...
Page 201 ⚫ 1.13.4 Record Control ⚫ After you set schedule record or schedule snapshot function, set auto record/snapshot function so that the NVR can automatically record or snapshot. For detailed information, refer to "1.1.4.6.3 Record Control". 1.13.5 Advance (HDD Group) ⚫ You can set HDD group, and HDD group setup for main stream, sub stream and snapshot operation.
Page 202 1.13.6 HDD Detect This function is for some series product only. ⚫ The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD. ⚫ There are two detect types: ⚫...
Page 203 When system is detecting HDD, click Stop Detect to stop current detection. Click Start Detect to detect again. 1.13.6.2 Detect Report ⚫ After the detect operation, you can go to the detect report to view corresponding information. Replace the malfunction HDD in case there is data loss. Step 1 Select Main Menu >...
Page 204 1.13.8 Record Estimate ⚫ Record estimate function can calculate how long you can record video according to the HDD capacity, and calculate the required HDD capacity according to the record period. Step 1 Select Main Menu > STORAGE > REC ESTIMATE. The REC ESTIMATE interface is displayed.
Page 205 ⚫ Figure 1-230 ⚫ Step 3 Click Apply to save the settings. ⚫ Then the system will calculate the time period that can be used for storage according to the channels settings and HDD capacity. ⚫ Click Copy to copy the settings to other channels. Calculating Recording Time Step 1 On the REC ESTIMATE interface, click the Known Space tab.
Page 206 Calculating HDD Capacity for Storage Step 1 On the REC ESTIMATE interface, click the Known Time tab. ⚫ The Known Time interface is displayed. See Figure 1-233. ⚫ Figure 1-233 ⚫ Step 2 In the Time box, enter the time period that you want to record. ⚫...
Page 207 ⚫ Figure 1-234 ⚫ Step 2 Configure the settings for the FTP settings parameters. See Table 1-65. ⚫ Table 1-65 Parameter Description Enable ⚫ Enable the FTP upload function. Select FTP type. ⚫ FTP type ⚫ FTP: Plaintext transmission. SFTP: Encrypted transmission (recommended) ⚫...
Page 208: System
Parameter Description Create folder on FTP server. If you do not enter the name of remote directory, system ⚫ automatically creates the folders according to the IP and time. Remote Directory If you enter the name of remote directory, the system creates ⚫...
Page 209 1.14.2 RS232 ⚫ After setting RS-232 parameters, the NVR can use the COM port to connect to another device to debug and operate. Step 1 Select MAIN MENU > SYSTEM >RS232. ⚫ The RS232 interface is displayed. See Figure 1-235. ⚫...
Page 210 Parameter Description The actual product shall prevail. Baud Rate Select Baud rate, which is 115200 by default. Data Bits It ranges from 5 to 8, which is 8 by default. Stop Bits It includes 1 and 2. Parity It includes none, odd, even, mark and null. Step 3 Click Apply.
Page 211 ⚫ Table 1-67 Parameter Description In the Type list, you can select Network Access, Sync Time-Whitelist, Forbid Ping and Semi Join. Network Access: Configure access right of IP host. ⚫ Sync Time-Whitelist: Allow designated IP host to synchronize ⚫ Type or change Device time.
Page 212 ⚫ Figure 1-237 ⚫ Step 2 Select Enable to enable function in the Type list. Step 3 Configure the parameters. See Table 1-68. ⚫ Table 1-68 Parameter Description After enabling this function, the alarm triggered by the NVR Mobile Phone Push can be pushed to the mobile phone.
Page 213: Account
⚫ Step 4 Click Apply to complete the settings. 1.19 Account ⚫ You can manage users, user group and ONVIF user, set admin security questions. ⚫ For the user name, the string max length is 31-byte, and for the user group, the string max length is 15-byte. The user name can only contain English letters, numbers and “_”, “@”, “.”.
Page 214 ⚫ Figure 1-239 ⚫ Step 3 Input the user name, password, select the group it belongs to from the dropdown list. ⚫ Then you can check the corresponding rights for current user. See Table 1-69. ⚫ Table 1-69 Parameter Description User Name Enter a user name and password for the account.
Page 215 ⚫ Step 4 Click OK button. ⚫ Click to modify the corresponding user information, click to delete the user. ⚫ 1.15.1.2 Modify Password Step 1 Select Main Menu > ACCOUNT > User, click of the corresponding user. The Modify User interface is displayed. See Figure 1-240. ⚫...
Page 216 ⚫ Figure 1-241 Step 4 Click Back. 1.15.2 Group Step 1 Select Main Menu > ACCOUNT > Group. ⚫ The Group interface is displayed. See Figure 1-242. ⚫ Figure 1-242...
Page 217 Step 2 Click Add Group button in Figure 1-242. ⚫ The Add Group interface is displayed. See Figure 1-243. ⚫ Step 3 Enter group name and then input some memo information if necessary. Check the box to select authorities. ⚫ Figure 1-243 ⚫...
Page 218 ⚫ Figure 1-244 ⚫ Step 2 Check the box to enable Reset password function. ⚫ This function is enabled by default. ⚫ Step 3 Input proper security questions and answers. Step 4 Click OK. ⚫ After you successfully set security questions, you can answer the security questions to reset admin password.
Page 219 ⚫ Figure 1-245 Step 2 Click Add User button. ⚫ The Add User interface is displayed. See Figure 1-246. ⚫ Figure 1-246 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Step 3 Set user name, password and then select group from the dropdown list. Step 4 Click OK to complete...
Page 220: Output And Display
setup. ⚫ Click to modify corresponding user information, click to delete current user. 1.16 Output and Display 1.16.1 Display ⚫ You can configure the display effect such as displaying time title and channel title, adjusting image transparency, and selecting the resolution. Step 1 Select Main Menu >...
Page 221 Transparency Set the transparency of the local menu of the NVR device. The higher the transparency, the more transparent the local menu. Time Select the check box and the date and time of the system will be Display/Channel displayed in the preview screen. Display Image Enhance Select the check box to optimize the preview image edges.
Page 222 ⚫ Figure 1-248 ⚫ On the top right of the live view screen, use the left mouse button or press Shift to switch ⚫ between (image switching is allowed) and (image switching is not allowed) to turn on/off the tour function.
Page 223 Parameter Description Display all channel groups under the current Window Split setting. ⚫ Add a channel group: Click Add, in the pop-up Add Group channel, select the channels to form a group, and then click Save. Delete a channel group: Select the check box of any channel ⚫...
Page 224 ⚫ Step 2 Click and then click to select basic mode. ⚫ System adopts the basic window mode as the new window name. For example, if you select the 8- display mode, the default name is Split8. ⚫ In regular mode, drag the mouse in the preview frame; you can merge several small windows to one window so that you can get you desired split mode.
Page 225: Audio
⚫ Figure 1-251 ⚫ 1.19 Audio ⚫ The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. ⚫ This function is for some series product only. ⚫ 1.17.1 File Manage ⚫...
Page 226 ⚫ Figure 1-252 ⚫ Step 2 Click Add. ⚫ The Add interface is displayed. See Figure 1-253. ⚫ NVR supports USB port to import audio file only. ⚫ Figure 1-253...
Page 227 ⚫ Step 3 Select the audio file and then click Import. ⚫ System supports MP3 and PCM audio format. ⚫ Step 4 Click OK to start importing audio files from the USB storage device. ⚫ If the importing is successful, the audio files will display in the File Manager interface. 1.17.2 Schedule You can configure the settings to play the audio files during the defined time period.
Page 228 Parameter Description defined period. Includes two options: MIC and Audio. It is MIC by default. The MIC function shares the same port with talkback function and the latter has the priority. Output Some series products do not have audio port. The actual product shall prevail.
Page 229 Step 2 Click Add Group. ⚫ The Add Group interface is displayed. See Figure 1-256. ⚫ Figure 1-256 ⚫ Step 3 Input group name and select one or more channels. Step 4 Click Save button to complete broadcast group setup. ⚫...
Page 230: Usb Device Auto Pop-Up
⚫ Figure 1-257 1.18 USB Device Auto Pop-up...
Page 231: Shutdown
⚫ After you inserted the USB device, system can auto detect it and pop up the following dialogue box. It allows you to conveniently backup file, log, configuration or update system. See Figure 4-258. ⚫ Refer to "1.17.1 File Manage", "1.10.1 Log", "1.10.4.2 IMP/EXP", and "1.10.4.4 System Update ⚫...
Page 232 Step 2 Select Shutdown. ⚫ Draw the unlock pattern or input password first if you have no authority to shut down. See Figure 1-260 or Figure 1-261.
Page 233 ⚫ Figure 1-260 ⚫ Figure 1-261 ⚫ Remote Control ⚫ Press the power button on the remote for at least 3 seconds. ⚫ Press the power button at the rear panel of the device.
Page 234 Auto Resume after Power Failure ⚫ The system can automatically backup video file and resume previous working status after power failure.
Page 235: Web Operation
2 Web Operation The interfaces in the Manual are used for introducing the operations and only for reference. ⚫ ⚫ The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern. The Manual is a general document for introducing the product, so there might be some functions described for ⚫...
Page 236: Reset Password
⚫ ⚫ Step 2 Enter the user name and password. The default administrator account is admin. The password is the one that was configured during initial settings. ⚫ To security your account, it is recommended to keep the password properly and change it regularly. Click to display the password.
Page 237 Step 2 Click Forgot Password. The Reset Password interface is displayed. ⚫ Step 3 Click OK. ⚫ The reset type interface is displayed. See Figure 2-4. ⚫ Figure 2-4 ⚫ Step 4 Follow the onscreen instructions to scan the QR code and get the security code. You can get the security code twice by scanning the same QR code.
Page 238: Web Main Menu
⚫ Use the security code received in your email box to reset the password within 24 hours; otherwise the security code becomes invalid. Wrong security code entrance up to five times will cause the security code locked for five minutes. After five ⚫...
Page 239 ⚫ Figure 2-6 ⚫ Table 2-1 Icon Description ⚫ Includes configuration menu through which you can configure camera settings, network settings, storage settings, system settings, account settings, and view information. None Displays system date and time. When you point to , the current user account is displayed.
Page 240 Icon Description Includes eight function tiles: LIVE, PLAYBACK, AI, ALARM, POS, OPERATION, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile. LIVE: You can perform the operations such as viewing real-time video, ⚫ configuring channel layout, setting PTZ controls, and using smart talk and instant record functions if needed.
Page 241: Glossary
3 Glossary ⚫ DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network. ⚫ DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.
Page 242 output. It has two statuses: 1/0.
Page 243: Appendix 1 Cybersecurity Recommendations
Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is ⚫ connected to the internet. IP video surveillance is not immune to cyber risks,but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
Page 244 ⚫ We suggest that you change passwords regularly to reduce the risk of being guessed or cracked. Set and Update Passwords Reset Information Timely ⚫ The equipment supports password reset function. Please set up related information for password reset in time, including the end user’s mailbox and password protection questions. If the information changes, please modify it in time.
Page 245 ⚫ If your audio and video data contents are very important or sensitive, we recommend that you use encrypted transmission function, to reduce the risk of audio and video data being stolen during transmission. ⚫ Reminder: encrypted transmission will cause some loss in transmission efficiency. 12.
Page 246: Appendix 2 Hdd Capacity Calculation
Appendix 2 HDD Capacity Calculation ⚫ Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). ⚫ Step 1: According to Formula (1) to calculate storage capacity q i ⚫ that is the capacity of each channel ⚫...
Page 247  ×a% ⚫ In the formula:a% means alarm occurrence rate ⚫ HDD Capacity Calculation...
Page 248: Appendix 3 Compatible Network Camera List
Appendix 3 Compatible Network Camera List ⚫ Please note all the models in the following list for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Manufact Model Version Video Encode...
Page 249 √ MPix2.0DIR XNETM112011 H264 ONVIF 1229 √ VIPBL1.3MIR XNETM210011 H264 ONVIF 1229 √ IGC-2050F XNETM210011 H264 ONVIF 1229 √ CP PLUS CP-NC9-K 6.E.2.7776 H264 ONVIF/Private √ CP-NC9W-K 6.E.2.7776 H264 Private √ CP-ND10-R cp20111129AN H264 ONVIF √ CP-ND20-R cp20111129AN H264 ONVIF √...
Page 250 Manufact Model Version Video Encode Audio/Vid Protocol √ MPC-IPVD-03 k20111208BNS H264 ONVIF/Private 13AF √ Honeywell HIDC-1100PT h.2.2.1824 H264 ONVIF √ HIDC-1100P h.2.2.1824 H264 ONVIF √ HIDC-0100P h.2.2.1824 H264 ONVIF √ HIDC-1300V 2.0.0.21 H264 ONVIF √ HICC-1300W 2.0.1.7 H264 ONVIF √ HICC-2300 2.0.0.21 H264...
Page 251 Manufact Model Version Video Encode Audio/Vid Protocol -1.9082-A1.661 √ IDE20DN 1.7.41.9111-O3 H264 Private .6725 √ D5118 1.7.8.9310-A1. H264 Private 5288 √ IM10C10 1.6.13.9261-O2 H264 Private .4657 √ DD4N-X 01.02.0015 MPEG4 Private √ DD423-X 01.02.0006 MPEG4 Private √ D5220 1.8.3-FC2-2012 H264 Private 0614-1.9320-A 1.8035...
Page 252 Manufact Model Version Video Encode Audio/Vid Protocol √ SNC-VM630 1.5.0 H264 Private － √ SANYO VCC-HDN400 H264 ONVIF...
Page 253 Thank You for Choosing CP Plus! Website: - www.cpplusworld.com Email id: - sales@cpplusworld.com; support@cpplusworld.com...

CP Plus Orange User Manual

Foreword

Important Safeguards and Warnings

Table of Contents

Local Basic Operation

2 Web Operation

3 Glossary

Appendix 1 Cybersecurity Recommendations

Appendix 2 Hdd Capacity Calculation

Appendix 3 Compatible Network Camera List

Quick Links

Need help?

Questions and answers

Related Manuals for CP Plus Orange

Summary of Contents for CP Plus Orange

Table of Contents
