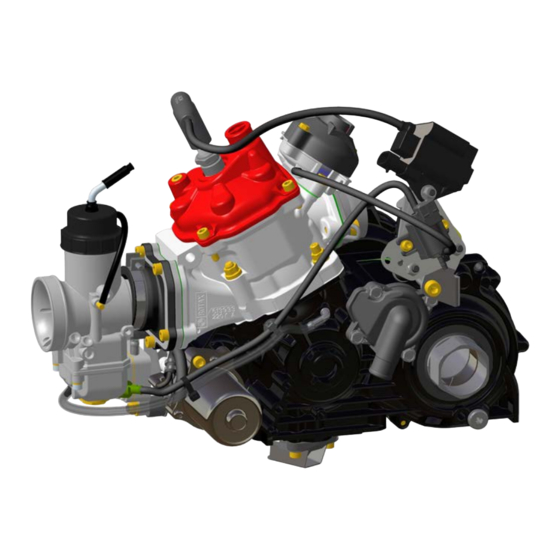

Installation instructions and
Operator's Manual
for ROTAX®-engines type
125 MAX DD2 evo
Part no.: 297733
Edition: 10/2019
BRP-Rotax GmbH & Co KG | Rotaxstrasse 1 | 4623 Gunskirchen, Austria | T: +43 7246 601 0 | F: +43 7246 6370
www.rotax.com | www.rotax-kart.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 125 MAX DD2 evo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rotax 125 MAX DD2 evo

Summary of Contents for Rotax 125 MAX DD2 evo

  • Page 1 Operator‘s Manual for ROTAX®-engines type 125 MAX DD2 evo Part no.: 297733 Edition: 10/2019 BRP-Rotax GmbH & Co KG | Rotaxstrasse 1 | 4623 Gunskirchen, Austria | T: +43 7246 601 0 | F: +43 7246 6370 www.rotax.com | www.rotax-kart.com...
  • Page 2 General information BRP-Rotax recommends products of the following companies:...
  • Page 3 For information regarding the repair of the engine 125 MAX DD2 evo contact an authorized service center or consult the workshop manual (available on the internet at www.rotax-kart.com). We ask to hand over this manual, the engine identity card and the product and service registration document to the new owner in case of a change of ownership.

  • Page 4: Table Of Contents

    2 – Fuel system Chapter 3 – Electric system Chapter 4 – Cooling system Chapter 5 – Exhaust system Chapter 6 – Installation of the accessories Chapter 7 – Finishing work Effectivity: 125 MAX DD2 evo Content Page 1 Edition: September 01 2019...
  • Page 5 BRP-Rotax INSTALLATION MANUAL NOTES Notes Effectivity: 125 MAX DD2 evo Edition /Rev. 0 Page 2 Edition: September 01 2019...

  • Page 6: Chapter Intro

    This document and all technical data and procedures therein are property of BRP-Rotax GmbH & Co KG and based on the state of knowledge at the time of publication The Manual has been drawn up to the best of our knowledge. However, excluding any liability.
  • Page 7 NOTE Indicates supplementary information which may be needed to fully complete or understand an instruction. ✔ Denotes a checking operation This information gives you additional advice and tips INTRO Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...
  • Page 8 Introduction Congratulations on choosing the ROTAX engine Type 125 MAX DD2 evo. The ROTAX® engine Type 125 MAX DD2 evo has been developed exclusively for use in Go-karts, which must only be run on specified tracks. This product has numerous technical innovations.
  • Page 9 BRP-Rotax INSTALLATION MANUAL UNBOXING AND PURCHASED PARTS PACKAGE By buying a ROTAX Engine, you will receive two boxes. The engine box and the accessory box. Figure 1.1: Unboxing Engine box The engine box contains the pre-assembled engine with the secure sticker, which de- scribes the run-in procedure.
  • Page 10 BRP-Rotax INSTALLATION MANUAL Effectivity: 125 MAX DD2 evo INTRO Page 5 Edition: September 01 2019...
  • Page 11 Fuel pump with fuel hose Exhaust system Manuals and engine identity card Several small parts (spark plug, screws,...) Hose package for RAVE control unit Carburetor Paddle shift system INTRO Effectivity: 125 MAX DD2 evo Page 6 Edition: September 01 2019...

  • Page 12: Engine Information

    BRP-Rotax INSTALLATION MANUAL ENGINE INFORMATION Engine serial number The engine serial number is stamped on the clutch side housing-half. Figure 1.3: Serial number of the engine, TYPICAL Effectivity: 125 MAX DD2 evo INTRO Page 7 Edition: September 01 2019...
  • Page 13 Figure 1.4: Information sticker Gear oil and fuel specifications See the latest Operators Manual. Equipment and modifications Modifications to engine and/or equipment are not allowed. INTRO Effectivity: 125 MAX DD2 evo Page 8 Edition: September 01 2019...

  • Page 14: Engine Installation

    ENGINE INSTALLATION TOPICS IN THIS CHAPTER Installation of overload clutch and engine with rear axle .................2 Engine installation with engine brackets ....................3 Direct attachment of the engine to chassis....................5 Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...
  • Page 15 NOTE The rear axle of the kart must have a smooth surface (no grooves for keys) in the area of the 4 plain bearings of the overload clutch. Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...
  • Page 16 WARNING Non-compliance can result in serious injuries or death! For engine attachment to the chassis, please fol- low the instruction of the chassis manufacturer. Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...
  • Page 17 BRP-Rotax INSTALLATION MANUAL Figure 2.4: Tightening sequence Allen screws Effectivity: 125 MAX DD2 evo Page 4 Edition: September 01 2019...
  • Page 18 ENGINE TO CHASSIS If the frame of the chassis is specially prepared for in- stallation of the ROTAX® 125 MAX DD2 evo, then 2 sheet metal brackets with holes are welded onto the two frame tubes. The engine is clamped between the two brackets with 4 bolts.
  • Page 19 BRP-Rotax INSTALLATION MANUAL NOTES Notes Effectivity: 125 MAX DD2 evo Edition /Rev. 0 Page 6 Edition: September 01 2019...

  • Page 20: Fuel System

    Chapter: 2 FUEL SYSTEM TOPICS IN THIS CHAPTER Installation and connection of the fuel pump...................2 Installation of the Bowden cable for carburetor control................4 Installation and connection of the carburetor ..................6 Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...
  • Page 21 (pos. 1) on the gearbox cover by of circlip pliers. using 2 screws M6x30 (pos. 3) and washers (pos. 2). ATTENTION Fuel hose can be damaged! Avoid excessive widening of the fuel hose. Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...
  • Page 22 ATTENTION The flow in the impulse hose and fuel lines must not be restricted by the use of cable ties. Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...
  • Page 23 (throttle pedal). tach with the cable ties supplied. Make sure that the Bowden cable does not Connect Bowden cable to throttle touch any moving parts or the track. pedal. Effectivity: 125 MAX DD2 evo Page 4 Edition: September 01 2019...
  • Page 24 The Bowden cable must not be under full tension when the throttle is in fully open position. Effectivity: 125 MAX DD2 evo Page 5 Edition: September 01 2019...

  • Page 25: Installation And Connection Of The Carburetor

    (pos. 2) in vertical position. Connect the outlet hose of the fuel pump with fuel inlet (pos. 3) on the carburetor. Figure 3.6 Hose clamp Carburetor Fuel inlet Effectivity: 125 MAX DD2 evo Page 6 Edition: September 01 2019...

  • Page 26: Electric System

    ELECTRIC SYSTEM TOPICS IN THIS CHAPTER Electric system overview.........................2 Installation ECU into the battery clamp assy....................3 Installation of the battery clamp assy......................5 Installation of the wiring harness ......................7 Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...

  • Page 27: Electric System Overview

    Figure 4.1 Connector pickup sensor Connector starter Connector battery Connector RAVE (only applicable 125 MAX evo) Connector ignition coil Connector ECU Tie wrap 250x4.8 Connector shift contact Tie wrap 142x3.2 Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...

  • Page 28: Installation Ecu Into The Battery Clamp Assy

    It fits only in one position to the rubber Make sure that the connection cable has been pad. installed between the two pads. The connection of the ECU is on the rear side (against the driving direction). Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...
  • Page 29 BRP-Rotax INSTALLATION MANUAL Figure 4.4 Rubber pad Connection cable ECU connector Effectivity: 125 MAX DD2 evo Page 4 Edition: September 01 2019...

  • Page 30: Installation Of The Battery Clamp Assy

    11 Multiple function switch Allen screw with rounded flange head (pos. 9). The battery fixture (pos. 5) can be fixed with one screw on one side of the clamp (pos. 3). Effectivity: 125 MAX DD2 evo Page 5 Edition: September 01 2019...
  • Page 31 Figure 4.7 Battery terminals Step Procedure Connect the positive terminal (red) of the battery. Connect the negative terminal (black) of the battery. Figure 4.9 Retaining lugs Flange head screw Effectivity: 125 MAX DD2 evo Page 6 Edition: September 01 2019...

  • Page 32: Installation Of The Wiring Harness

    Fasten cables with cable ties on the mounting plate. m WARNING Non-compliance can result in serious injuries or death! The wiring harness must not touch moving parts of the track. Effectivity: 125 MAX DD2 evo Page 7 Edition: September 01 2019...
  • Page 33 Do not tighten tie wrap yet in order to be able to change its position later on. Fasten the wire of the shift contact assy. with a tie wrap (pos. 1) on the bottom of the engine. Effectivity: 125 MAX DD2 evo Page 8 Edition: September 01 2019...
  • Page 34 If it's not possible to plug in the connector of the pick-up sensor, unscrew the pick-up sensor and change the angle or direction. See also section: Direct attachment of the engine to chassis. Effectivity: 125 MAX DD2 evo Page 9 Edition: September 01 2019...
  • Page 35 BRP-Rotax INSTALLATION MANUAL NOTES Notes Effectivity: 125 MAX DD2 evo Edition /Rev. 0 Page 10 Edition: September 01 2019...

  • Page 36: Cooling System

    Chapter: 4 COOLING SYSTEM TOPICS IN THIS CHAPTER Cooling system overview ........................2 Installation of the radiator ........................3 Intake silencer ............................4 Installation of the intake silencer with integrated airfilter ................5 Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...
  • Page 37 COOLING SYSTEM OVERVIEW Figure 5.1 Upper coolant water hose Radiator Clamp 16–25 Lower coolant water hose Rubber puffer Rubber puffer Washer Lock nut Allen screw — rounded flange head Hose clamps Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...

  • Page 38: Installation Of The Radiator

    Ensure that the air stream covers the complete ra- diator area. Push the lower coolant water hose (pos. 3) onto the lower socket of the radiator as well onto the water socket of the water pump housing. Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...
  • Page 39 Figure 5.2: Overview Intake silencer case Intake silencer cover Filter element Holder for filter element O-ring Intake silencer tube Clamp 50–70 Carburetor socket Allen screww. rounded flange head Lock nut M6 Effectivity: 125 MAX DD2 evo Page 4 Edition: September 01 2019...
  • Page 40 Procedure Step Attach the intake silencer on the chas- sis using the M6 Allen screw with rounded flange head (pos. 10). Effectivity: 125 MAX DD2 evo Page 5 Edition: September 01 2019...
  • Page 41 BRP-Rotax INSTALLATION MANUAL NOTES Notes Effectivity: 125 MAX DD2 evo Edition /Rev. 0 Page 6 Edition: September 01 2019...

  • Page 42: Exhaust System

    BRP-Rotax INSTALLATION MANUAL Chapter: 5 EXHAUST SYSTEM TOPICS IN THIS CHAPTER Exhaust system overview........................2 Installation of the exhaust system ......................3 Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...
  • Page 43 Exhaust system Silencer assy. Tension spring Spring stainless Exhaust gasket Retaining plate Spring stainless Rubber buffer Rubber buffer Washer 8.4 Exhaust socket assy. Lock nut M8 Exhaust gasket Spring stainless Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...
  • Page 44 Additional heat-resistant LOC- TITE is not necessary anymore. Step Procedure Secure the exhaust system on the ex- haust socket using the two supplied exhaust springs (pos. 14). Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...
  • Page 45 BRP-Rotax INSTALLATION MANUAL NOTES Notes Effectivity: 125 MAX DD2 evo Edition /Rev. 0 Page 4 Edition: September 01 2019...

  • Page 46: Installation Of The Accessories

    INSTALLATION OF THE ACCESSORIES TOPICS IN THIS CHAPTER Installation of mounting plate ........................2 Fitting of the spark plug...........................3 Installation and connection of the RAVE control unit ................4 Assembly of paddle shift system......................7 Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...

  • Page 47: Installation Of Mounting Plate

    NOTE Distance sleeve (pos. 3) has to be install be- tween engine housing and retaining plate. Dis- tance sleeve can be replaced by fitting of an additional seat stay. Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...

  • Page 48: Fitting Of The Spark Plug

    Fit supplied spark plug (pos. 1) and tighten 25 Nm (221 lbf in) to 27 Nm (239 lbf in). Install the spark plug connector (pos. 2), ensure correct engagement. Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...

  • Page 49: Installation And Connection Of The Rave Control Unit

    Do not tie up the pressure line completely! Figure 7.4 Hose package Metal connector Step Procedure Attach the other end of the hose pack- age (pos. 1) (short end with T-piece) to the fuel pump. Effectivity: 125 MAX DD2 evo Page 4 Edition: September 01 2019...
  • Page 50 Do not tighten cable ties too tight, because constricted lines can lead to loss of function. Step Procedure Attach an additional cable tie (pos. 3) as shown in figure. Figure 7.6 Hose package Effectivity: 125 MAX DD2 evo Page 5 Edition: September 01 2019...
  • Page 51 (pos. 4). Attach the other end of the pressure line to the exhaust valve (pos. 2). Figure 7.9 Pressure line Exhaust valve Magnetic valve Cable tie Effectivity: 125 MAX DD2 evo Page 6 Edition: September 01 2019...

  • Page 52: Assembly Of Paddle Shift System

    Install washer (pos. 1) on one of the two Bowden cables (pos. 2). Washer Bowden cable Shift contact guidance Step Procedure Mount Bowden cable with shift contact guidance (pos. 1) to the retaining plate (pos. 2). Effectivity: 125 MAX DD2 evo Page 7 Edition: September 01 2019...
  • Page 53 -2- must be given. Otherwise it sleeve onto the retaining plate (pos. can cause increased friction, which has a negative impact on shifting No washer is necessary on this Bow- behavior. den cable. Effectivity: 125 MAX DD2 evo Page 8 Edition: September 01 2019...
  • Page 54 Thread both ends of the Bowden ca- bles (pos. 1) through the cable support (pos. 2). Install the set screw (pos. 3) onto the cable support – just pre-as- semble it, do not tighten yet. Effectivity: 125 MAX DD2 evo Page 9 Edition: September 01 2019...
  • Page 55 (pos. 2) onto the top of the control whip (pos. 3). NOTE Figure 7.21 Top is the opposite side, where the screws of Allen screw Control lever the Bowden cables are attached. Control whip Washer Effectivity: 125 MAX DD2 evo Page 10 Edition: September 01 2019...
  • Page 56 Step Procedure Finally, the length of the Bowden ca- bles can be adjusted so that they do not disturb the driver when shifting. Effectivity: 125 MAX DD2 evo Page 11 Edition: September 01 2019...
  • Page 57 BRP-Rotax INSTALLATION MANUAL Figure 7.25 Cable abutment Screw Control whip Effectivity: 125 MAX DD2 evo Page 12 Edition: September 01 2019...

  • Page 58: Finishing Work

    To warrant engine operation within temperature limits of the coolant, a temperature sensor for observation of the coolant temperature is required. NOTE Refer to Operators Manual for operating limits. Effectivity: 125 MAX DD2 evo Page 1 Edition: September 01 2019...
  • Page 59 Hand-tighten air vent screw (pos. 1). oil as described in the following steps. NOTE For gearbox oil specifications and oil capacity (total) see the latest Operators Manual. Figure 8.2 Air vent screw Effectivity: 125 MAX DD2 evo Page 2 Edition: September 01 2019...
  • Page 60 Tighten magnetic oil drain plug (pos. 1) to 20 Nm (177 lbf.in.). m WARNING Non-compliance can result in serious injuries or death! Do not run the engine without gear oil. This will lead to engine failure. Effectivity: 125 MAX DD2 evo Page 3 Edition: September 01 2019...
  • Page 61 The venting hose must not reach all the way to the bottom of the collecting reservoir. ATTENTION Do not attach the venting hose on the bottom of the collecting reservoir, if only one reservoir is in use. Effectivity: 125 MAX DD2 evo Page 4 Edition: September 01 2019...

  • Page 62: Cooling System Overview

    Wiring harness, installation ........7 Finishing work............1 Fuel pump, connection ..........2 Fuel pump, installation...........2 Fuel system, installation ........1 Intake silencer ............4 Intake silencer, installation ........5 INTRO ..............1 Mounting plate, installation........2 Index Effectivity: 125 MAX DD2 evo Page 5 Edition: September 01 2019...
  • Page 63 Operator‘s Manual...
  • Page 64 Chapter 1 – Technical Description Chapter 2 – Operating fluids and battery Chapter 3 – Engine calibration Chapter 4 – Engine operation Chapter 5 – Preservation and transport Effectivity: 125 MAX DD2 evo Content Page 1 Edition: September 01 2019...
  • Page 65 BRP-Rotax Operators Manual NOTES Page 2 Effectivity: 125 MAX DD2 evo Edition: September 01 2019...

  • Page 66: Chapter: Intro General Information

    BRP-Rotax GmbH & Co KG. BRP-Rotax GmbH & Co KG reserves the right at any time to discontinue or change specifications, prices, designs, features, models or equipment without incurring obligation.
  • Page 67 BRP-Rotax Operators Manual NOTES Page 2 Effectivity: 125 MAX DD2 evo Edition: September 01 2019...
