8.3 Mounting instructions for SR25.2 peristaltic pump (optional)

Make sure to mount the pump to the front of the cooler with a minimum distance of 3.5
mm (0.138") and a maximum distance of 5.5 mm (0.216") between the pump motor and
the front panel.
The minimum distance avoids damages to the pump motor and the maximum distance
prevents the motor shaft from getting loose.

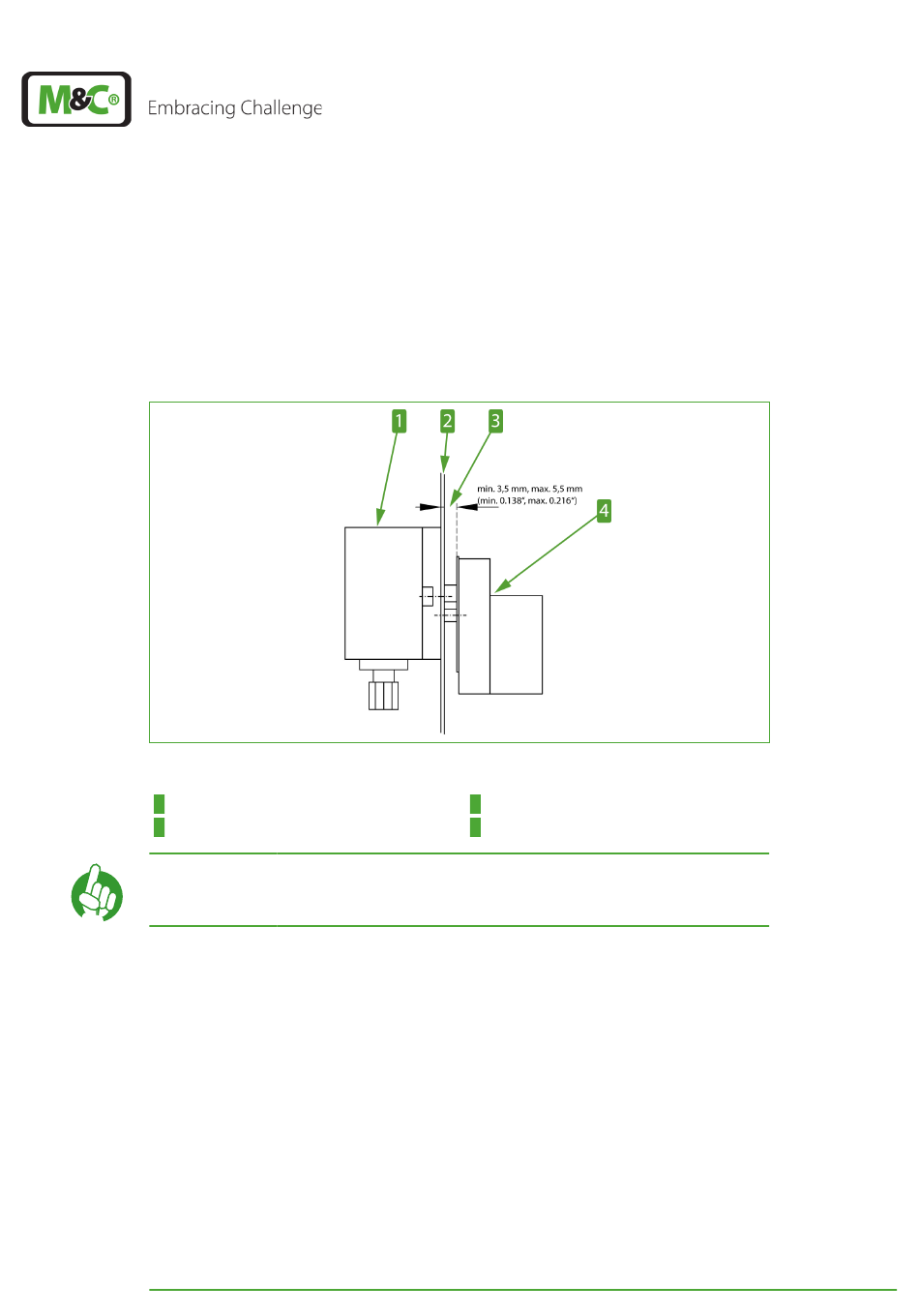

Fig. 32: SR25.2: Mounting distance between pump motor and front panel

1
Pump head (outside the EC-30C housing)
3
Recommended mounting distance
For more mounting instructions, see the SR25.2 instruction manual.
Note
The manual is available on our website www.mc-techgroup.com.
43
EC-30C | 1.00.02
2
Front panel of the EC-30C
4
Pump motor (inside the EC-30C housing)
