1
2

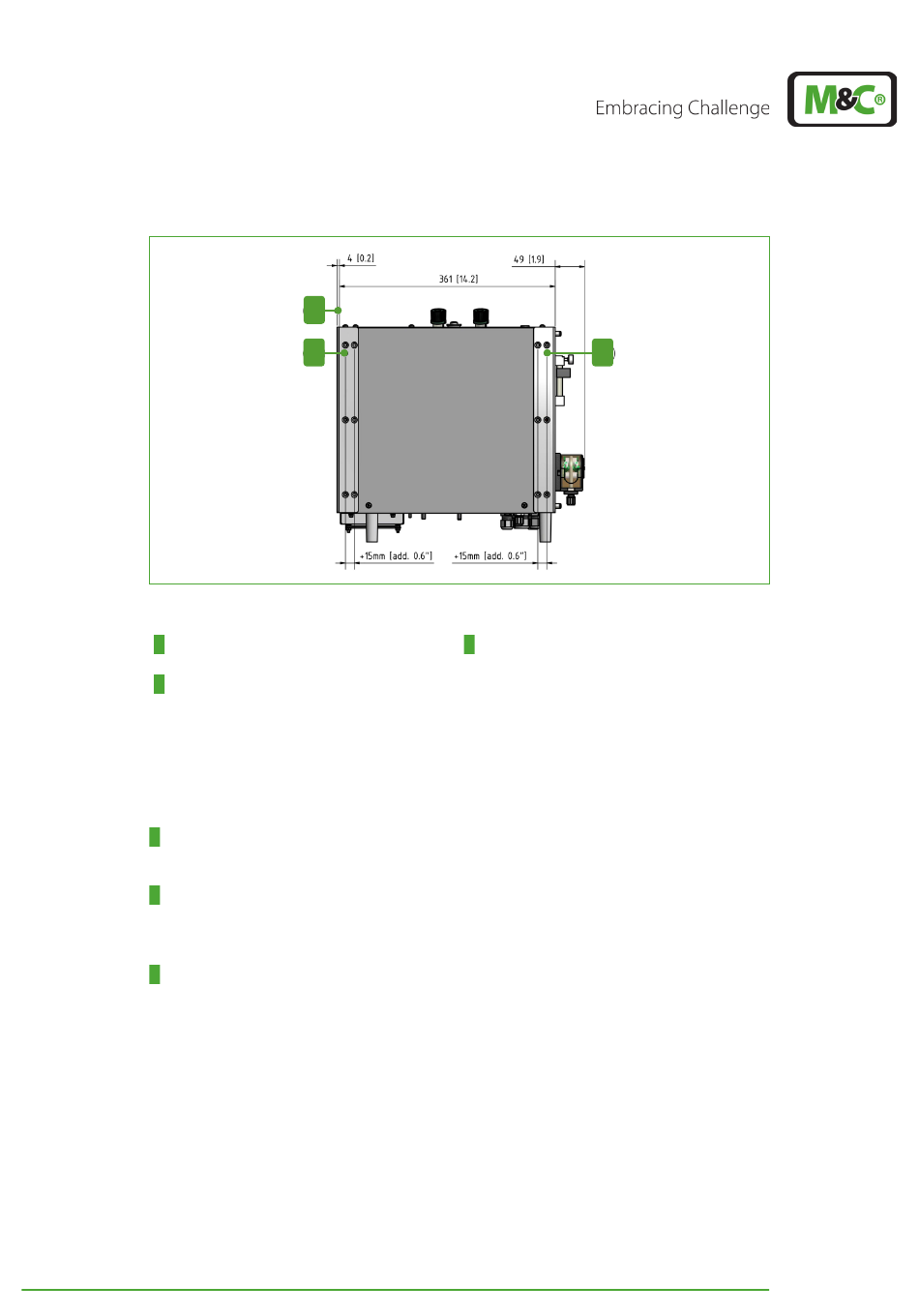

Fig. 31: Mounting rail for wall or rack mounting
1
Back-mounting rail for wall mounting: min.
4 mm (0.16") wall distance
3
Front-mounting rail for 19" rack: housing
front aligned to or 15 mm (0.6") behind the
front of the mounting bracket
To mount the EC-30C with the provided mounting rails, please follow these instructions
(numbers correspond to Fig. 31 on page 42):
1
The mounting rails can be attached to the side panels close to the rear of the housing.
The minimum distance between the wall and the housing will be in this case 4 mm (0,16").
2
The mounting rails can be attached to the side panels close to the rear of the housing.
The maximum distance between the wall and the housing will be in this case 19 mm
(0.75").
3
The mounting rails can be attached to the side panels close to the front of the housing
(19" rack mount). In this case the front of the housing can either be aligned with or 15 mm
(0.6") behind the front of the mounting bracket.
EC-30C | 1.00.02
+49 2102 935 888
3
Abmessungen in mm [Inch]
2
Back-mounting rail for wall mounting: max.
19 mm (0.75") wall distance
www.mc-techgroup.com
42
