Product overview

4.1 Application

The M&C ultra-low cooler EC-30C is used in the gas analysis technique to reduce the dew
point of humid sample gases and to provide a stable and very low dew point. This elimi-
nates condensate built-up and aerosol formation in the analyzer.
Due to the extremely stable and low gas dew point, there are no water vapor cross-sensi-
tivity and volumetric errors.
Sample gas IN

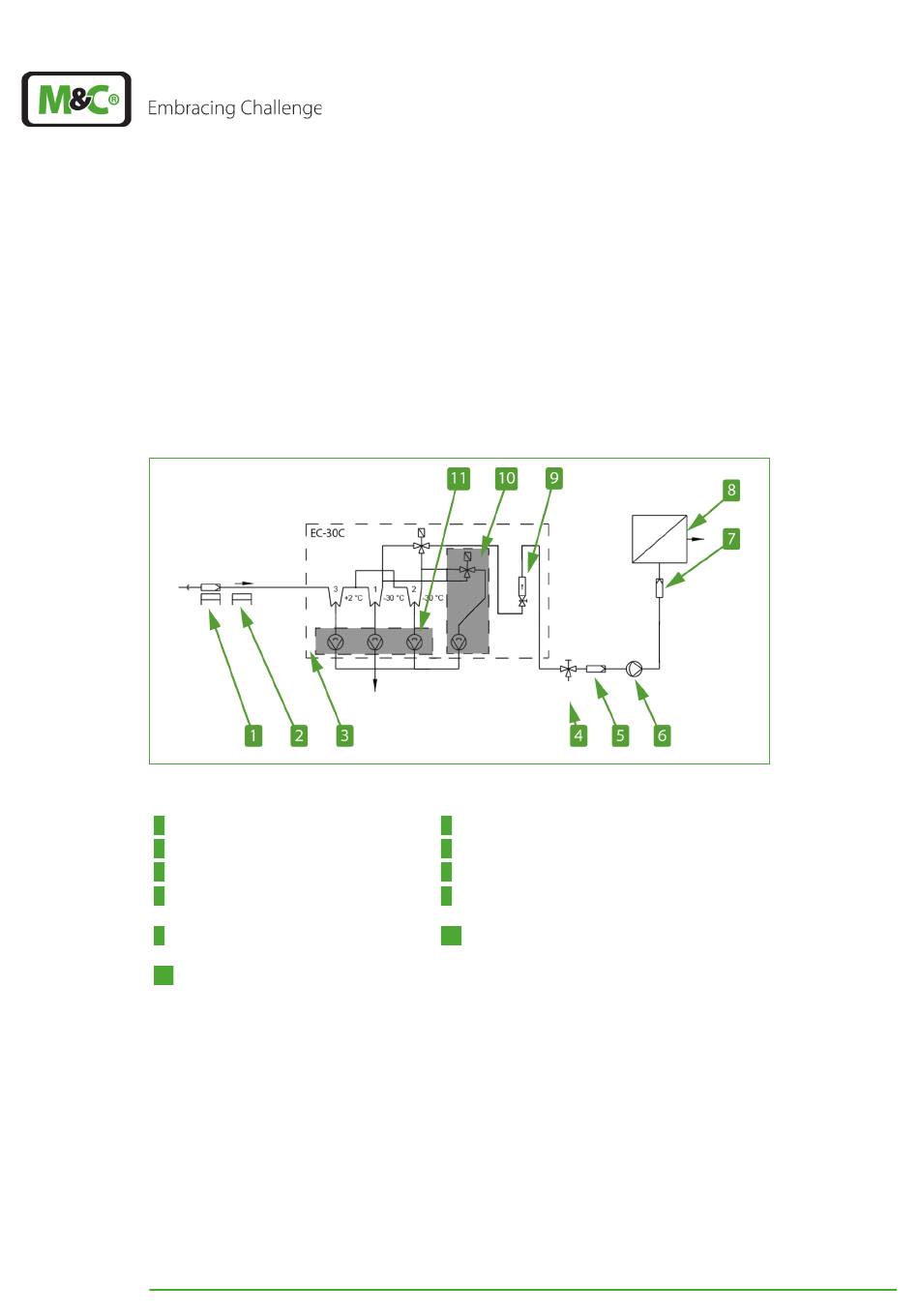

Fig. 1:
Application example of the EC-30C
1
Gas sample probe SP2000-H
3
Ultra-low cooler EC-30C
5
Filter
7
Aerosol filter CLF -5/W optional depend-
ing on application
9
Flow meter FM40, 25-250 Nl/h
11
Option: three SR25.2 peristaltic pumps
(condensate removal)
11
EC-30C | 1.00.02
Condensate OUT
2
Electrically heated sample line 4M4/6
4
3-way ball valve 3L/PV-1
6
Bellows pump MP-F
8
Analyzer, e.g. PMA1000
10
Option: 4.peristaltic pump with solenoid valve
(heat exchanger purging)
