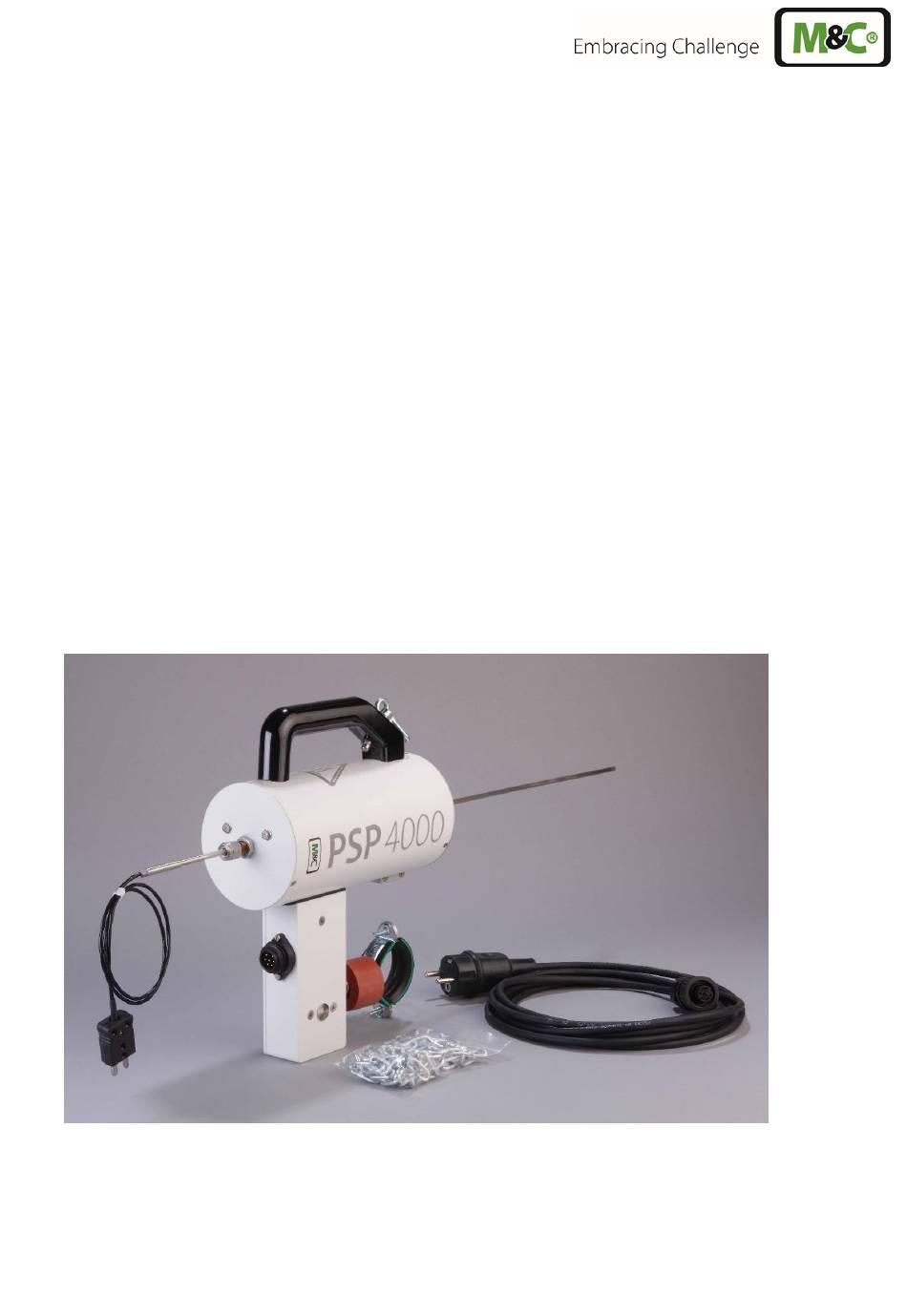

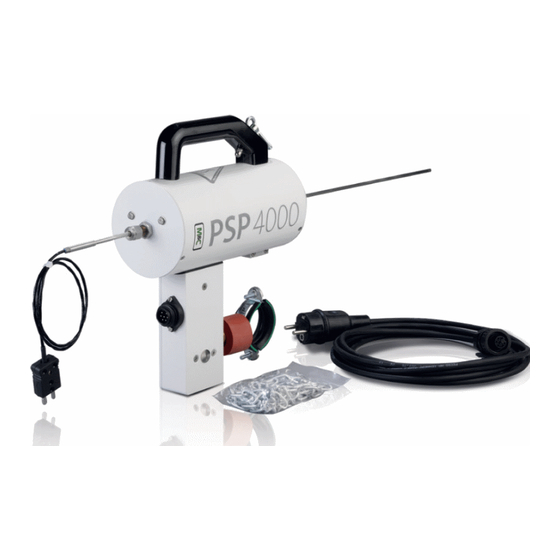

- Page 1 Electrically-Heated and Portable Gas Sample Probe PSP4000-H, PSP4000-H/C, PSP4000-H/C/T Instruction Manual Version 1.01.00...
- Page 2 This instruction manual does not claim completeness and may be subject to technical modifications. © 07/2019 M&C TechGroup Germany GmbH. Reproduction of this document or its content is not allowed without permission from M&C. ® is a registered trade mark. Version: 1.01.00 PSP4000-H | 1.01.00 www.mc-techgroup.com...
-
Page 3: Table Of Contents
Carrying case to transport sample probe ................24 Figure 6 Filter unit and connection of the heated sample line ............25 Figure 7 High temperature sample tube, aluminium oxide .............. 26 Figure 8 Electrically heated sample tube SP34-H ................27 www.mc-techgroup.com PSP4000-H | 1.01.00... -
Page 4: General Information
The requirements of the RoHS2 (‘Restriction of Hazardous Substances 2’) directive 2011/65/EU and its annexes are met. Declaration of conformity The EU Declaration of conformity can be downloaded from the M&C homepage or directly requested from M&C. PSP4000-H | 1.01.00 www.mc-techgroup.com... -
Page 5: Safety Instructions
If you return a device to M&C, please be sure that it is properly packaged and shipped with protective packaging. The repaired or replaced device will be shipped free of delivery charges to the point of use. www.mc-techgroup.com PSP4000-H | 1.01.00... -
Page 6: Used Terms And Signal Indications
Protect your eyes while working with chemicals or sharp objects. Wear safety glasses to avoid getting something in your eyes. Wear protective clothes! Working with chemicals, sharp objects or extremely high temperatures requires wearing protective clothes. PSP4000-H | 1.01.00 www.mc-techgroup.com... -
Page 7: Introduction
Always quote the device's serial number when making enquiries and ordering replacement parts. POWER SUPPLY Depending on the version, the probe is operated with 115 or 230 V AC. Precise details can be found on the device's nameplate. www.mc-techgroup.com PSP4000-H | 1.01.00... -
Page 8: Technical Data
TECHNICAL DATA Probe series SP® PSP4000-H PSP4000-H / C PSP4000-H /C /T portable version PSP4000 Part No. 230V 40S1000 40S1005 40S1015 Part No. 115V 40S1000a 40S1005a 40S1015a Sample temperature max. 600 °C *standard Sample pressure max. 1 bar Ambient temperature -20 °C to +60 °C... -
Page 9: Options
OPTIONS Part No. 40S9130 Extra charge for PSP4000-H with ø 8 mm tube connector in the sample gas outlet Extra charge for PSP4000-H/FW with stainless steel filter wool receptacle including 40S9100 glass wool filling, filter S-2K not included, connection M 12, material: SS 316Ti Sample adapter with variable sample tube length: Adapter fitting 3/8“... - Page 10 1) Please pay attention to the characteristic feature of ceramic in case of high and changing temperatures! Hastelloy® is the brand name of Haynes International Inconel® is a brand name of Special Metals Corporation Kanthal® is a trademark of the Sandvik Group PSP4000-H | 1.01.00 www.mc-techgroup.com...
-
Page 11: Applications
APPLICATIONS The PSP4000-H... gas sample probes are used for extraction of gases from dust loaded, high- temperature or humid processes. Due to its compact design and low weight, the device is envisaged particularly for mobile uses. The basic probe including the compact sample adapter with variable probe tube lengths enable rapid and centric gas sampling from, for example, exhaust gas pipes with diameters of between 150 mm [≈... -
Page 12: Receipt Of Goods
The standard length of this thermocouple sensor is 600 mm [≈ 23.6”]. Optionally available is the PSP transport case for transporting the PSP4000-H... gas-sample probe including a maximum 5 m [≈ 16.4 ft] heated sample line PSP 4M4/6 resp. max. 8 m [≈ 26.2 ft] for type PSP-W4M4/6. -
Page 13: Supply Connections
M&C's heated sample lines type PSP 4M4/6 and PSP-W4M4/6 are manufactured to fit the mechanical and electrical connections to the PSP4000-H... gas sample probe and already contain an internal line for the probe's power supply. -
Page 14: Electrical Connection
• Screw on the front part of the tension clip again. • In the case of the PSP4000-H screw down the black knob on the rear side of the protective casing and tighten by hand. • In the case of the PSP4000-H/C, PSP4000-H/C/T, the flat nut and the dummy bolt of the... -
Page 15: 14.4 Temperature Measurement
(rear side). • In the case of the PSP4000-H/C, PSP4000-H/C/T, the dummy bolt and the flat nut located on the rear side of the threaded connection must be loosened and removed to do this. -
Page 16: Maintenance
• Use personal protective equipment To do this in the case of the PSP4000-H, screw off the black knob on the rear side. In the case of the PSP400-H/C with sample-gas connection and PSP4000-H/C/T with temperature measurement the dummy bolt on the rear side is first to be removed and the thermo-element drawn out. - Page 17 Check the filter element seals and the O-ring at the filter head and replace if necessary. Clean filter chamber. Clean or rod through the sampling tube in order to remove any deposits. Then re-assemble in reverse order. www.mc-techgroup.com PSP4000-H | 1.01.00...
-
Page 18: Switching Off
Do not inhale vapors and avoid contact with skin, eyes and clothing! • Wear safety glasses and appropriate protective clothing. DISPOSAL If the device has reached the end of its life cycle, please observe the legal requirements and any other existing standard regulations in your country. PSP4000-H | 1.01.00 www.mc-techgroup.com... -
Page 19: Spare Parts List
94S0025 Tube connection 6 mm for PSP4000-H/C 94S0020 Blind cap complete for PSP4000-H/C 94S0030 Viton® o-ring 3 for PSP4000-H/C blind cap 94S0035 PTFE fix ring for PSP4000-H/C/T thermoelement connection Viton® is a registered trademark of Dupont Performance Elastomers L.L.C. novapress® is a registered trademark ist ein eingetragenes Markenzeichen der Frenzelit GmbH. -
Page 20: Appendix
High temperature sample tube aluminium oxyde • Electrically heated sample tube SP34-H Further product documentation can be seen and downloaded from our home page: www.mc-techgroup.com Data sheet – portable heated sample probe PSP4000-H Document: 2.18 Data sheet - electrically heated sample probe tube SP34-H Document: 2.19... -
Page 21: Figure 2 Sample Facilities
Figure 2 Sample facilities www.mc-techgroup.com PSP4000-H | 1.01.00... -
Page 22: Figure 3 Wiring Plan
Figure 3 Wiring plan PSP4000-H | 1.01.00 www.mc-techgroup.com... -
Page 23: Figure 4 Basic Version
Figure 4 Basic version www.mc-techgroup.com PSP4000-H | 1.01.00... -
Page 24: Figure 5 Carrying Case To Transport Sample Probe
Figure 5 Carrying case to transport sample probe PSP4000-H | 1.01.00 www.mc-techgroup.com... -
Page 25: Figure 6 Filter Unit And Connection Of The Heated Sample Line
Figure 6 Filter unit and connection of the heated sample line www.mc-techgroup.com PSP4000-H | 1.01.00... -
Page 26: Figure 7 High Temperature Sample Tube, Aluminium Oxide
Figure 7 High temperature sample tube, aluminium oxide PSP4000-H | 1.01.00 www.mc-techgroup.com... -
Page 27: Figure 8 Electrically Heated Sample Tube Sp34-H
Figure 8 Electrically heated sample tube SP34-H www.mc-techgroup.com PSP4000-H | 1.01.00...
