7.8.2

Diagram of the deep cooling units (DCU 1 and DCU 2)

Starting from the pre-cooling unit (PCU) temperature diagram screen, please press the
DOWN button to reach the temperature diagram of the two deep-cooling units. Here
both deep-cooling units are displayed in one diagram.
The fine line shows the temperature characteristic of DCU 1 and the thicker line shows the
characteristic of DCU 2.

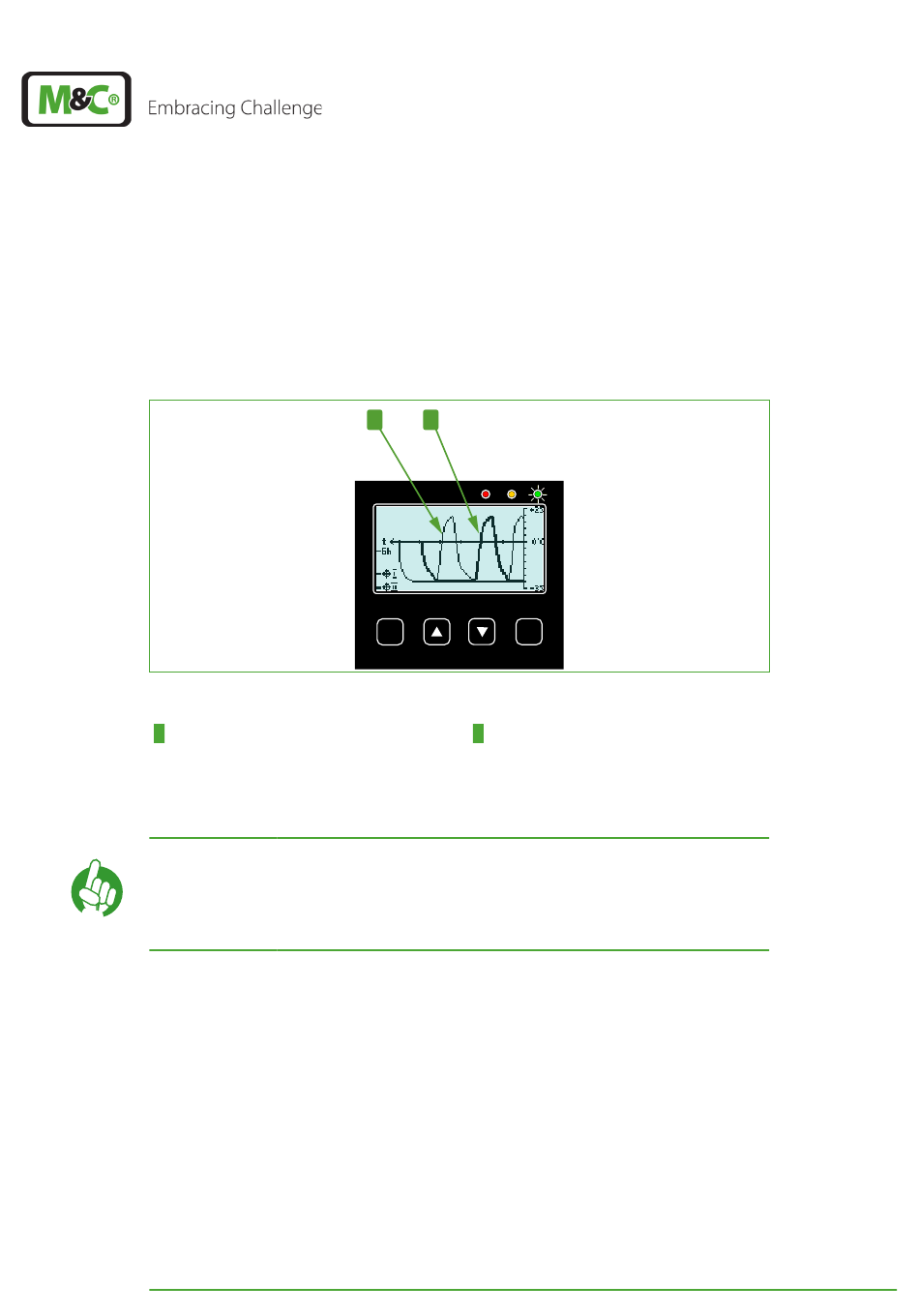

Fig. 21: Temperature diagram of the deep-cooling units

1
Diagram of DCU 1
The temperature range of the y-axis is limited from -35 °C to +25 °C (~-31 °F to +77 °F).
Measured values exceeding or going below this temperature range will not be displayed.
Broken temperature lines are caused by switching the unit off and on
again.
Note
When the EC-30C is turned off, and for excample after 2 hours turned
on again, the temperature of the deep-cooling units will have
changed. This leads to a broken line in the diagram.
33
EC-30C | 1.00.02
1
2
PRG
ESC
2
Diagram of DCU 2
