7

Using the EC-30C

7.1 Graphical user interface (GUI)

The EC-30C has a graphical, icon-based intuitive menu navigation. The graphic user inter-
face includes three LED indicators, the display and the operating buttons. The figure be-
low shows the screen, where the deep cooling unit has reached its target temperature of
-30 °C (~-22 °F), and describes the components of the user interface.
4
5
6

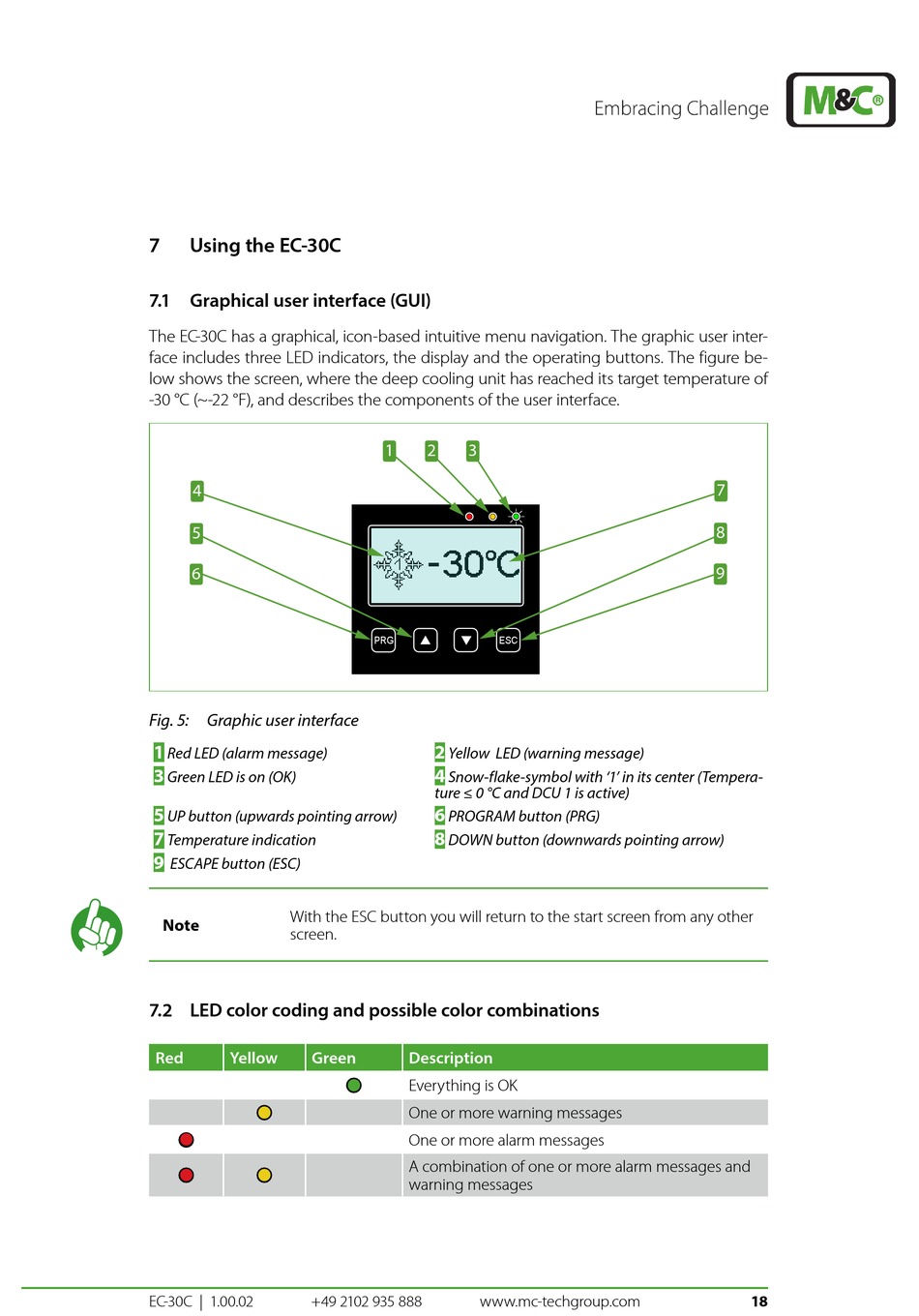

Fig. 5: Graphic user interface

1
Red LED (alarm message)
3
Green LED is on (OK)
5
UP button (upwards pointing arrow)
7
Temperature indication
9
ESCAPE button (ESC)
With the ESC button you will return to the start screen from any other
Note
screen.

7.2 LED color coding and possible color combinations

Red Yellow Green


 
EC-30C | 1.00.02 +49 2102 935 888
1 2 3
PRG ESC
2
Yellow LED (warning message)
4
Snow-flake-symbol with '1' in its center (Tempera-
ture ≤ 0 °C and DCU 1 is active)
6
PROGRAM button (PRG)
8
DOWN button (downwards pointing arrow)
Description
Everything is OK

One or more warning messages
One or more alarm messages
A combination of one or more alarm messages and
warning messages
www.mc-techgroup.com
7
8
9
