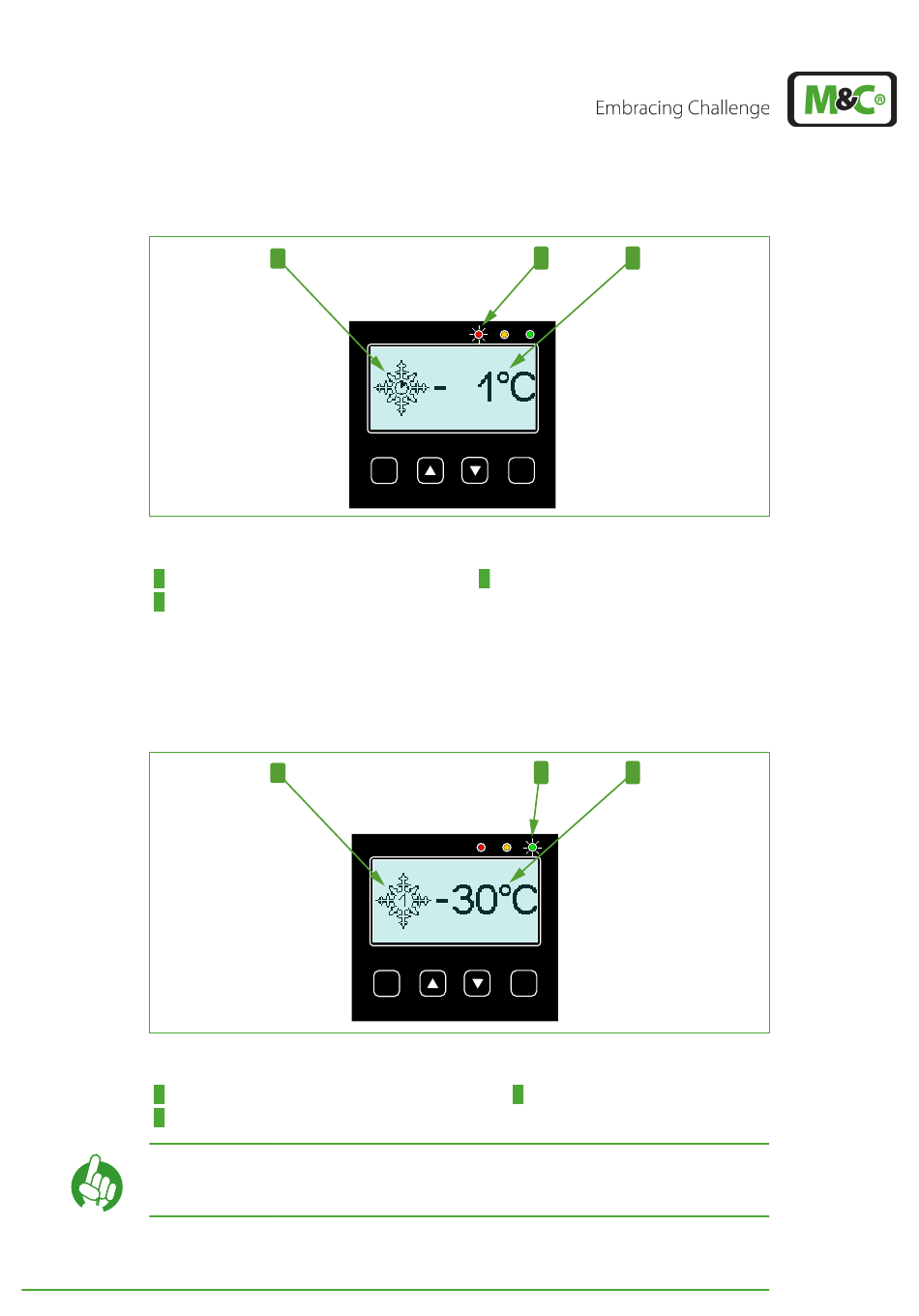

Fig. 10: Start-up phase: TKS reaches and/or exceeds '0 °C / 32 °F'-limit
1
Snowflake-symbol with a clock in its center
3
Temperature of the active DCU
As soon as the first DCU reaches the 0 °C (32 °F) temperature limit, the thermometer-sym-
bol changes to a snowflake-symbol. The clock in its center stands for the start-up phase of
the active DCU. The EC-30C is still in alarm modus (red LED is on), because the DCU has not
reached its target temperature yet.
1

Fig. 11: Start-up phase: Target temperature reached

1
Snowflake-symbol with '1' for DCU 1
3
Temperature of the active DCU (here DCU 1)
The '1' in the center of the snowflake stands for the active deep-cool-
Note
ing unit DCU 1.
EC-30C | 1.00.02
+49 2102 935 888
2
PRG
ESC
2
Red LED is on (alarm)
2
PRG
ESC
2
Green LED is on (ready for operation)
www.mc-techgroup.com
