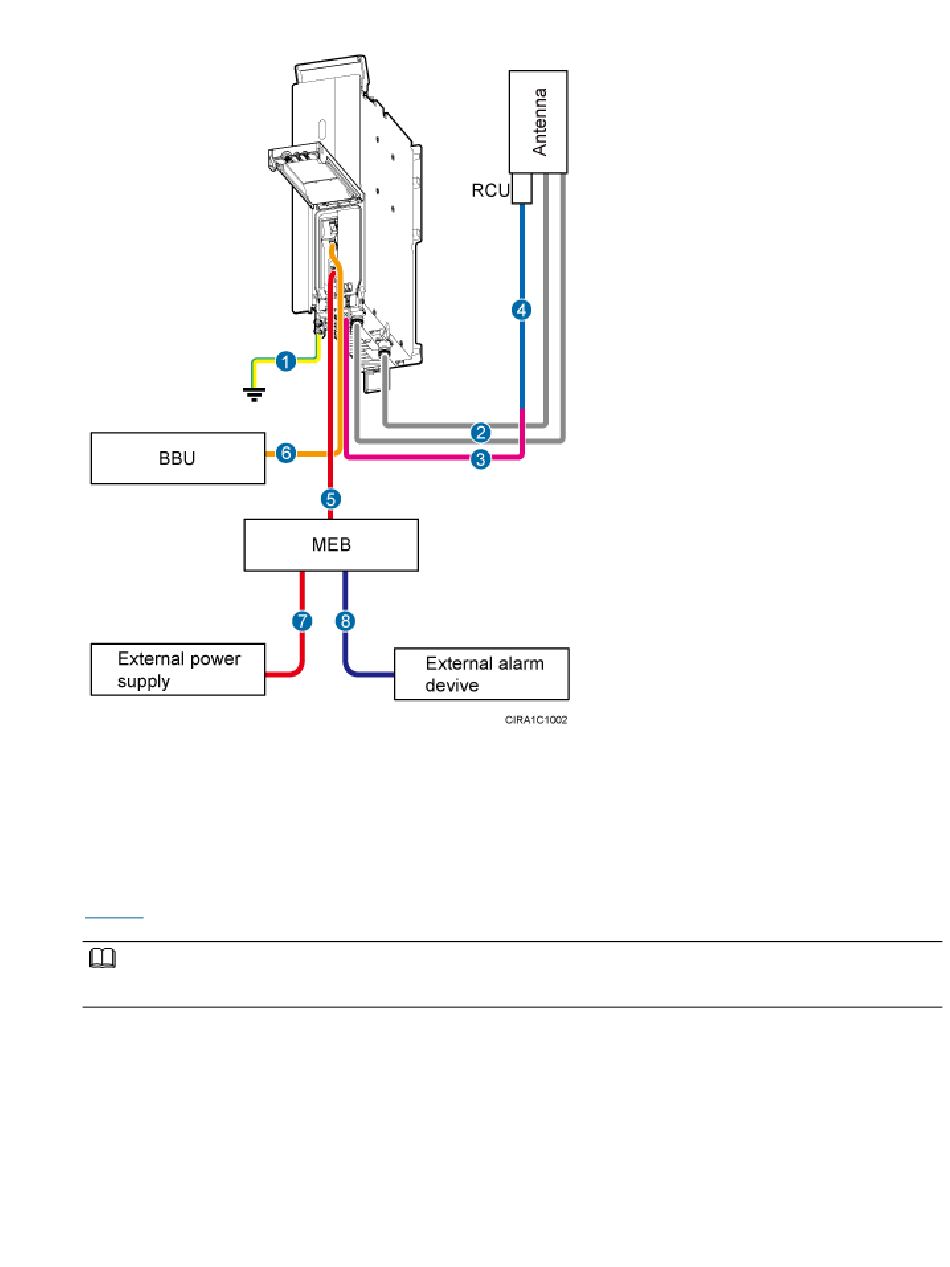

Figure 2 Cable connections of a single-mode RRU (MEB installed)
(1) RRU PGND cable
(4) RRU AISG extension cable
(7) MEB power cable
shows the cable connections of a multimode RRU.
Figure 3
NOTE:
RRU5309 and RRU5309w are not supported in multimode scenarios.
(2) RRU RF jumper
(5) RRU power cable
(8) MEB alarm cable
(3) RRU AISG multi-wire cable
(6) CPRI optical fiber
-
