Installing The First Rru Onto The Main Bracket; Removing The Rru Main Bracket - Huawei RRU5909 Installation Manual

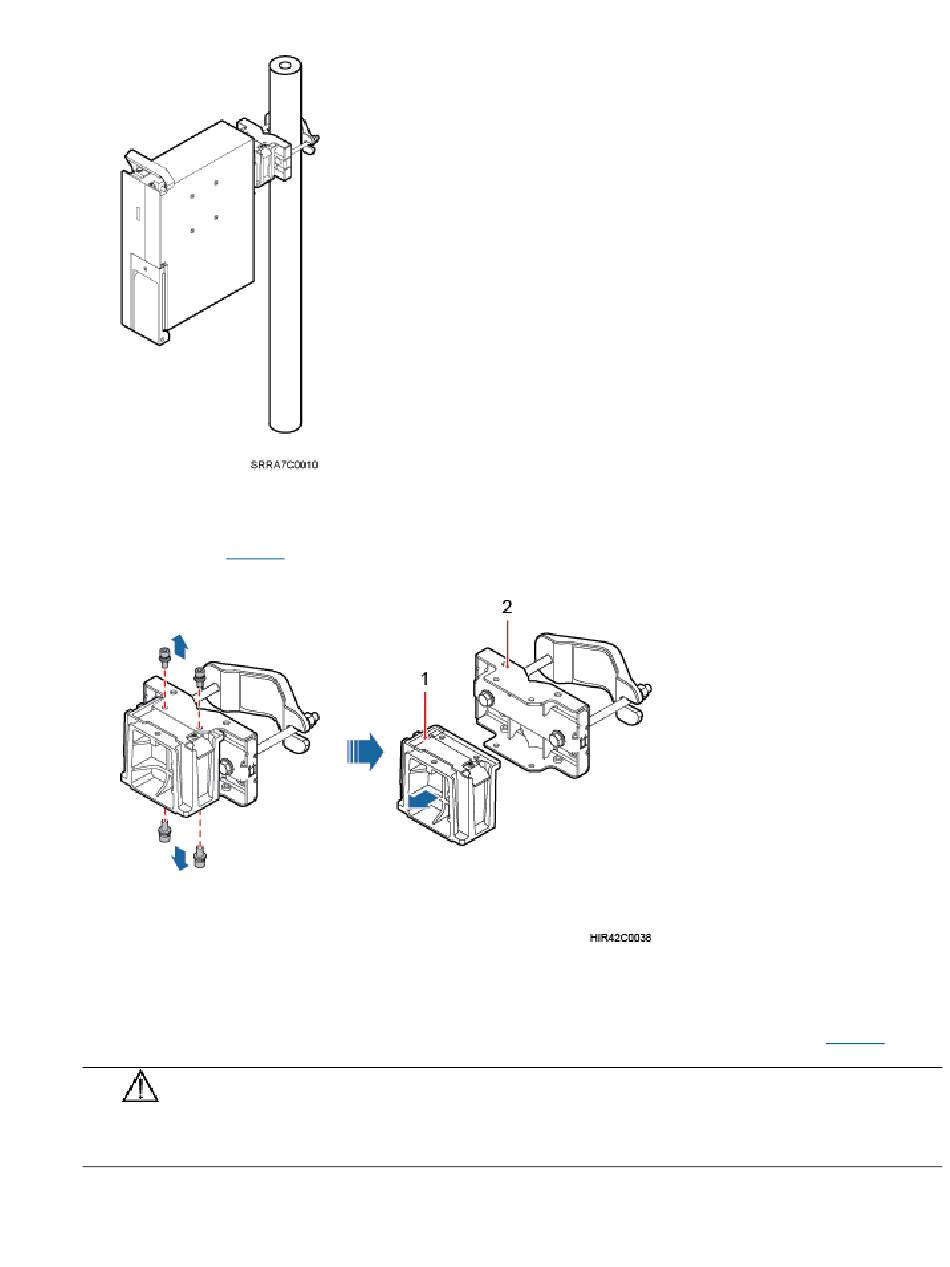

Figure 1 Installing the first RRU onto the main bracket
2. Use an M6 inner hexagon screwdriver to loosen the four hex socket screws from the main
bracket and pole mounting kit on the second set of mounting kits, and remove the main bracket,
as shown in
Figure 2
Figure 2 Removing the RRU main bracket
(1) Main bracket
3. Install the removed main bracket on one side of the first main bracket, as shown in
NOTICE:
The second main bracket must be installed, with the open ends of U-shaped slots on both sides
facing downwards.
.
(2) Pole mounting kit
.
Figure 3
