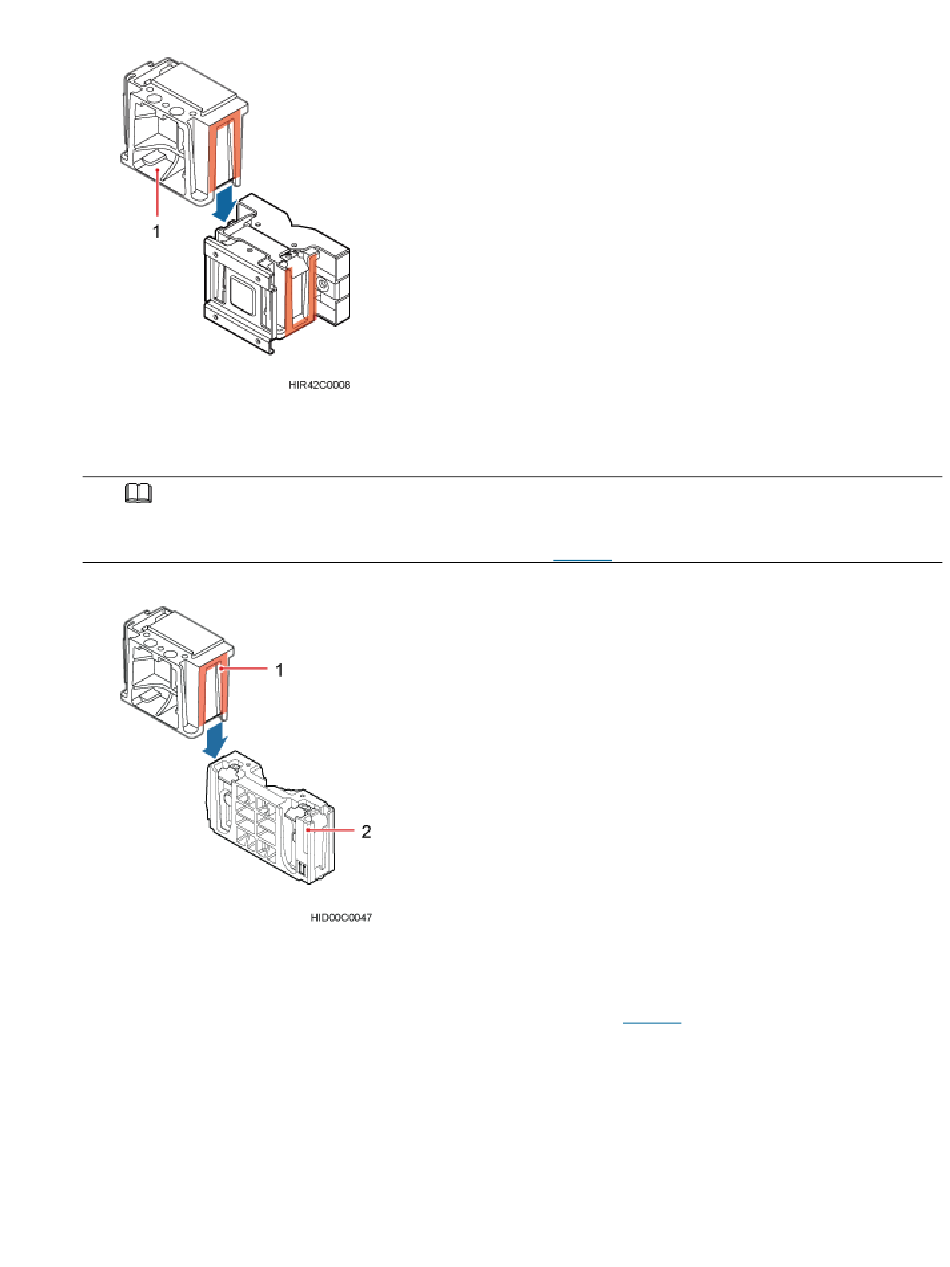

Figure 3 Installing the second main bracket
(1) Removed main bracket
NOTE:
The main mounting bracket for installing a blade RRU can connect to the main mounting bracket for installing a
common RRU in the scenarios of adding RRUs, as shown in
Figure 4 Connecting to the main mounting bracket for installing a common RRU

(1) Main mounting bracket for a blade RRU

4. Install the second RRU onto the main bracket, as shown in
Figure 4 .
(2) Main mounting bracket for a common RRU
.
Figure 5
