2. Strip the specified length of the sheath off the power cable, as shown in

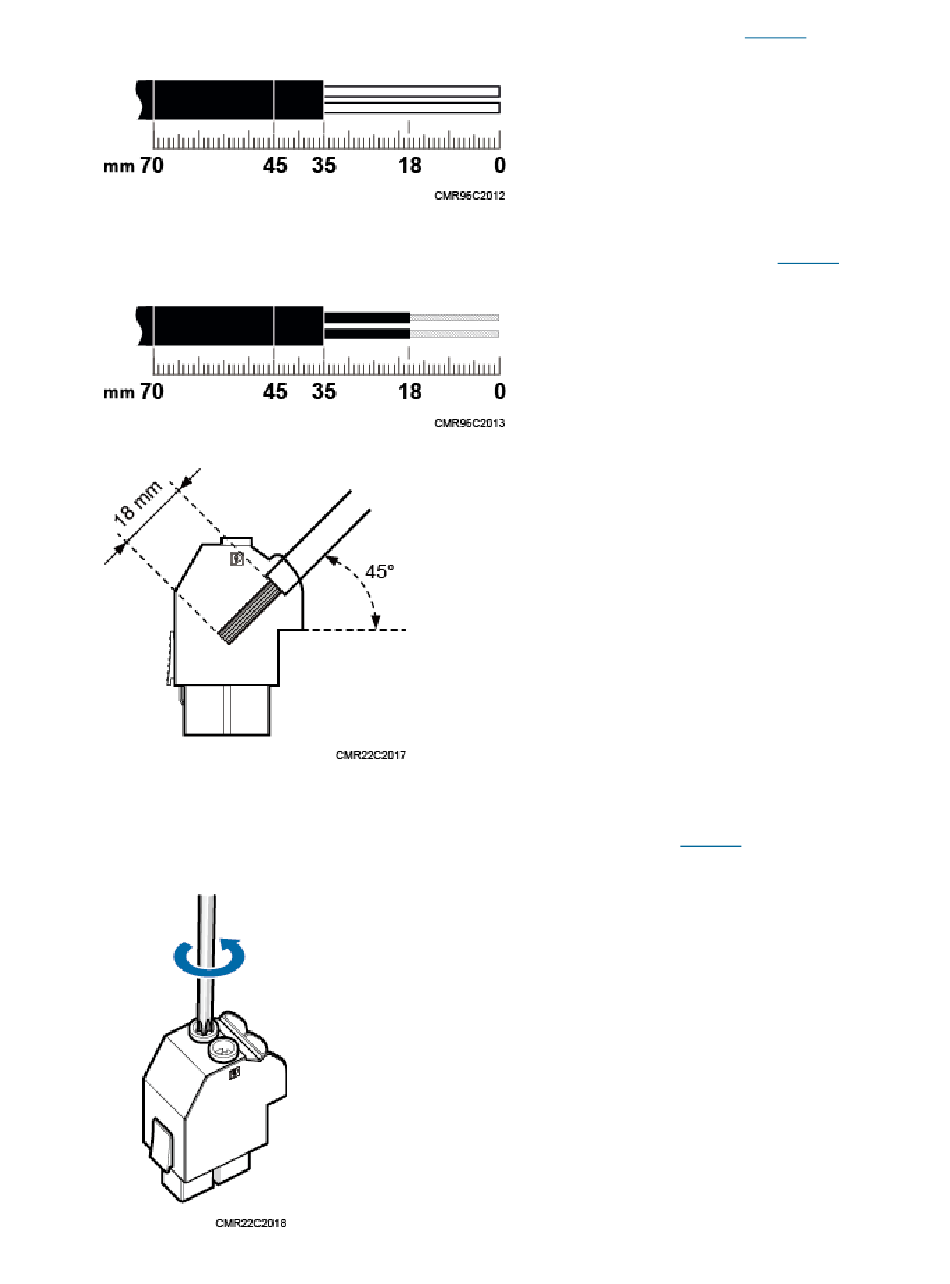

Figure 3 Stripping the specified length of sheath
3. Strip a specified length of sheath off each core wire. The length must be consistent with the
length of the notch in the female fast connector(Pressfit Type), as shown in
Figure 4 Stripping the sheath off each core wire
Figure 5 Matched length
4. Add a female fast connector (pressfit type) to two core wires.
a. Loosen the screws using a Phillips screwdriver, as shown in
Figure 6 Loosening screws
.
