Installing The Rru Onto The Main Brackets - Huawei RRU5909 Installation Manual

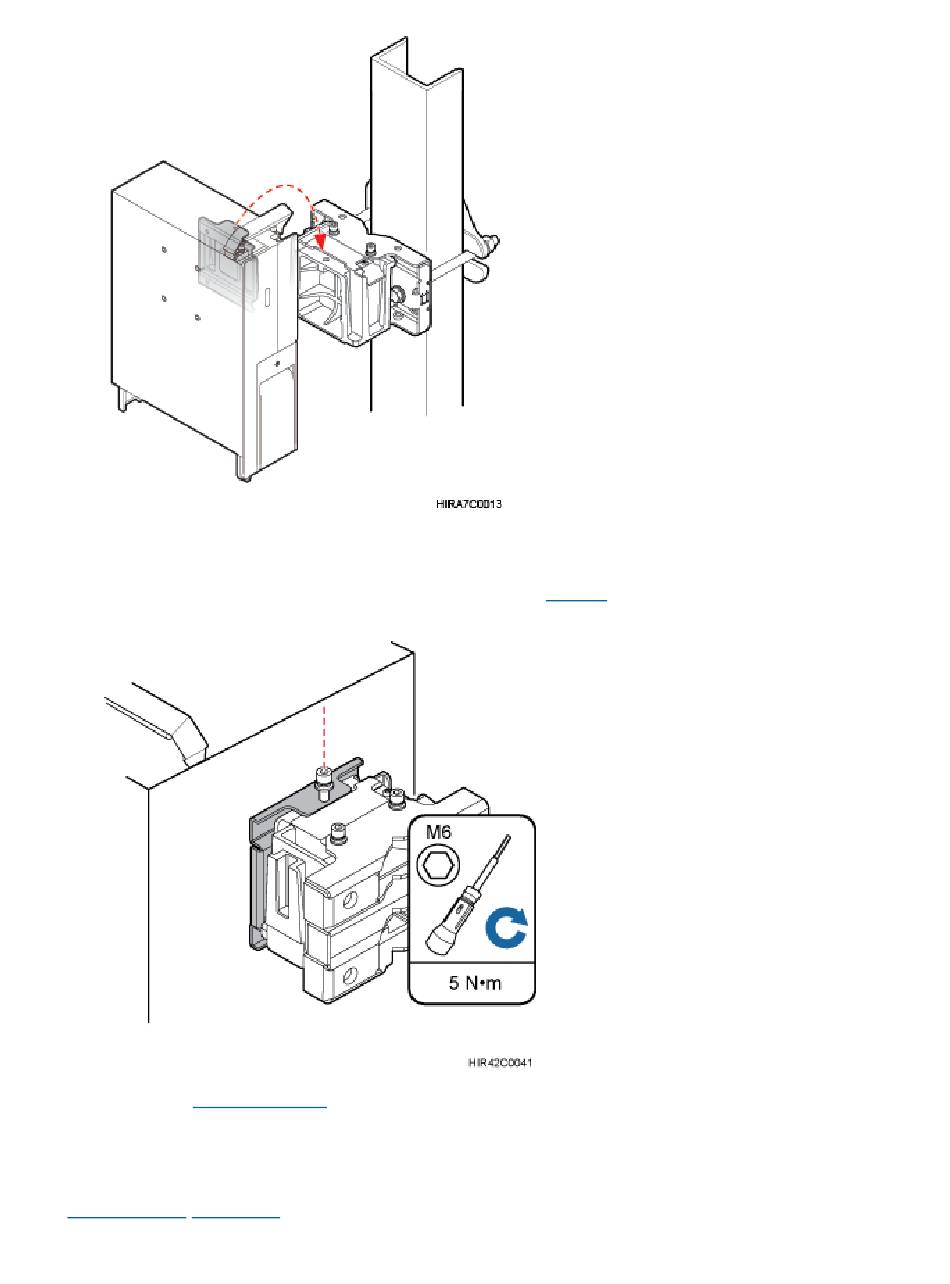

Figure 6 Installing the RRU onto the main brackets
6. Use an inner hexagon torque screwdriver to tighten the captive screw into the holes on the top
of the attachment plate and main bracket to 5 N·m (44.25 lbf·in.) so that the attachment plate
and main bracket are firmly secured, as shown in
Figure 7 Securing the captive screw into the connection hole
Parent Topic:
Installing the RRU
