Installing An Rru Rf Jumper; Correct Position Of An Ot Terminal - Huawei RRU5909 Installation Manual

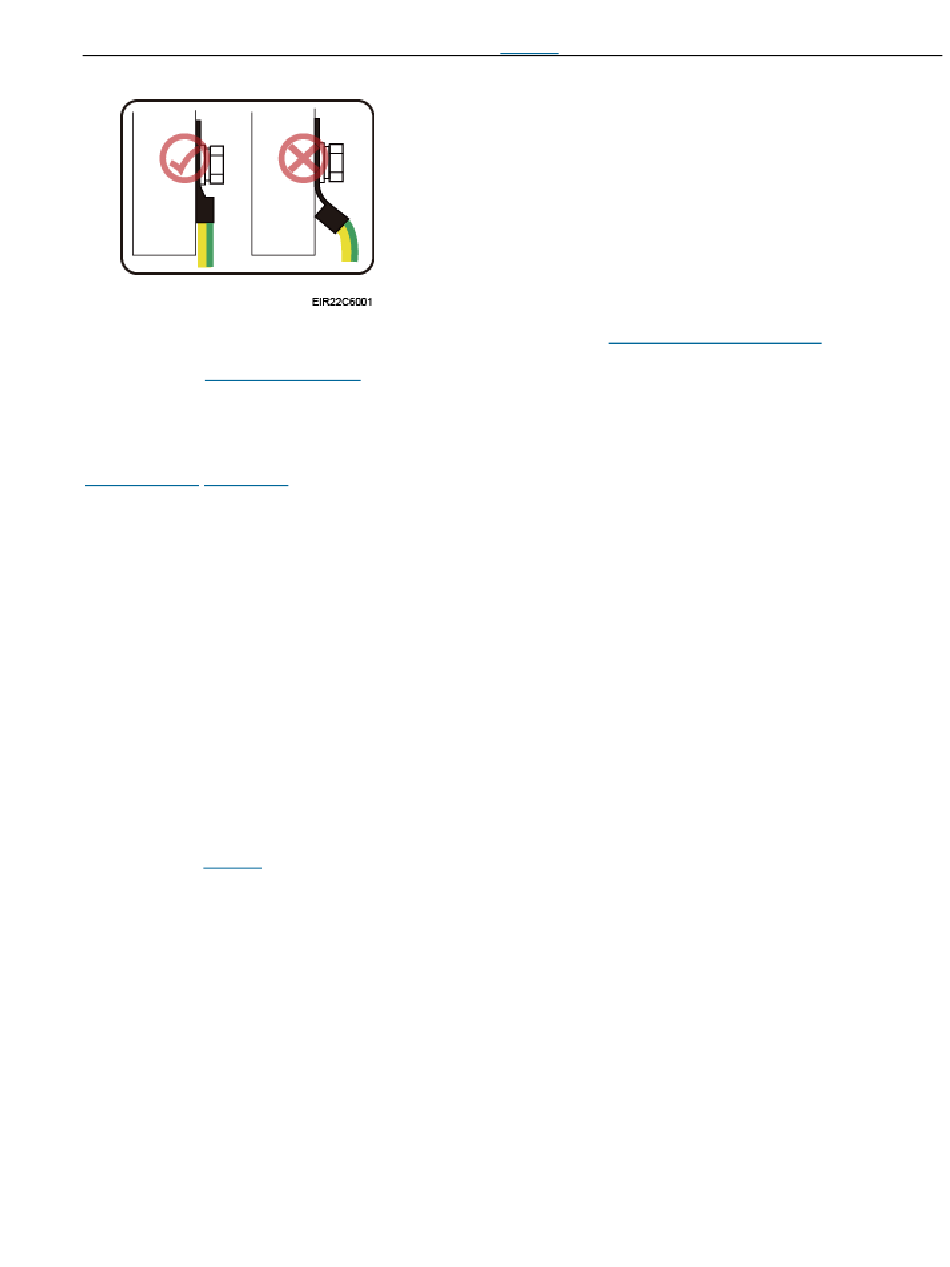

Crimp OT terminals in correct positions, as shown in
Figure 2 Correct position of an OT terminal
3. Label the installed cables according to the instructions in
Parent Topic:
Installing RRU Cables
Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >

7.2.2.8.6 Installing an RRU RF Jumper

This section describes the procedure for installing an
Context
For details about connections between RRU ports and antenna ports, see the RF cable connection
section for the corresponding RRU in RRU Hardware Description.
Procedure
1. Connect the 4.3-10 straight male connector on the RRU RF jumper to the antenna port, and use
a torque wrench to tighten the connector to 5 N·m (44.25 lbf·in.) to 15 N·m (132.74 lbf·in.), as
shown in
Figure 1
.
.
Figure 2
Attaching a Cable-Tying Label
RRU RF jumper.
.
