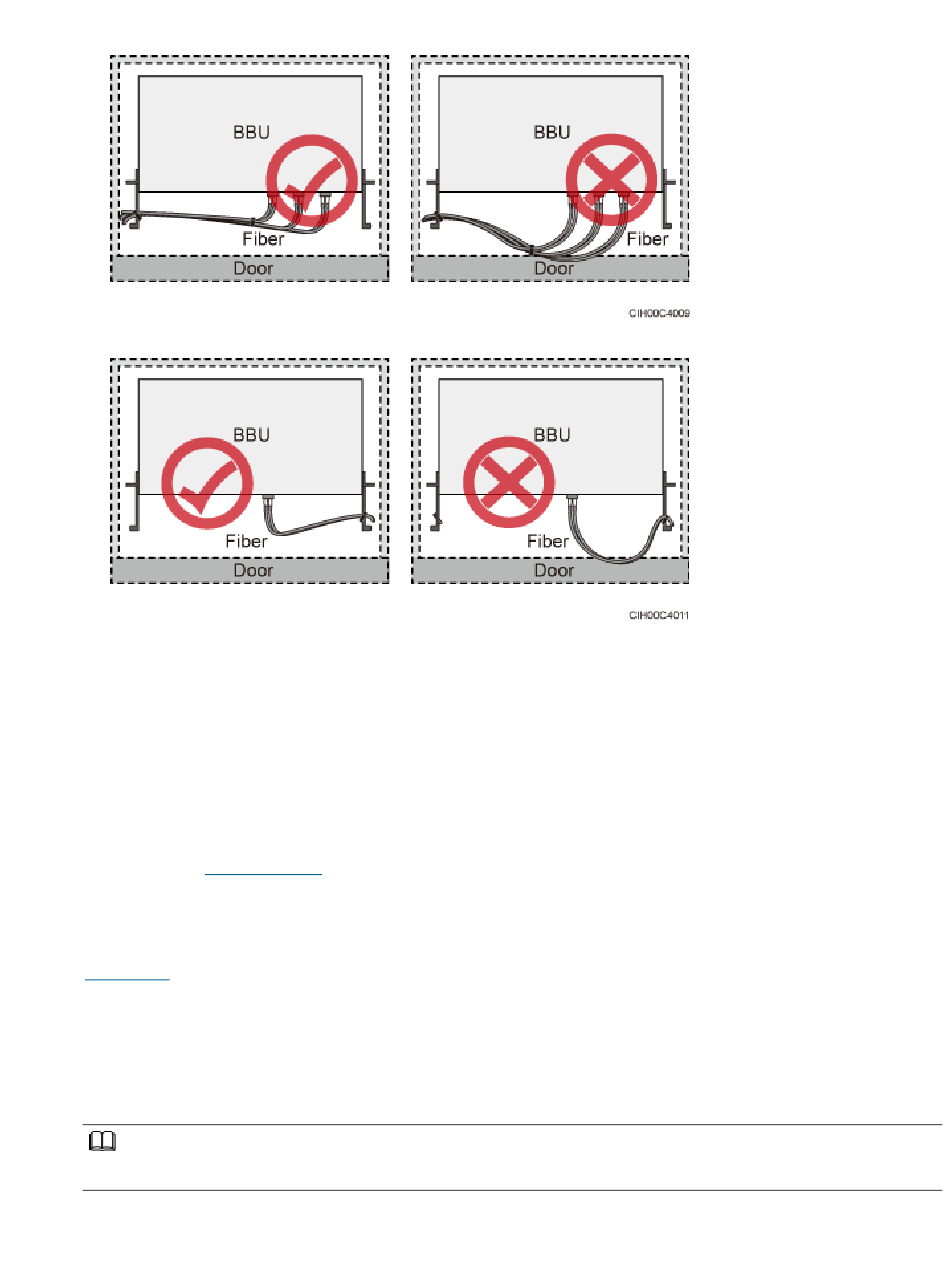

Figure 7 CPRI fiber optic cables routed in the cabinet (2)
Figure 8 FE/GE fiber optic cables routed in the cabinet
•
After routing a fiber optic cable onto the platform on a tower, route it along the shortest path to
the rails surrounding the platform, and route it along the inside of the rails.
•
After routing a fiber optic cable close to the equipment on a tower, use clips to secure the fiber
optic cable onto a pole or the rails surrounding the platform. Ensure that there is no excessively
long distance between the equipment and the position where the cable is secured.
•
Coil the excess of the fiber optic cables near the equipment on the tower before securing the
cables on the tower.
