Installing The Attachment Plate Onto The Rear Of The Rru - Huawei RRU5909 Installation Manual

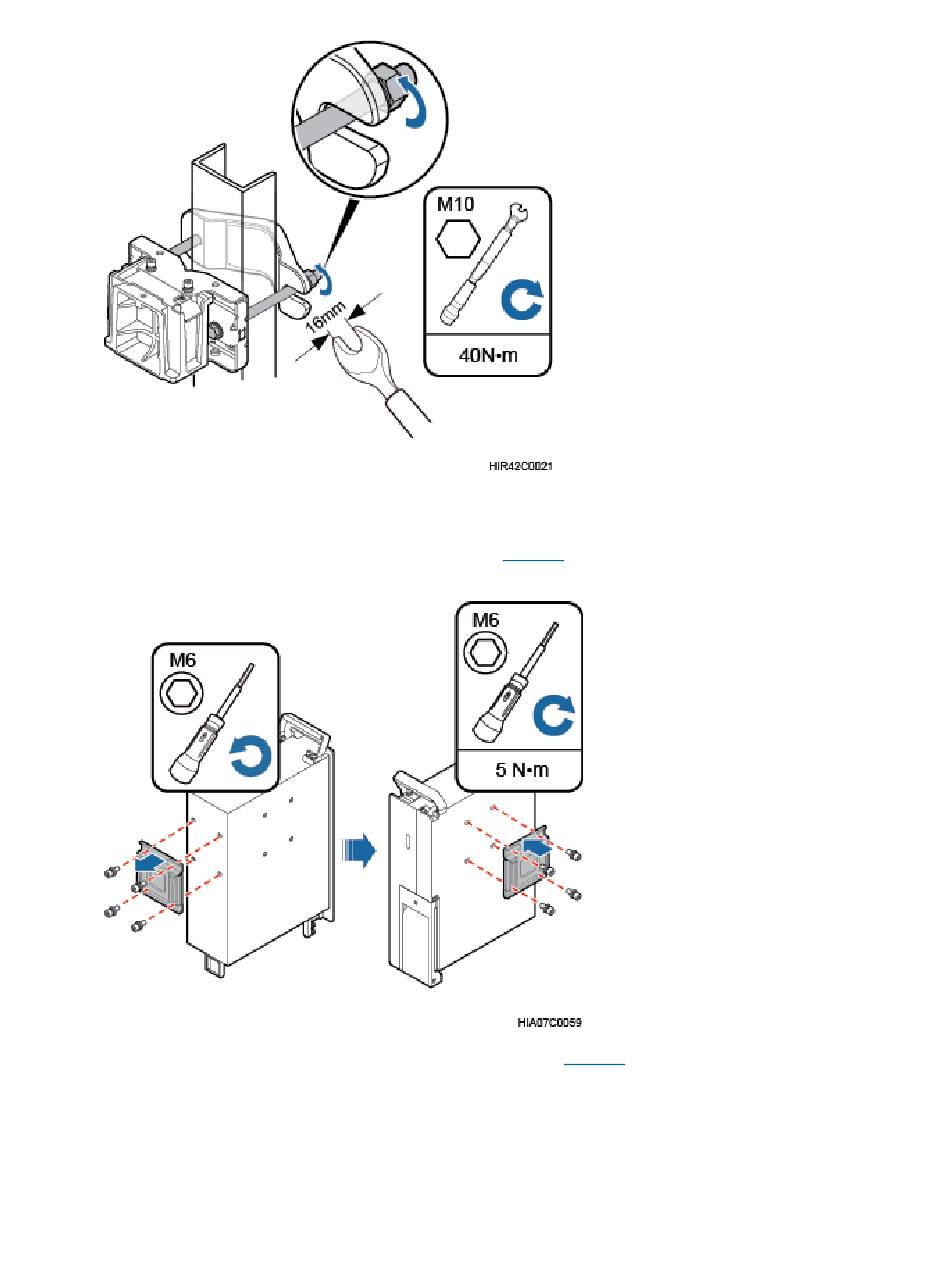

Figure 4 Securing the RRU mounting kits
4. Use an inner hexagon torque screwdriver to remove the attachment plate from one side of the
RRU, reinstall the attachment plate onto the rear of the RRU, and tighten the four stainless
screws to 5 N·m (44.25 lbf·in.), as shown in
Figure 5 Installing the attachment plate onto the rear of the RRU
5. Install the RRU onto the main bracket, as shown in
.
Figure 5
.
Figure 6
