Control Modes; One Performer (Static, Manual); Multiple Performers (Master/Slave Control) - SHOWTEC Performer Profile IP Q4 Manual

Performer Profile IP Q4

Control Modes

There are 4 modes:

One Performer (Static, Manual)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Phantom is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 17–19 for more information about Static and Manual mode.

Multiple Performers (Master/Slave control)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Performer.
The pins:
04) Link the units as shown in Fig. 10. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX signal cable. Repeat this process to link the second, third and fourth units.
You can use the same functions on the master device as described on pages 17–19 (Static or
Manual mode). This means that you can set your desired operation mode on the master device
and all slave devices will react the same as the master device.
Multiple Performers (Master/Slave control)
Order code: 33111
● Static
● Manual (Custom Programs)
● Master/Slave
● DMX-512/RDM (8CH, 9CH, 12CH, 17CH)
01) Earth
02) Signal -
03) Signal +
11

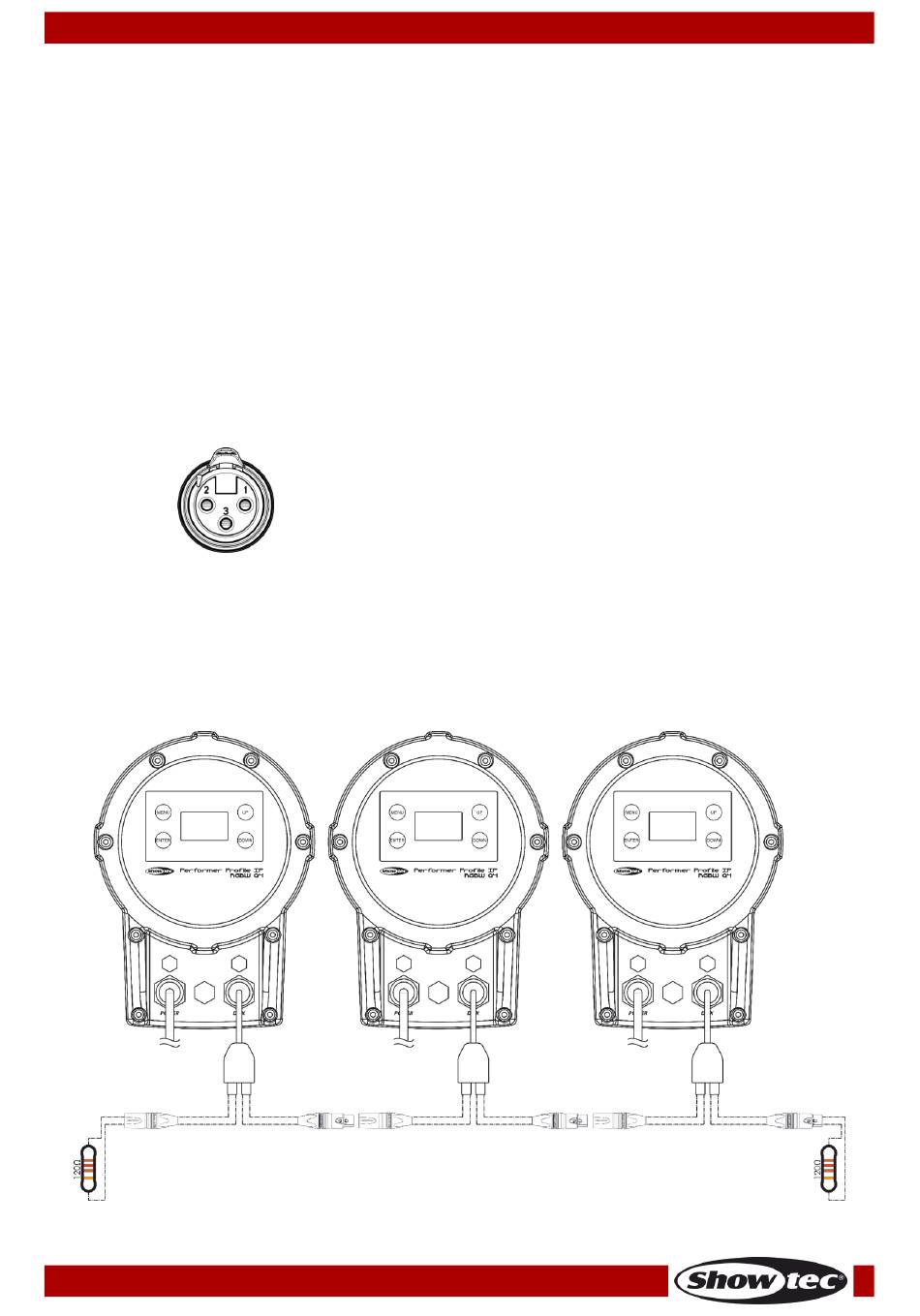

Fig. 10
