- Page 1 MANUAL ENGLISH Performer Profile IP Q4 Order code: 33111 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer Profile IP Q4 Table of contents Warning ........................................2 Safety Instructions ....................................2 Operating Determinations ................................4 Rigging ........................................ 4 Connection with the mains ................................5 Return Procedure ....................................6 Claims ......................................... 6 Description of the device ..................................7 Overview ...................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Performer Profile IP Q4 ● Gobo holder with a glass gobo ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Performer Profile IP Q4 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 0,8 meter. -
Page 6: Connection With The Mains
Performer Profile IP Q4 The Performer can be mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Performer Profile IP Q4 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

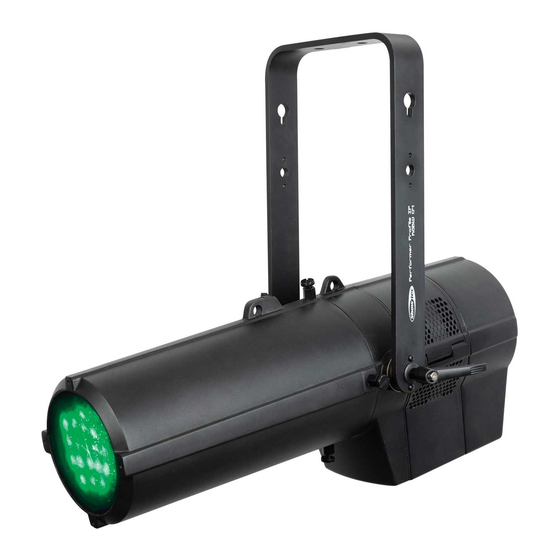

Performer Profile IP Q4 Description of the device Features The Showtec Performer Profile IP Q4 is an IP-rated theater spotlight fixture with high output and great effects. ● Input voltage: 110–240 V AC, 50/60 Hz ● Power consumption: 300W@FO ●... -
Page 9: Backside
Connect the included True1 pro power cable. Installation Remove all packing materials from the Performer Profile IP Q4. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Gobo Holder Installation
Performer Profile IP Q4 Gobo Holder Installation 01) Loosen the 4 cover mounting screws (Fig. 03) and remove the cover (Fig. 04). Fig. 03 Fig. 04 02) Slide the gobo holder into the slot (Fig. 05) until it is locked in position (Fig. 06). -
Page 11: Setup And Operation
Performer Profile IP Q4 Setup and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120 V specification product on 230 V power, or vice versa. -
Page 12: Control Modes
Performer Profile IP Q4 Control Modes There are 4 modes: ● Static ● Manual (Custom Programs) ● Master/Slave ● DMX-512/RDM (8CH, 9CH, 12CH, 17CH) One Performer (Static, Manual) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 13: Multiple Performers (Dmx Control)
Performer Profile IP Q4 Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing or mount it on flat surface. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 14: Fixture Linking
Performer Profile IP Q4 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Performer Profile IP Q4 The Performer Profile IP Q4 can be operated with controller or without controller in stand-alone mode. Control Panel A) OLED display UP button C) DOWN button D) ENTER button MENU button Fig. 12 DMX Addressing The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first channel with which the Performer will respond to the controller. -
Page 16: Menu Overview
Performer Profile IP Q4 Menu Overview Order code: 33111... -
Page 17: Main Menu Options
Performer Profile IP Q4 Main Menu Options 01) On start-up, the display will show the Showtec logo and, after 15 seconds, the information about the device’s current status: 02) Press the ENTER button. The display will show: 03) To unlock the display and access the main menu, enter the password. -
Page 18: Static
Performer Profile IP Q4 1. Static In this menu you can manually set the dimmer, zoom, focus, gobo and strobe. 01) Press the UP/DOWN buttons to toggle through the following options: ● RED: 0–255, from dark to brightest ● GREEN: 0–255, from dark to brightest ●... -
Page 19: Personality (Dmx Channel Modes)
Performer Profile IP Q4 3. Personality (DMX Channel Modes) In this menu you can set the DMX channel mode (personality). 01) Press the UP/DOWN buttons to select one of the 4 DMX channel modes: ● HSIC: 8-channel mode ● SIMPLE: 9-channel mode ●... - Page 20 Performer Profile IP Q4 02) Press the UP/DOWN buttons to choose one of the 10 custom programs. 03) Press the ENTER button to confirm. Each program can consist of up to 30 customizable scenes. The display will show: 04) Press the UP/DOWN buttons to select the desired scene.
-
Page 21: Play
Performer Profile IP Q4 5.2. Play 01) Press the UP/DOWN buttons to choose PLAY and press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to choose one of the 10 custom programs. -
Page 22: Key (Safety Lock)
Performer Profile IP Q4 6.1. Key (Safety Lock) In this menu you can activate the safety lock. 01) Press the UP/DOWN buttons to toggle between ON and OFF. ● ON: Safety lock is on. The display turns off after 25 seconds of inactivity. Press the UP, DOWN, UP, DOWN buttons, in this order, to unlock SETTING menu. -
Page 23: Pwm
Performer Profile IP Q4 6.4. PWM In this menu you can choose several PWM frequencies.. 01) Press the UP/DOWN buttons to select one of the 6 options. 6.5. DMX Error In this menu, you can determine the behavior of the device in case of a DMX error. -
Page 24: Full Power Cct
Performer Profile IP Q4 05) After a short moment, the display will show: 06) The default factory settings are now restored. 6.7. Full Power CCT In this menu you can set the color temperature. 01) Press the UP/DOWN buttons to choose the desired color temperature. -
Page 25: Wireless
Performer Profile IP Q4 7. Wireless In this menu you can terminate the wireless connection, if you are using wireless DMX. Wireless DMX is not supported by the device by default. For more information, contact your dealer. 01) Press the ENTER button to open the submenu. The display will show: 02) Press the UP/DOWN buttons to choose YES or NO. -
Page 26: Version
Performer Profile IP Q4 8.1. Version In this submenu you can view the current software version. 8.2. RDM In this submenu you can view the device’s RDM settings. 01) Press the UP/DOWN buttons to choose between UID and LABEL. 02) Press the ENTER button to confirm. -
Page 27: Dmx Channels
Performer Profile IP Q4 DMX Channels 8 channels (HSIC) Channel 1 – Dimmer Intensity 0–255 Gradual adjustment, from dark to brightest Channel 2 – Hue CH1 and CH4 must be open 0-255 Gradual adjustment Hue, from 0-100 % Channel 3 – Hue fine... -
Page 28: Channels (Hsic)
Performer Profile IP Q4 160–184 Non-linear dimmer 3 185–209 Non-linear dimmer 4 210–234 Zoom, focus, gobo reset 235–255 Not functional 9 channels (HSIC) Channel 1 – Dimmer Intensity 0–255 Gradual adjustment, from dark to brightest Channel 2 – Red CH1 must be open 0–255... -
Page 29: Channels (Color 8Bit)
Performer Profile IP Q4 12 channels (COLOR 8BIT) Channel 1 – Dimmer Intensity 0–255 Gradual adjustment, from dark to brightest Channel 2 – Red CH1 must be open 0–255 Gradual adjustment Red, from dark to brightest Channel 3 – Green CH1 must be open 0–255... - Page 30 Performer Profile IP Q4 Channel 9 – Focus 0–255 Gradual adjustment focus, from near to far Channel 10 – Strobe CH1-CH5 must be open or CH6 or CH7 must be set between 11-255 No function 10-99 Strobe flash rate, from low to high frequency (0-20 Hz)
-
Page 31: Channels (Mode 16Bit)
Performer Profile IP Q4 17 channels (MODE 16BIT) Channel 1 – Dimmer Intensity 0–255 Gradual adjustment, from dark to brightest Channel 2 – Dimmer Fine 0–255 Fine adjustment Channel 3 – Red CH1 must be open 0–255 Gradual adjustment Red, from dark to brightest Channel 4 –... - Page 32 Performer Profile IP Q4 51-70 3200 K 71-90 3500 K 91-110 4000 K 111-130 4200 K 131-150 4500 K 151-170 5600 K 171-190 6000 K 191-210 6500 K 211-230 7200 K 231-255 8000 K Channel 13 – Zoom 0–255 Gradual adjustment zoom, from small to big Channel 14 –...
-
Page 33: Cleaning
Performer Profile IP Q4 Cleaning Please follow the recommendations when cleaning and inspecting lenses and reflectors: Do not use glass or window type cleaners on lenses (glass or polymer) or reflectors. Do not use abrasive materials such as steel wool. -
Page 34: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Performer Profile IP Q4 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 35 Performer Profile IP Q4 Problem Probable cause(s) Solution ● Check if power is switched on One or more No power to the fixture. and cables are plugged in. fixtures do not function at all. ● Return the device to your Internal fuse blown.
-
Page 36: Product Specifications
Performer Profile IP Q4 Product Specifications Model: Showtec Performer Profile IP Q4 Input voltage: 110–240 V AC, 50/60 Hz Power consumption: 300W @FO DMX linking: 30 pcs Dimensions: 650 x 340 x 575 mm (LxWxH) Weight: 13,74 kg Operating and Programming:... -
Page 37: Dimensions
Performer Profile IP Q4 Dimensions Order code: 33111... - Page 38 Performer Profile IP Q4 Order code: 33111...
- Page 39 Performer Profile IP Q4 Order code: 33111...
- Page 40 ©2019 Showtec...
